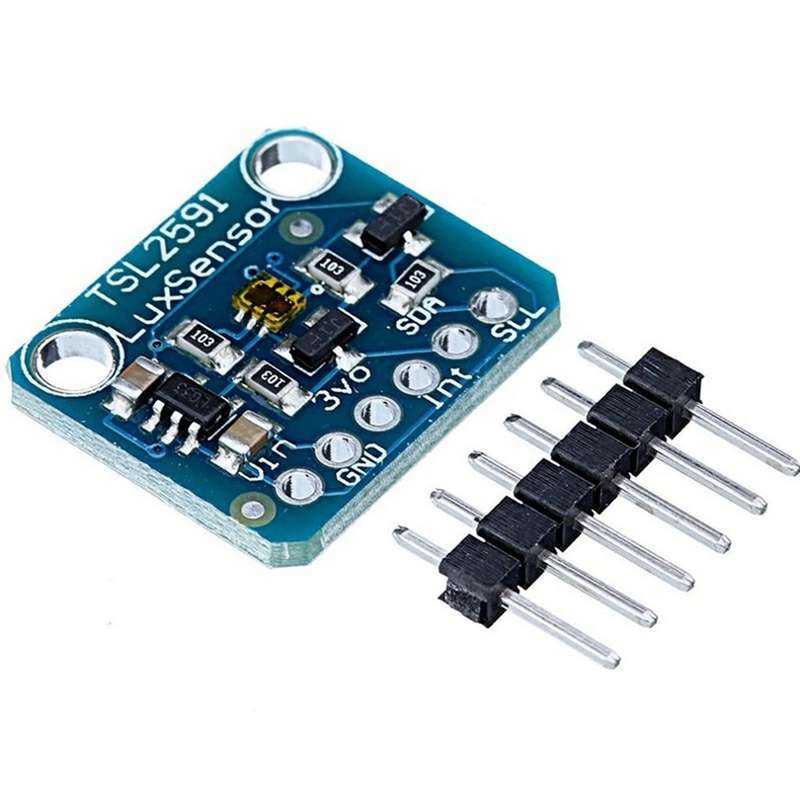

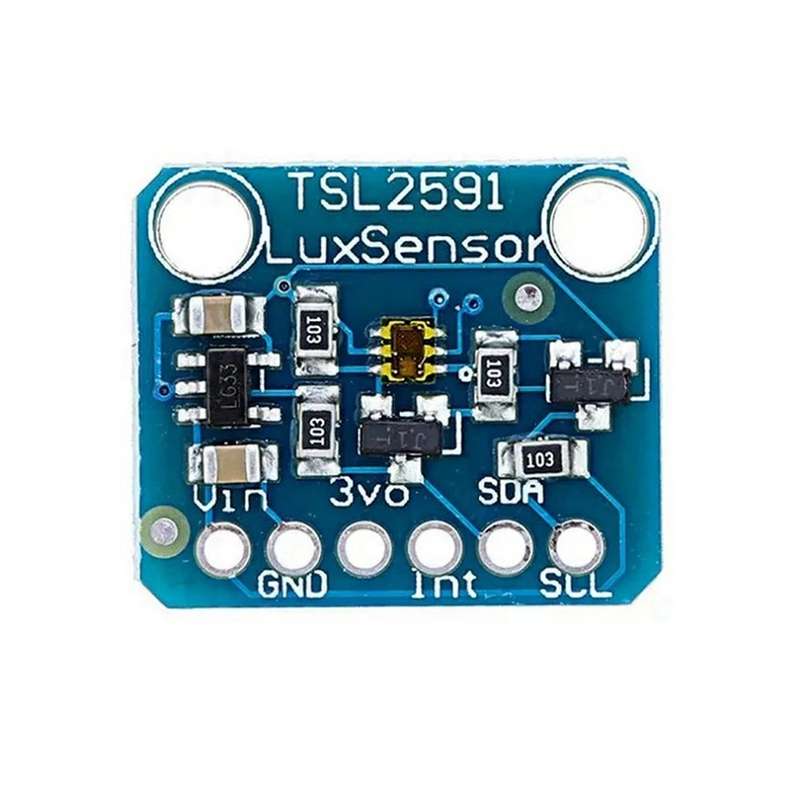

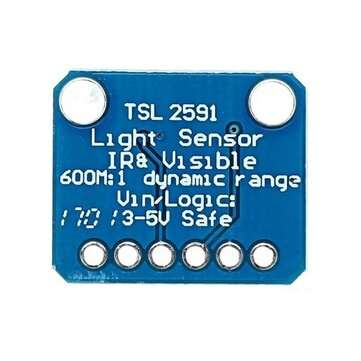

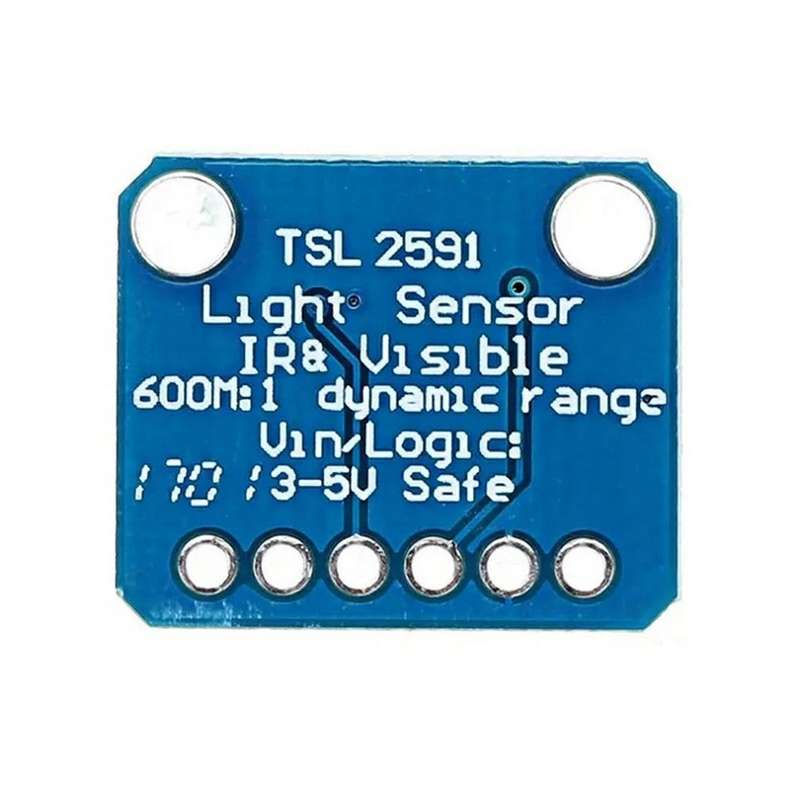

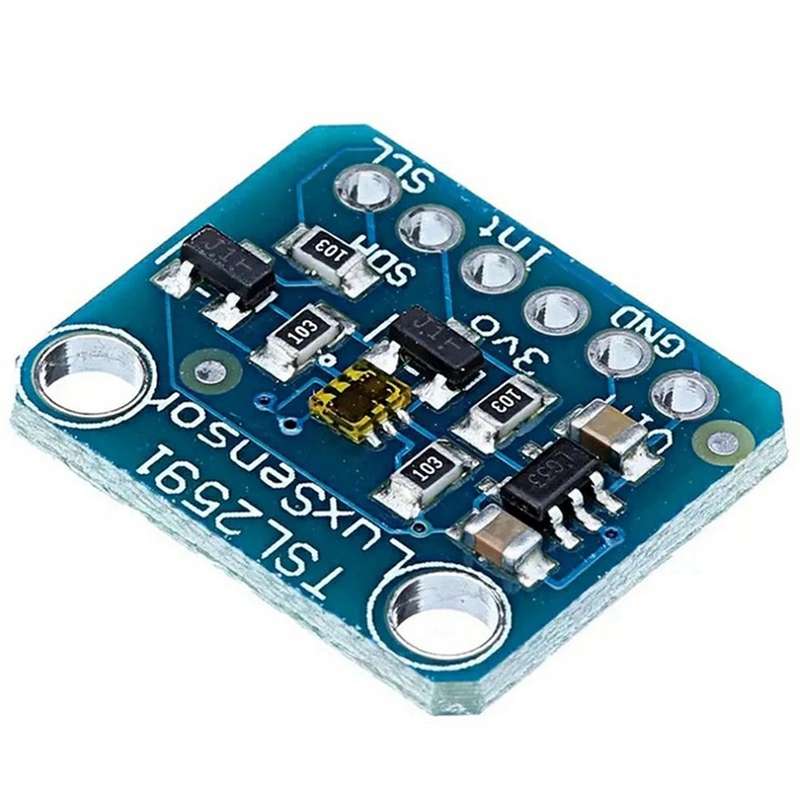

TSL2591 5V Digital Light Sensor Module High Dynamic Range Lux IR Infrared Full Spectrum Diodes Detec

20 available / new

R507.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3512

93.41 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643390347

Description:
The TSL2591 light sensor is an advanced digital light sensor, suitable for use in various light conditions. Compared to low-cost cadmium sulfide cells, this sensor is more accurate, allowing precise lux calculations and configurable for different gain/timing ranges, with a 188 DULUX light detection range up to 88,000 lux at a flying distance.It contains both infrared and full-spectrum diodes, which can measure infrared, full-spectrum or human visible light respectively. The TSL2591 light sensor has a huge dynamic range of 600 million:Please note that compared to the previous TSL2561, the 7-bit I2C address (0x29) of the sensor cannot be changed. The board has a voltage regulator and can work at a voltage of 3.3V-5.0V. The built-in ADC device can take advantage of this with any microcontroller, even if it does not have an analog input. Actively sense 0.4mA, less than 5A in power-down mode. The device current consumption is extremely low, so it is very suitable for low-power data recording systems. Product parameters:

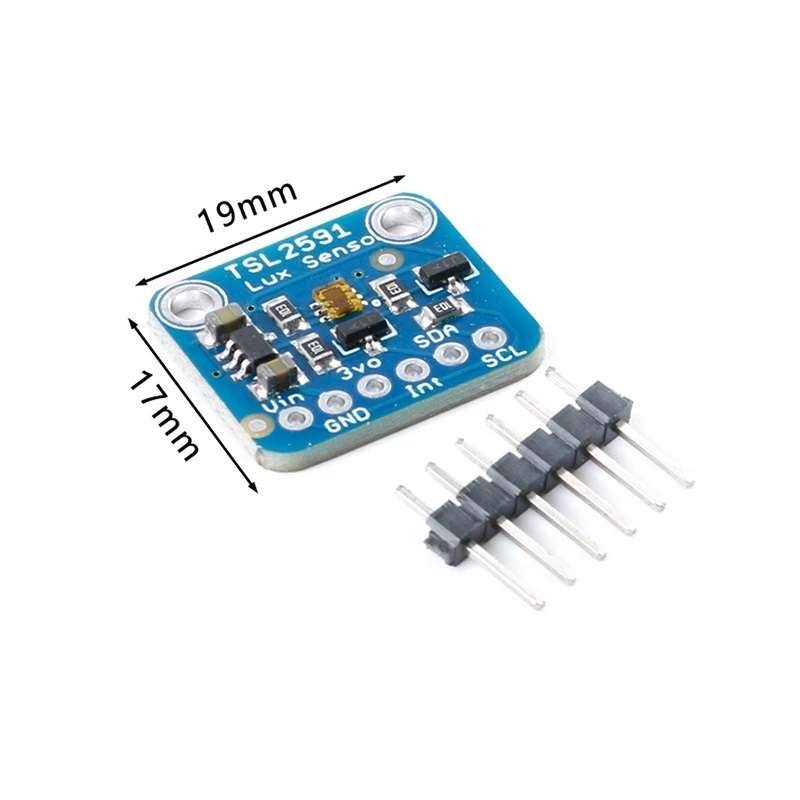

Interface type: IIC Voltage range: 3.3V-5V Dynamic range count: 1 600,000,000 Lux range: 188 uLux sensitivity, up to 88,000 lumens input measurement. Temperature range: -30ﾣC~80ﾣC Dimensions: 1 9mm x 16mm x 1mm Pin definition: VIN: Power + GND: ground SCL: I2C serial clock line SDA: I2C serial data line INT: interrupt pin
Package included:
1 x Light Sensor Module

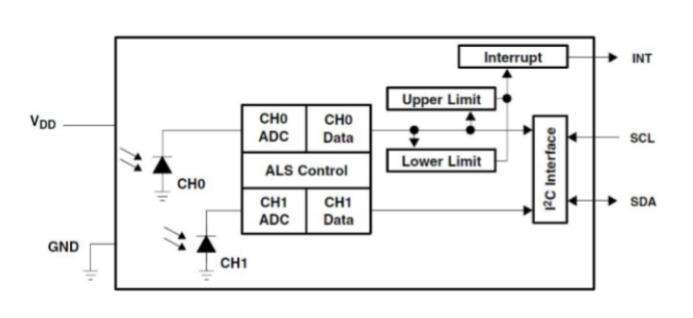

Function diagram:
