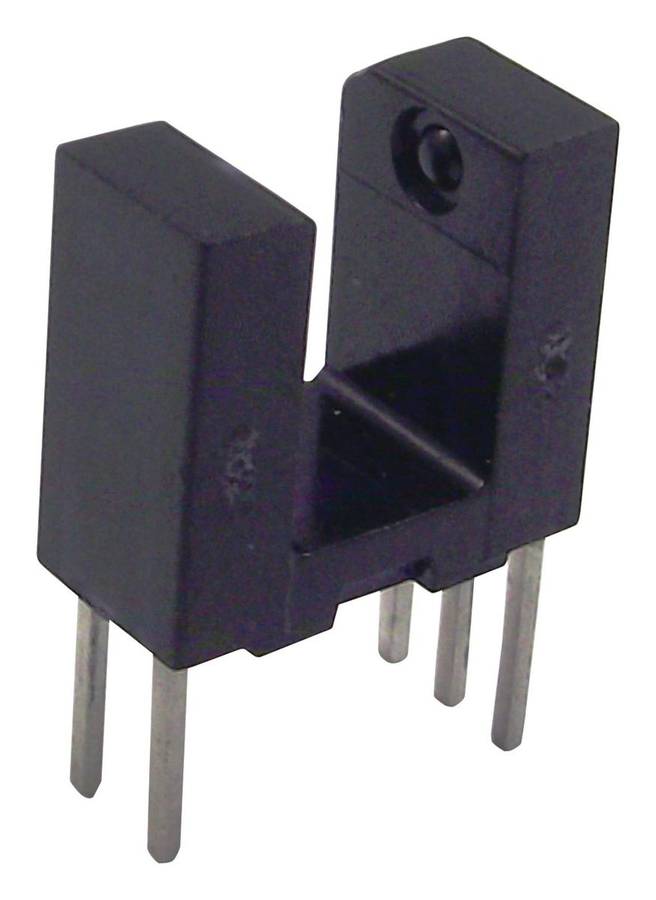

Tt Electronics (OPB625) Transmissive Photo Interrupter, 10K Pullup

Transmissive Photo Interrupter, 10K Pullup, Through Hole, 4.826 mm, 1.52 mm, 10mA, 3 VProduct OverviewThe OPB625 is a Photologic® Slotted Optical Switch with 10K pull-up (buffered orinverted) output. This printed circuit board mounting switch consists of an890nm, infrared light emitting diode (LED) and a monolithic integrated circuitthat incorporates a photodiode, a linear amplifier and a Schmitt trigger on asingle silicon chip. Device is also TTI/LSTTL compatible and can drive up to 10TTL loads. Suitable for mechanical switch replacement, speed indication(tachometer), mechanical limit indication and edge sensing.Non-contact switchingEnhanced signal to noise ratio240mW Power dissipation-40 to 100°C Operating temperature rangeApplicationsSensing & Instrumentation, IndustrialProduct InformationSensor Output: 10K PullupSensor Mounting: Through HoleGap Width: 4.826mmAperture Width: 1.52mmForward Current If: 10mAReverse Voltage Vr: 3VForward Voltage: 1.6VProduct Range: OPB625 Series
