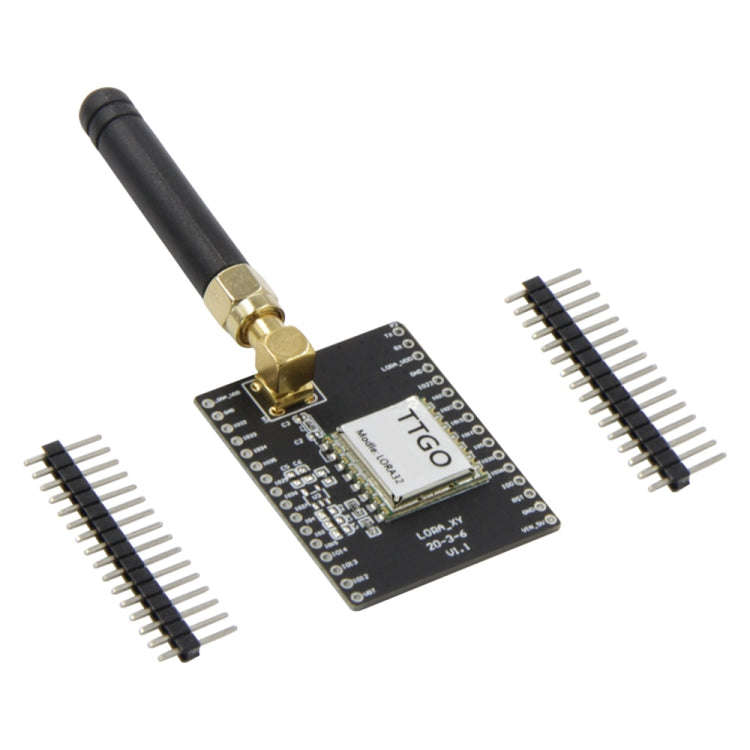

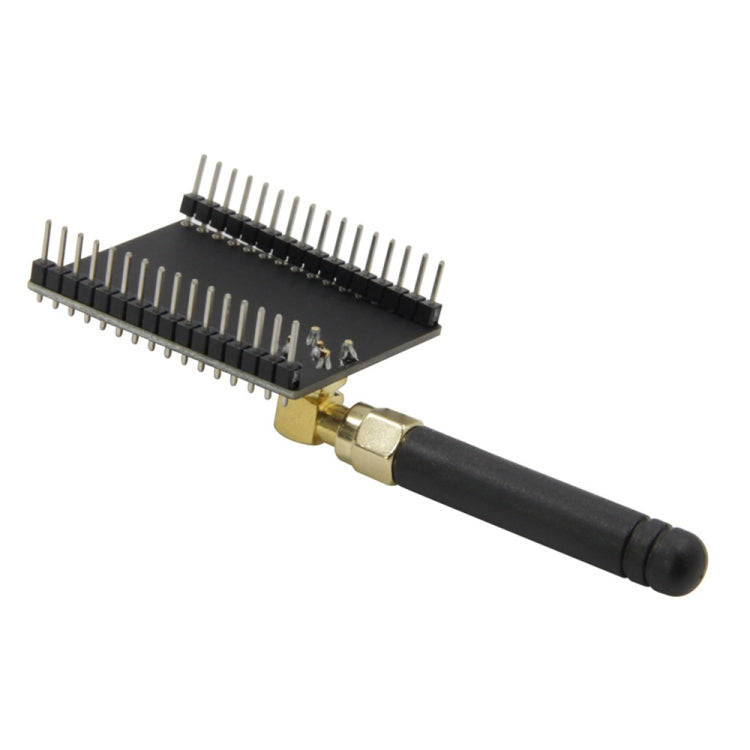

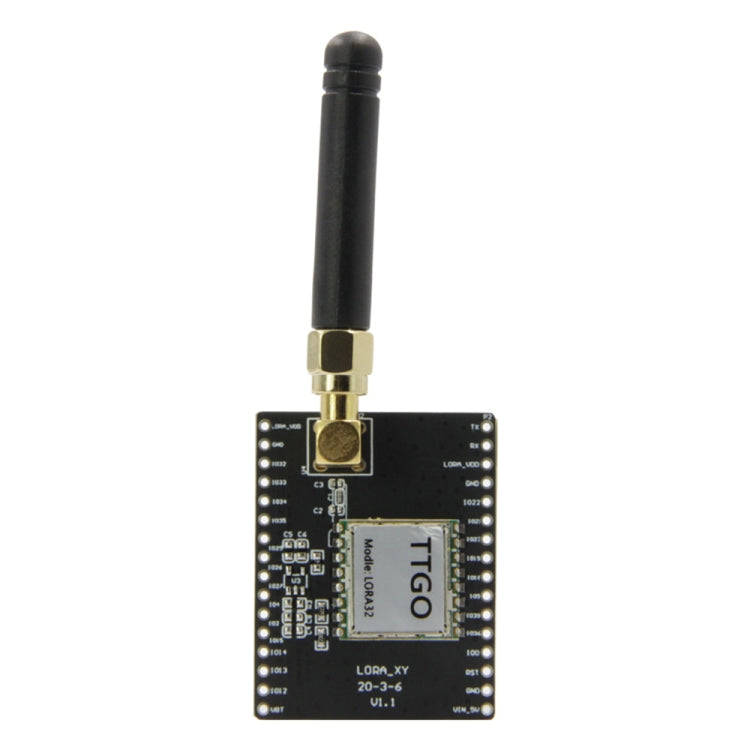

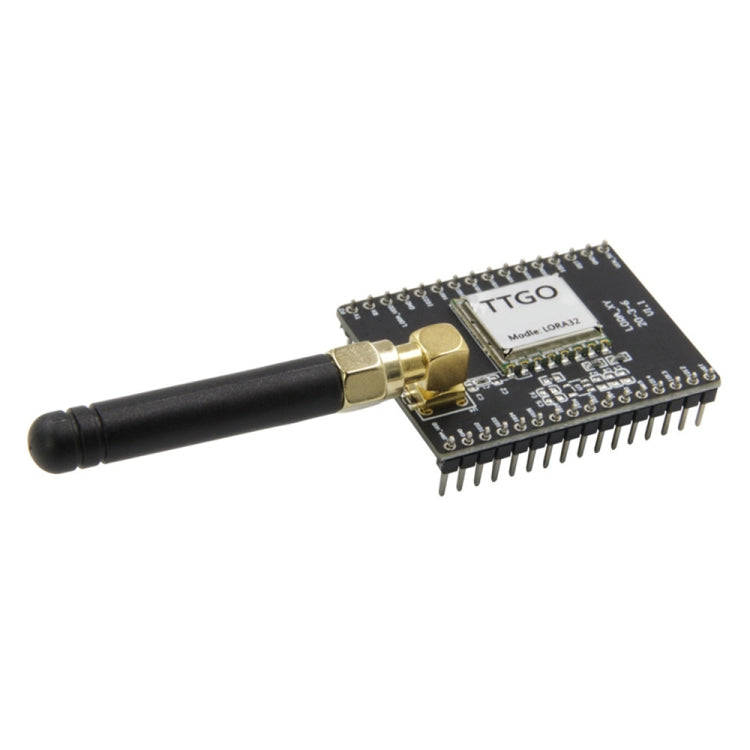

TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board
TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board

TTGO 915 MHz Shield ESP32 WiFi Bluetooth 18560 Battery Holder Solar Charge Module Development Board

New 10 available
R606.62
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
DIY6150
Bob Shop ID
602482914
Product Description Hardware Specifications:
1. Main chip: ESP32
2. Module: ESP32-WROVER-B,915 MHz Shield
3. Interface:USB,SD Card,Solar Input interface
4. Flash Memory: 4M Flash / 8M PSRAM
5. Button: Reset,Power switch
6. USB to TTL: CP2104
7. Car Clock: 40MHz
8. SIM Card Size: Nano SIM Card
9. SIM Antenna
10. GPS Antenna
11. Operating Temperature Range: -40-85 degrees
12. Product Size: 111mm x 37mm x 20mm
13. Product Weight: 50g

Power Specifications:
1. Working Voltage: 5V input
2. Solar input voltage range???4.4-6V
3. Working Curent: About 200mA
4. Charging Current: 780mA
5. Battery Model: 18650
6. Battery Holder Model: 18650 battery holder
7. JST Connector: 2pin 2mm
8. USB: TYPE-C 3.0

Wi-Fi:
1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval
3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m

Bluetooth:
1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard
2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
3. Audio Frequency : CVSD&SBC audio frequency

Software Specification:
1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P
2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type : AES/RSA/ECC/SHA
4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware???
5. Software Development : Support cloud server development /SDK for user firmware development
6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP
8. OS : FreeRTOS

Version update function:
1. The battery positive and negative poles are connected to the wrong protection, overcharge and over discharge protection
2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping
3. Replacement of ordinary charging IC with solar charging IC
