TTGO ESP32-S WiFi Wireless Module Type-C Connector TF Card Slot Development Board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
International
Product code:
DIY5123
Bob Shop ID:
602483024
Hardware specifications
1. Chipset: ESPRESSIF-ESP32-S2
2. Flash: 4MB
3. Static SRAM: 8MB
4. SRAM: 520 kB SRAM
5. Buttons: power switch, base, start, custom
6. External device: TF card
7. USB to TTL: CH340C

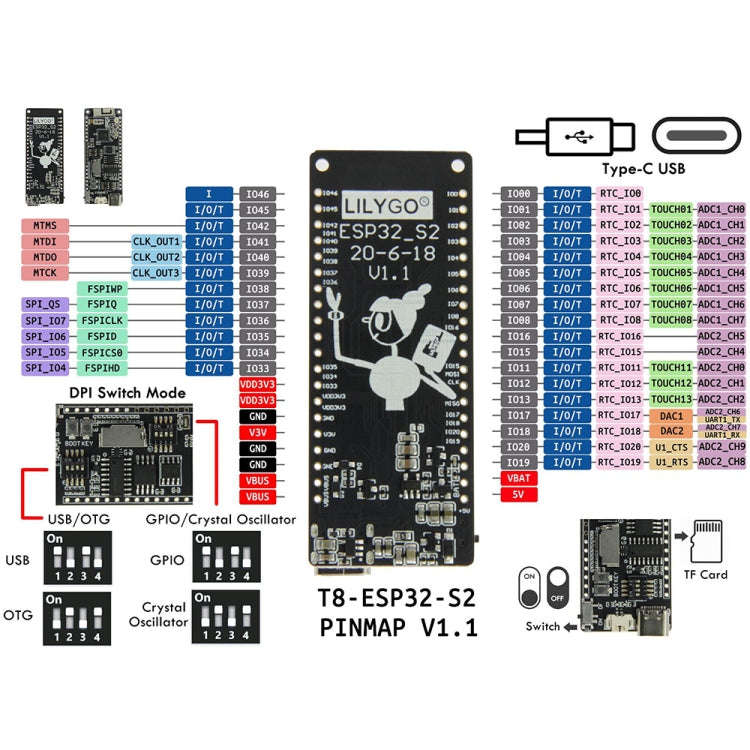

8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC
9. Vehicle clock: 32.768KHz crystal oscillator
10. Working voltage: 2.7V to 3.6V
11. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius

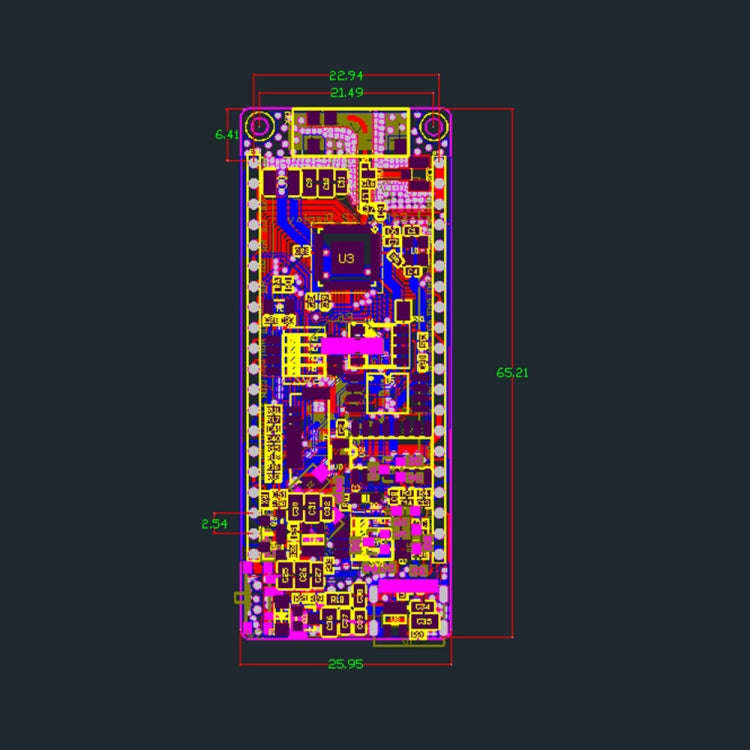

12. Dimensions: 63 x 30 x 6.6mm
13. Weight: 7g
Power Specifications
1. Power input: USB 5V / 1A
2. Charging current: 500 mA
3. Battery input: 3.7-4.2V
4. JST connector: 2-pin 1.25mm
5. USB: Type C USB
WiFi
1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (esp32 chip)
2. Protocol: 802.11 b / g / n (802.11n, speed up to 150Mbps, A-MPDU and A-MSDU aggregation, support 0.4uS guard interval
3. Frequency range: 2.4GHz~2.5GHz (2400M`2483.5M)
4. Transmit power: 22dBm
5. Communication distance: 300m
