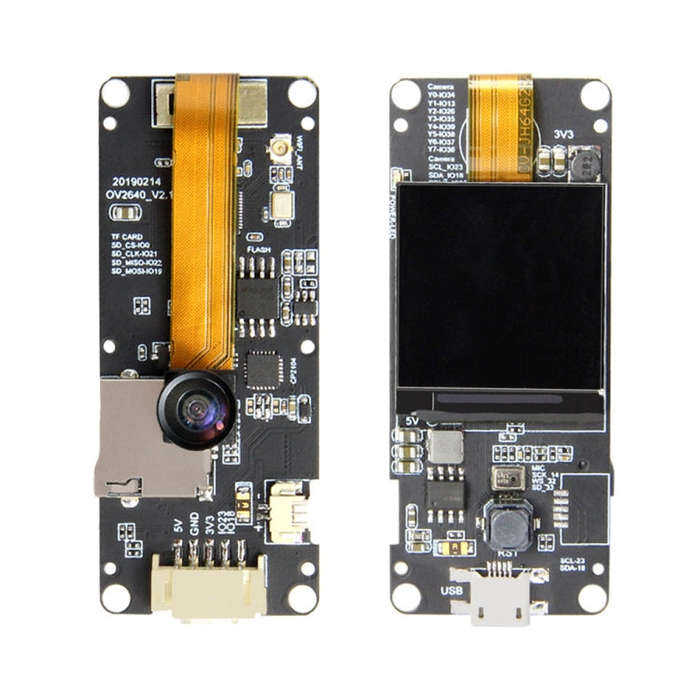

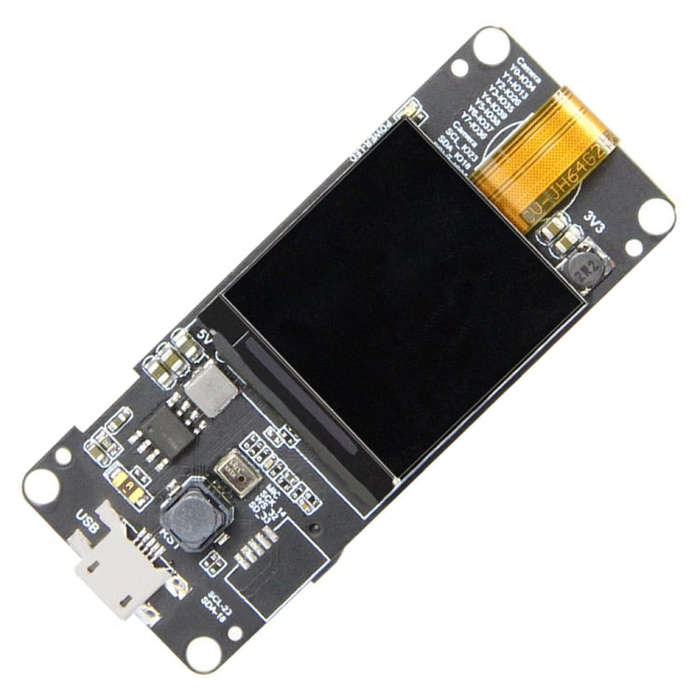

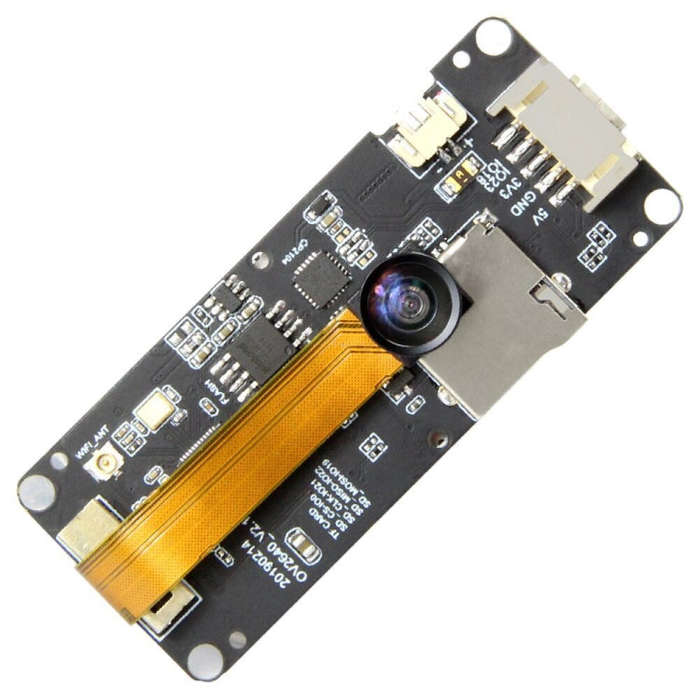

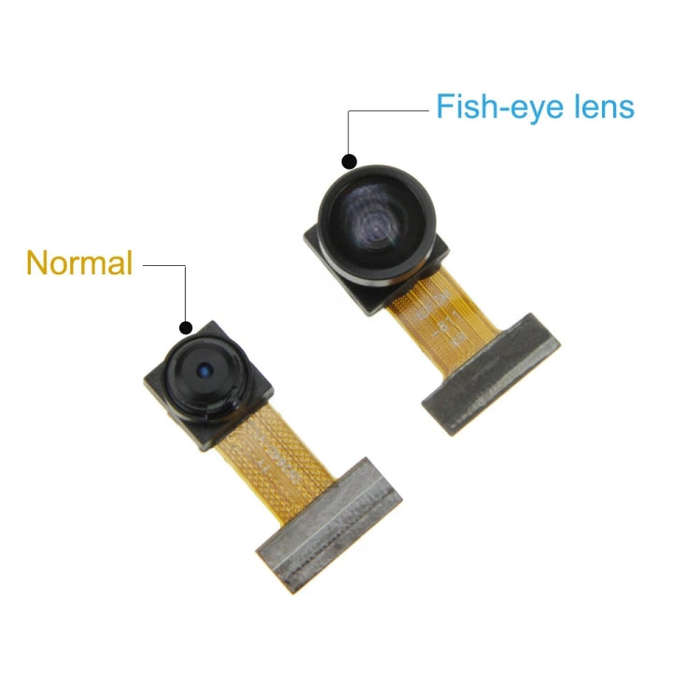

TTGO T-Camera Plus Fish-eye Lens ESP32-DOWDQ6 8MB SPRAM Camera Module OV2640 1.3 inch Display Rea...
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DIY5130
Bob Shop ID
602482965
Hardware Specifications
1. Chipset: ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
2. FLASH: QSPI flash/SRAM, up to 4 x 16 MB
3. SRAM: 520 kB SRAM + 8MBytes External SPRAM
4. KEY: Reset
5. Dispaly: IPS Panel ST7789/1.3 Inch
6. Power indicator lamp: Red
7. USB to TTL: CP2104
8. Camera: OV2640 2.0 Megapixel
9. On-board clock: 40MHz crystal oscillator
10. Working voltage: 2.3V-3.6V
11. Working current: About 160mA
12. Working temperature range: -40 degree C ~ +85 degree C
13. Size: 69.13 x 28.41 x 8.45mm
14. Mic: MSM261S4030H0
15. SD card: Integrated external SD card slot
Power management Chip IP5306
1. Power Supply: USB 5V/1A
2. Charging current: 1A
3. Battery: 3.7V lithium battery(not included)
WiFi
1. Standard: FCC/CE/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n/e/i (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4uS Protection interval
3. Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet bluetooth v4.2BR/EDR and BLE standard
2. Radio frequency: With -98dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH
3. Audio frequency: CVSD&SBC audio frequency
Software specification
1. WiFi Mode: Station/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type: AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA (Through network/host to download and write firmware)
5. Software Development: Support cloud server development / SDK for user firmware development
6. Networking protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User Configuration: AT + Instruction set, cloud server, android/iOS app
8. OS: FreeRT OS
1. Chipset: ESPRESSIF-ESP32-DOWDQ6 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
2. FLASH: QSPI flash/SRAM, up to 4 x 16 MB
3. SRAM: 520 kB SRAM + 8MBytes External SPRAM
4. KEY: Reset
5. Dispaly: IPS Panel ST7789/1.3 Inch
6. Power indicator lamp: Red
7. USB to TTL: CP2104
8. Camera: OV2640 2.0 Megapixel
9. On-board clock: 40MHz crystal oscillator
10. Working voltage: 2.3V-3.6V
11. Working current: About 160mA
12. Working temperature range: -40 degree C ~ +85 degree C
13. Size: 69.13 x 28.41 x 8.45mm
14. Mic: MSM261S4030H0
15. SD card: Integrated external SD card slot
Power management Chip IP5306
1. Power Supply: USB 5V/1A
2. Charging current: 1A
3. Battery: 3.7V lithium battery(not included)
WiFi
1. Standard: FCC/CE/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n/e/i (802.11n, speed up to150Mbps) A-MPDU and A-MSDU polymerization, support 0.4uS Protection interval
3. Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet bluetooth v4.2BR/EDR and BLE standard
2. Radio frequency: With -98dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH
3. Audio frequency: CVSD&SBC audio frequency
Software specification
1. WiFi Mode: Station/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type: AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA (Through network/host to download and write firmware)
5. Software Development: Support cloud server development / SDK for user firmware development
6. Networking protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User Configuration: AT + Instruction set, cloud server, android/iOS app
8. OS: FreeRT OS
