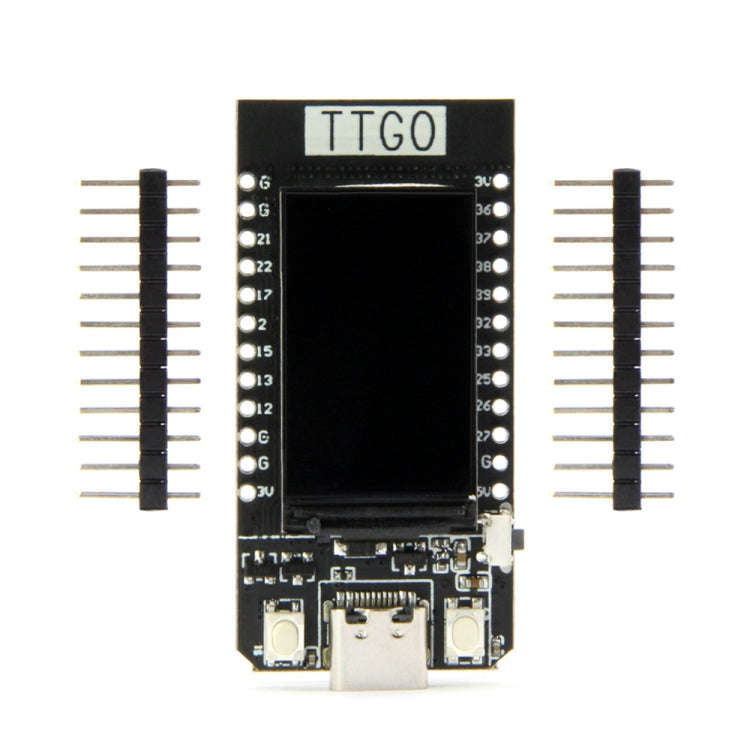

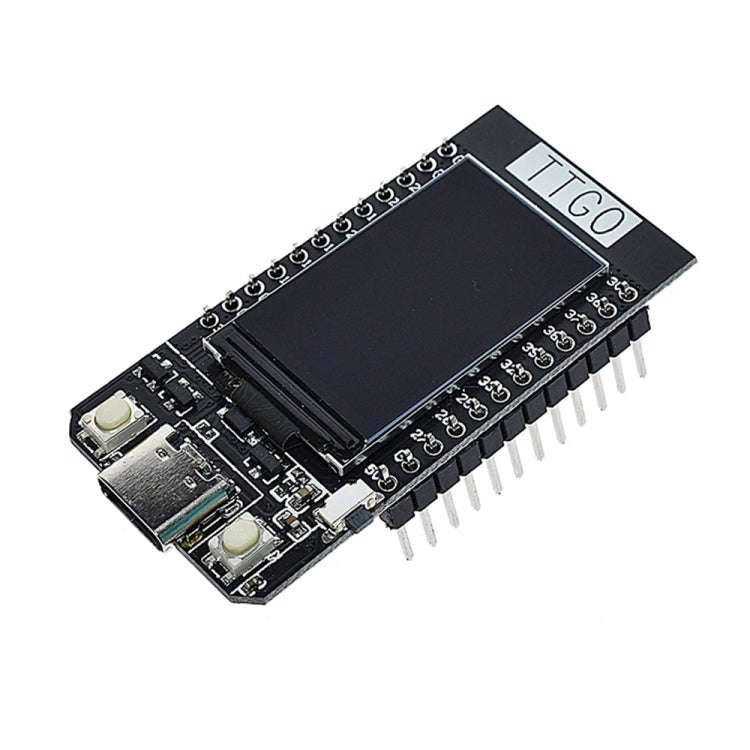

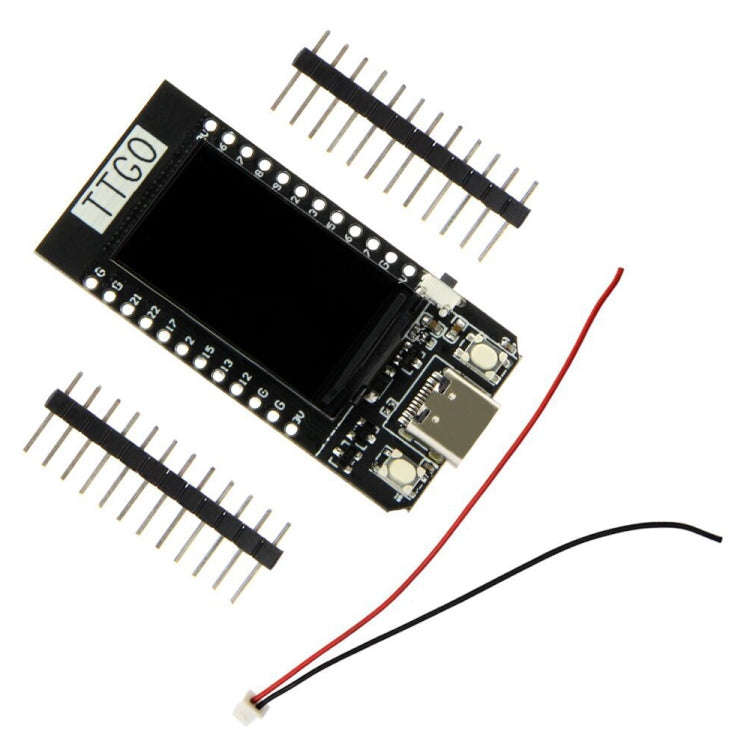

TTGO T-Display 4MB ESP32 WiFi Bluetooth Module 1.14 inch Development Board for Arduino
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DIY6165
Bob Shop ID
602482985
Hardware Specifications
1. Chipset: ESPRESSIF-ESP32 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
2. FLASH: QSPI flash 4MB
3. SRAM: 520 kB SRAM
4. Button: Reset
5. USB to TTL: CP2104

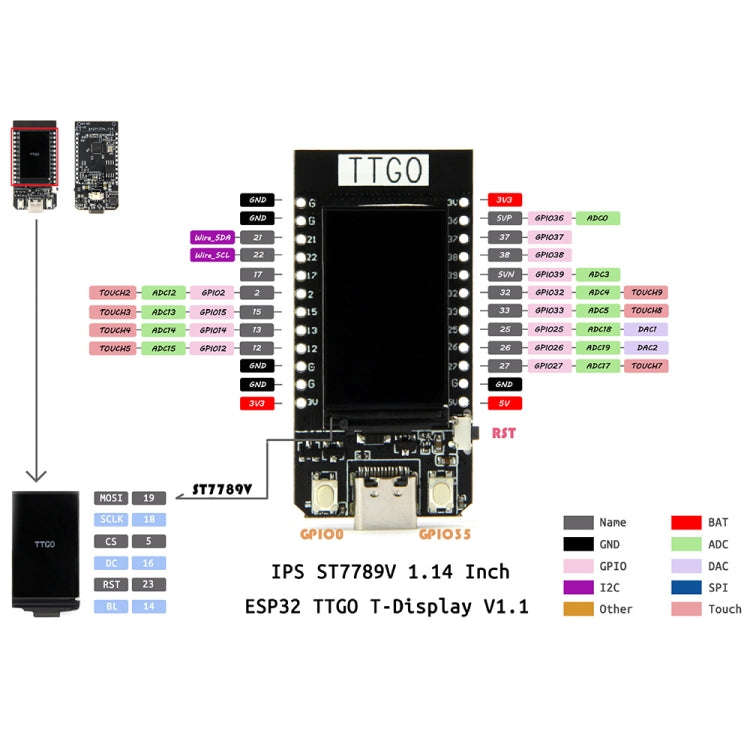

6. Modular interface: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, DACLNA pre-amplifier
7. Display: IPS ST7789V 1.14 Inch
8. Working voltage: 2.7V-4.2V
9. Working current: About 67MA
10. Sleep current: About 350uA
11. Working temperature range: -40 degree C~ +85 degree C

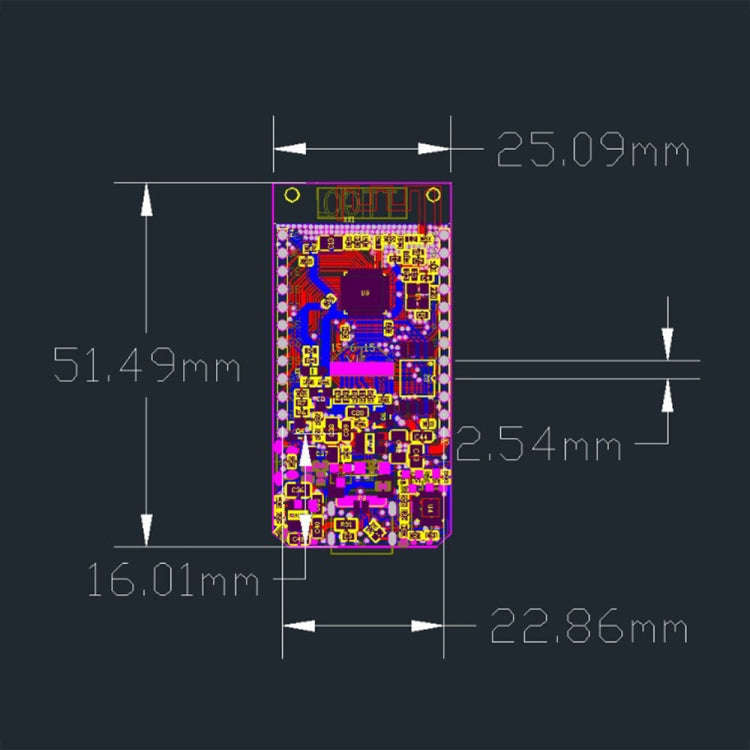

12. Size: 51.52x25.04x8.54mm
13. Weight: 7.81g
Power Supply Specifications
1. Power Supply: USB 5V/1A
2. Charging current: 500mA

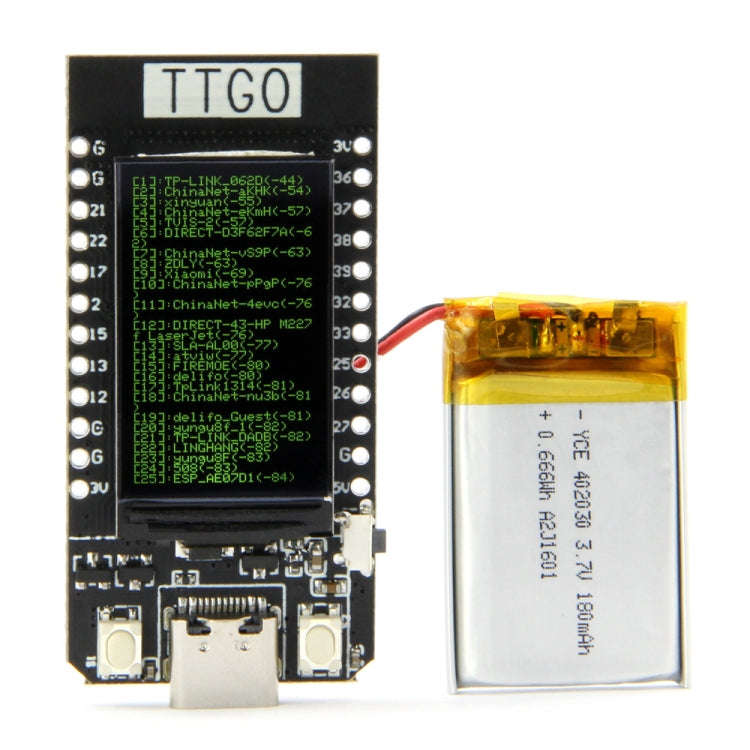

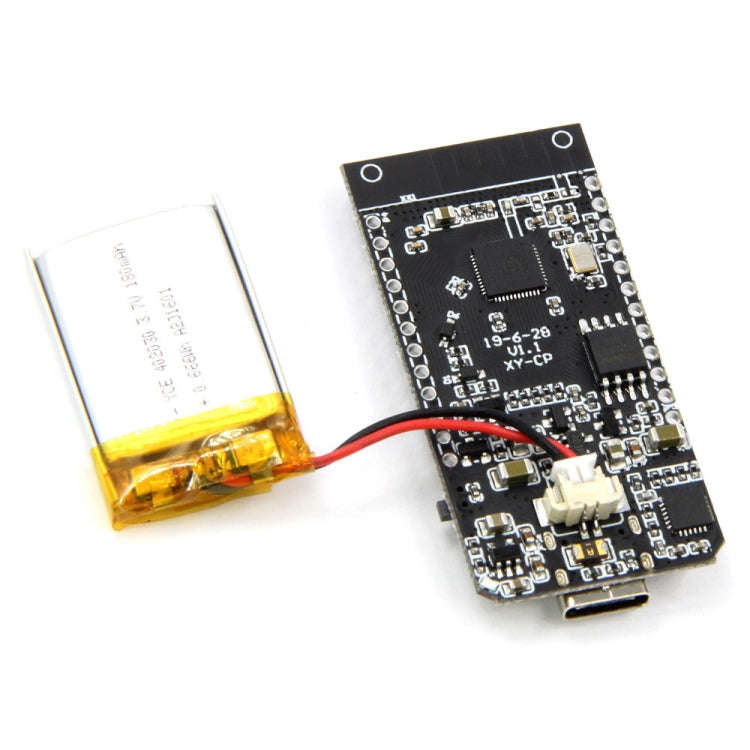

3. Battery: 3.7V lithium battery
4. JST Connector: 2Pin 1.25mm
5. USB: Type-C
Wi-Fi
1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC esp32chip
2. Protocol: 802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4uS Protection interval
3. Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet bluetooth v4.2BR/EDR and BLE standard
2. Radio frequency: With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
3. Audio frequency: CVSD&SBC audio frequency
Software specification
1. Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type: AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA (Through network/host to download and write firmware)
5. Software Development: Support cloud server development / SDK for user firmware development
6. Networking protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User Configuration: AT + Instruction set, cloud server, android/iOSapp
8. OS: FreeRTOS
1. Chipset: ESPRESSIF-ESP32 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
2. FLASH: QSPI flash 4MB
3. SRAM: 520 kB SRAM
4. Button: Reset
5. USB to TTL: CP2104
6. Modular interface: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, DACLNA pre-amplifier
7. Display: IPS ST7789V 1.14 Inch
8. Working voltage: 2.7V-4.2V
9. Working current: About 67MA
10. Sleep current: About 350uA
11. Working temperature range: -40 degree C~ +85 degree C
12. Size: 51.52x25.04x8.54mm
13. Weight: 7.81g
Power Supply Specifications
1. Power Supply: USB 5V/1A
2. Charging current: 500mA
3. Battery: 3.7V lithium battery
4. JST Connector: 2Pin 1.25mm
5. USB: Type-C
Wi-Fi
1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC esp32chip
2. Protocol: 802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4uS Protection interval
3. Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet bluetooth v4.2BR/EDR and BLE standard
2. Radio frequency: With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
3. Audio frequency: CVSD&SBC audio frequency
Software specification
1. Wi-Fi Mode: Station/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type: AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA (Through network/host to download and write firmware)
5. Software Development: Support cloud server development / SDK for user firmware development
6. Networking protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User Configuration: AT + Instruction set, cloud server, android/iOSapp
8. OS: FreeRTOS
