TTGO T-Internet-POE ESP3 Module Downloader Extension Board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
DIY6225
Bob Shop ID
602482901
Hardware Specifications

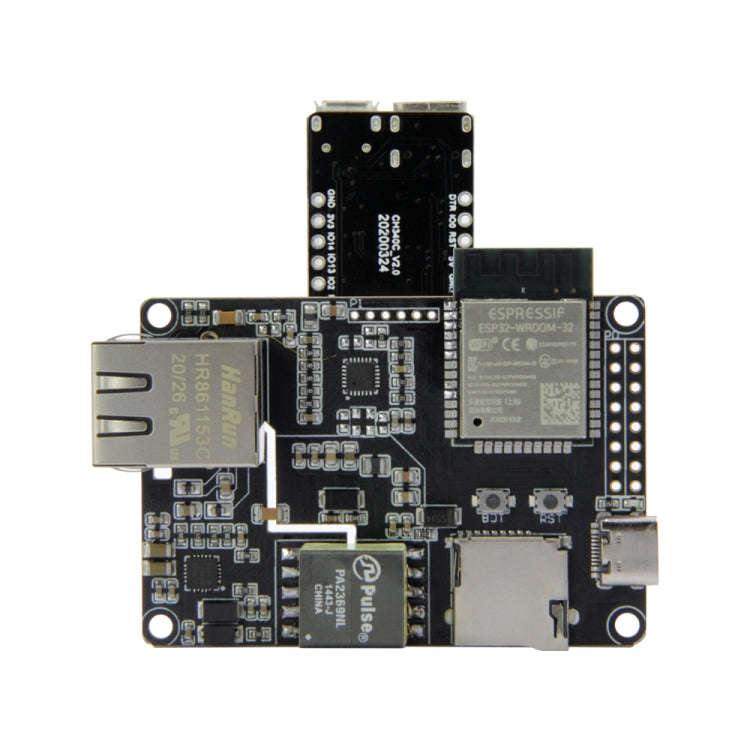

1. Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A Ethernet chip, SI 3404 power management chip
2. Flash: 4MB
3. PSRAM: 8MB
4. SRAM: 520 kB SRAM
5. Button: robot, rest
6. External device: TF card slot, C-type interface, PA2369NL 1825-S transformer, HR861153C Ethernet-POE interface

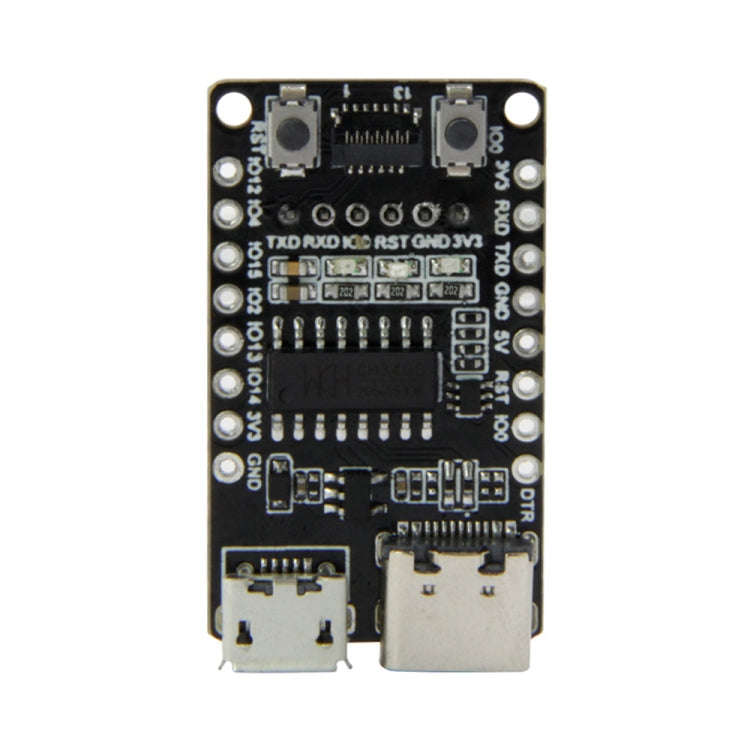

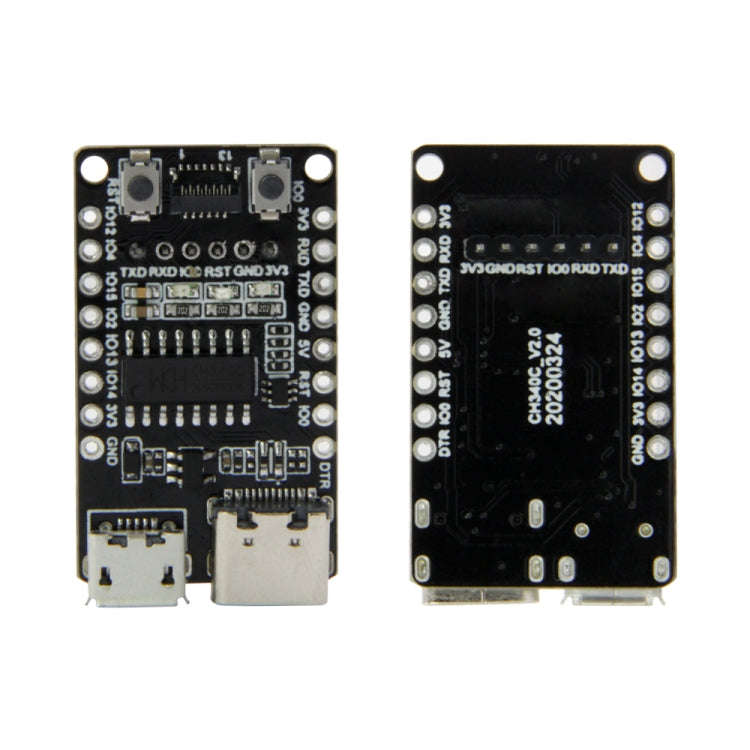

7. USB to TTL: CP 2104

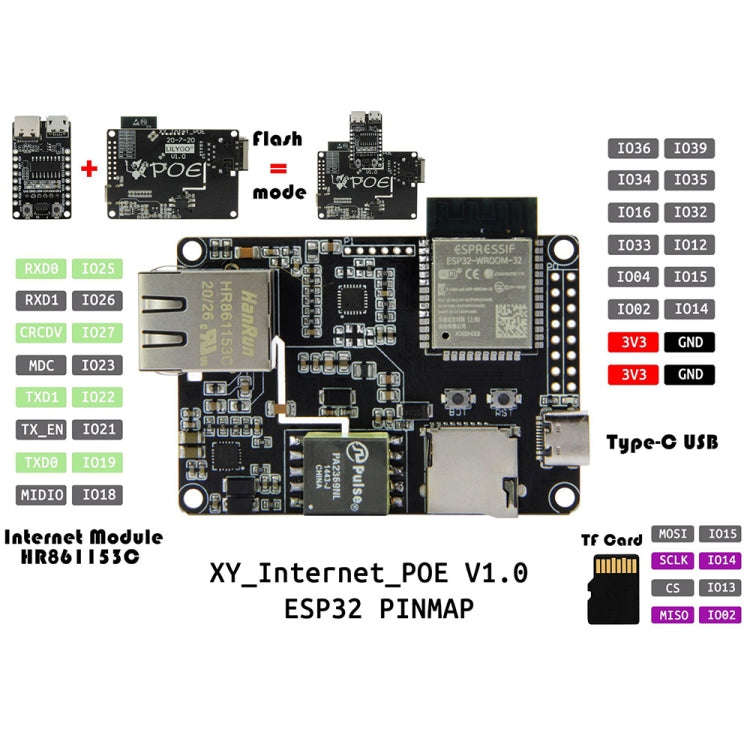

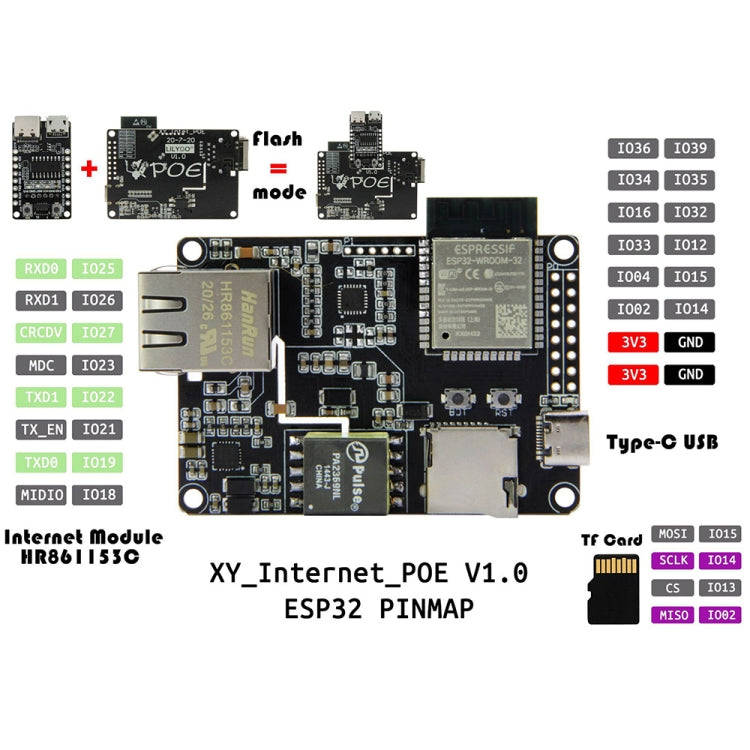

8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC
9. Satellite clock: 32.768 MHz crystal oscillator
10. Operating temperature range: -40 degrees Celsius to +85 degrees Celsius

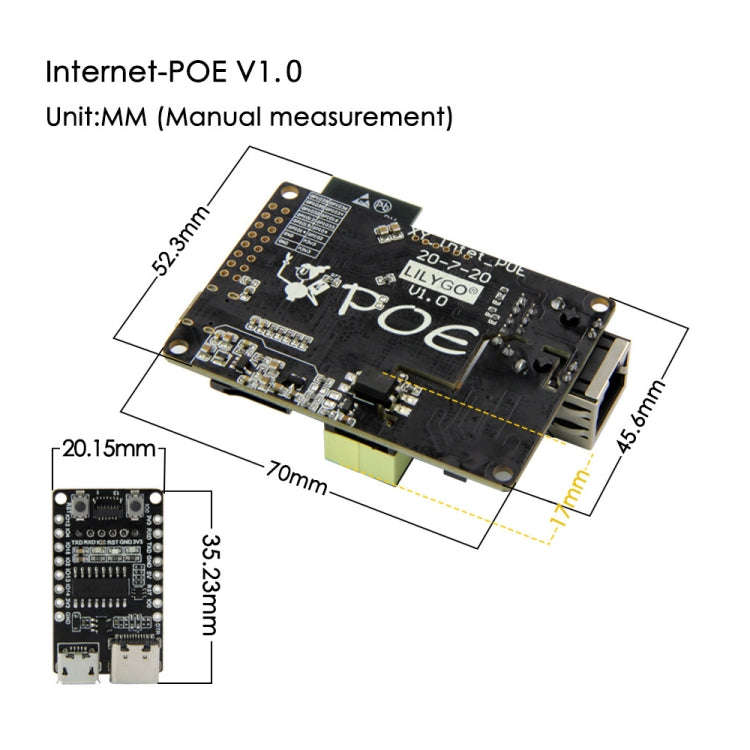

11. Size: 70x52.3x17mm
12. Weight: 26.85g
Power Specifications
1. Power input: -C type USB 5V
2. HR861153C Ethernet-POE interface: 50V
3. Working voltage: 2.7V-3.6V
4. Output current: about 1.2A
5. Charging current: 500 mA
6. USB: Type C USB
Wi-Fi
1. Standard: FCC/CE-Red/IC/TELEC/KCC/SRRC/NCC (ESP 32 chip)
2. Protocol: 802.11 b/g/n (802.11n, acceleration 150 Mbps) A-MPDU and A-MSDU aggregation, support 0.4??S guard interval
3. Frequency range: 2.4GHz~2.5GHz (2400 m~2483.5M)
4. Transmit power: 22 dBm
5. Communication distance: 300 meters
Bluetooth
1. Protocol: Complies with Bluetooth V4.2BR/EDR and BLE standards
2. Radio frequency: -97 dBm sensitivity nzif receiver class-1 class-2 class-3 emitter AFH
3. Audio: CVSD&SBC audio
Software Specification
1. Wi-Fi mode: workstation/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA 2/WPA 2-Enterprise/WPS
3. Encryption type: AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA (download and write firmware via network/host)
5. Software development: support cloud server development/sdk for user firmware development
6. Network protocol: IPv 4, IPv 6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User configuration: +instruction set, cloud server, Android/iOSapp
8. OS: FreeRTOS
