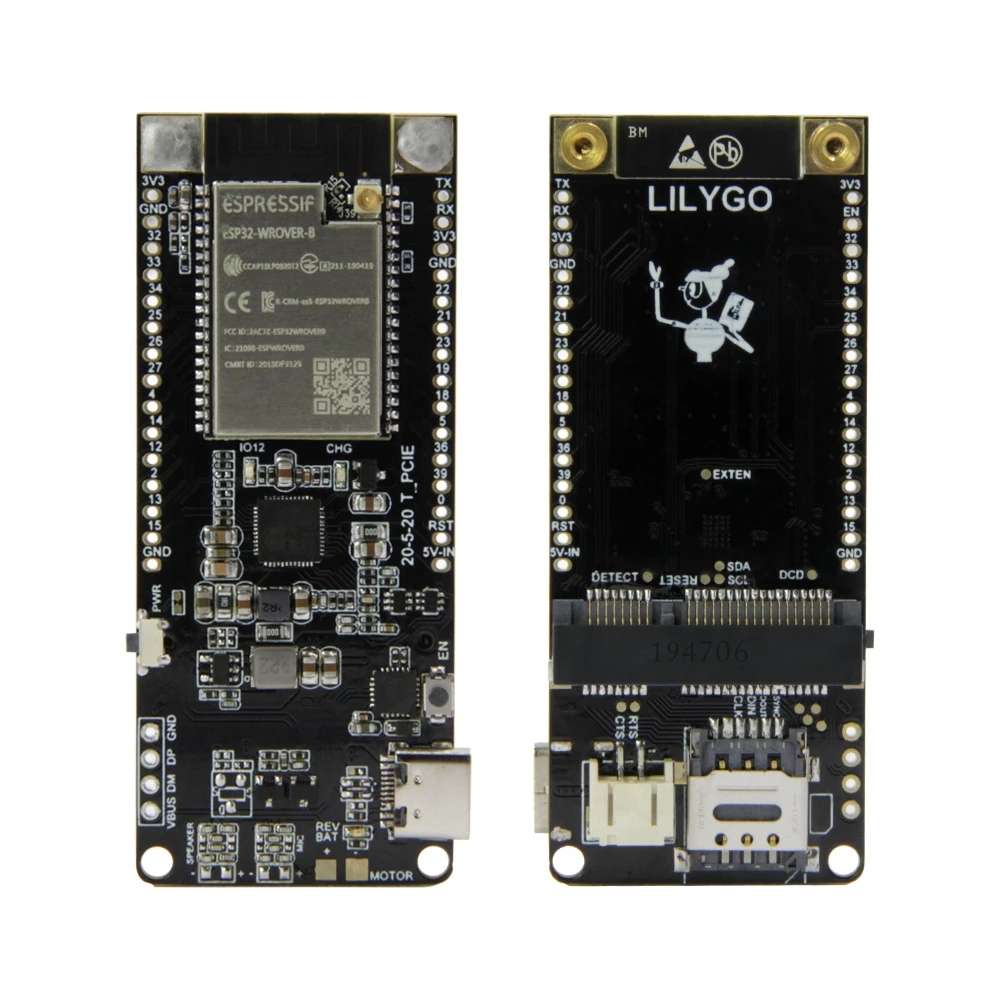

TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WiFi Bluetooth Nano Card SIM Series Module 4MB Hardware Compo
New
10 were available
Indicative market price:
R1,147.00
R574.00
50% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 15 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

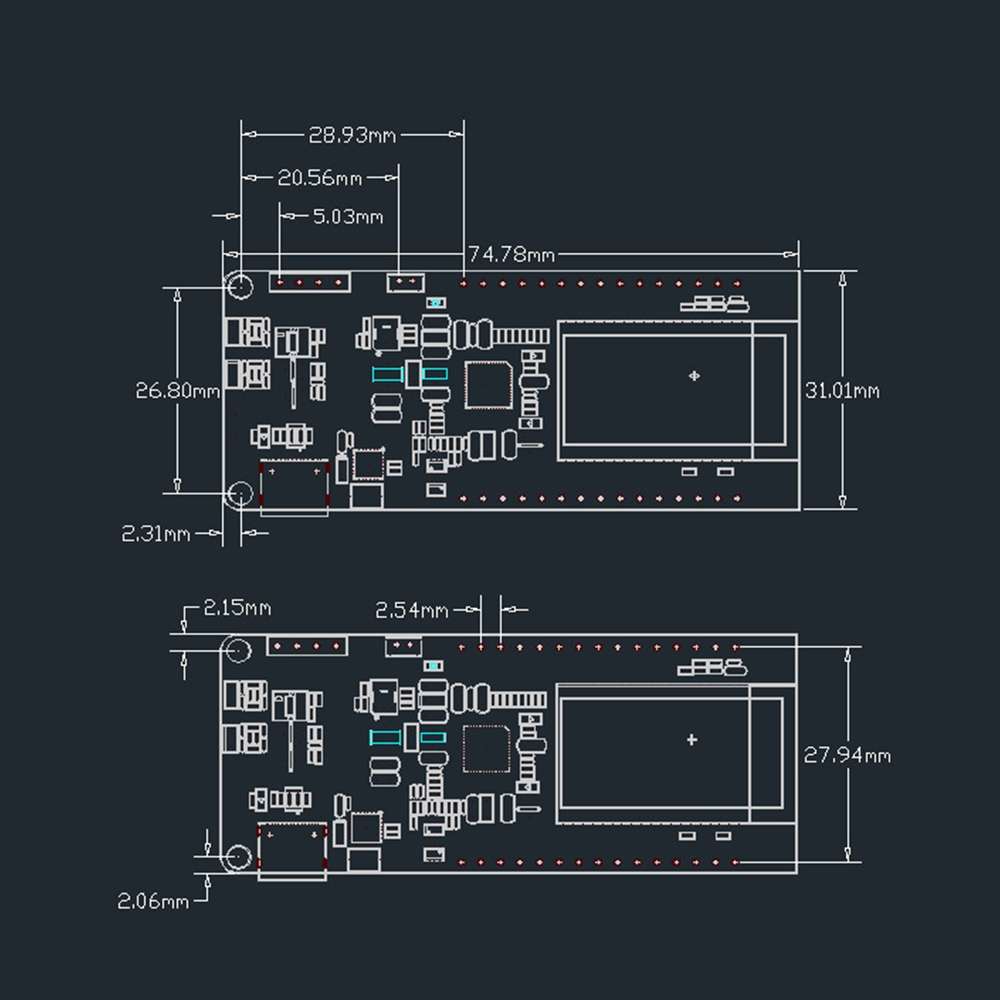

Hardware specifications 1. Chipset: ESP32-WROVER-B, AXP192 power management chip 2. Flash: 4MB 3. Static SRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: PWR power switch, reset 6. USB to TTL: CP2104 7. Vehicle clock: 40MHz crystal oscillator 8. Peripheral equipment: SIM Nano card slot, Mini PCIE card slot 9. Antenna: Onboard antenna (default) 10. Working voltage: 2.7V to 3.6V 11. Sleep current: About 700ma 12. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius 13. Dimensions: 75 x 33 x 10.5 mm 14. Weight: 14.5g
Power Specifications 1. Power input: USB 5V / 1A 2. Charging current: 500 mA 3. Battery input: 3.7-4.2V 4. Charging IC: AXP192 5. JST connector: 2-pin 2.0mm 6. USB: Type C
wireless online 1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip) 2. Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval 3. Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M) 4. Transmit power: 22dBm 5. Communication distance: 300m
Bluetooth 1. Protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards 2. Radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm, Class-2&Class-3 transmitter AFH 3. Audio: CVSD&SBC audio
Software specifications 1. Wi-Fi mode: Workstation / SoftAP / SoftAP + Station / P2P 2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS 3. Encryption method: AES / RSA / ECC / SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development / SDK for user firmware development 6. Network protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT 7. User configuration: AT + command set, cloud server, Android / iOS app 8. Operating system: FreeRTOS

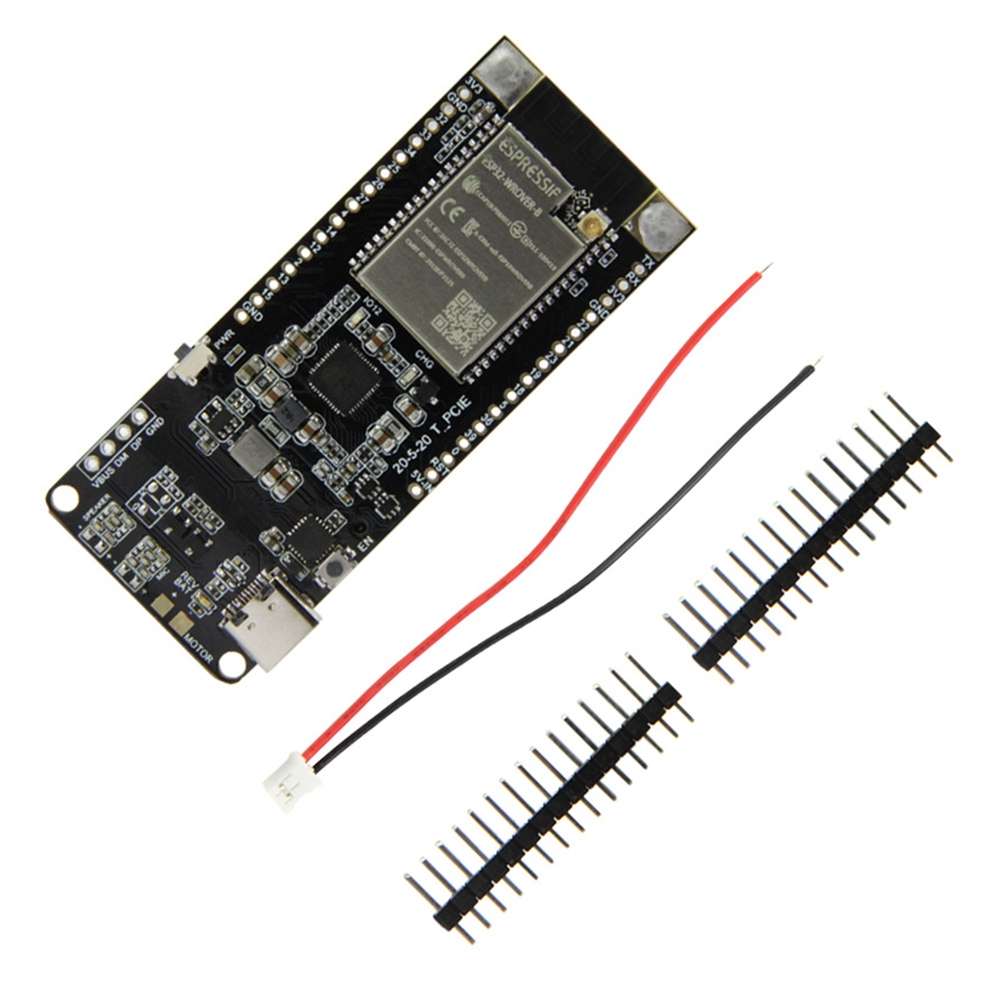

Packing list 1. T-PCIE 4MB x 1 2. Charging cable x 1 3. Needle Pin x 2
