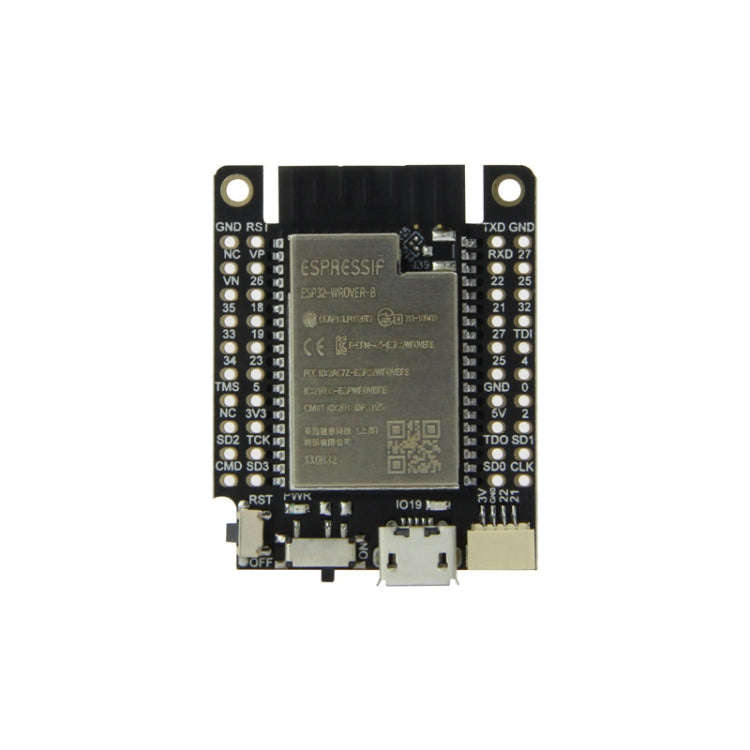

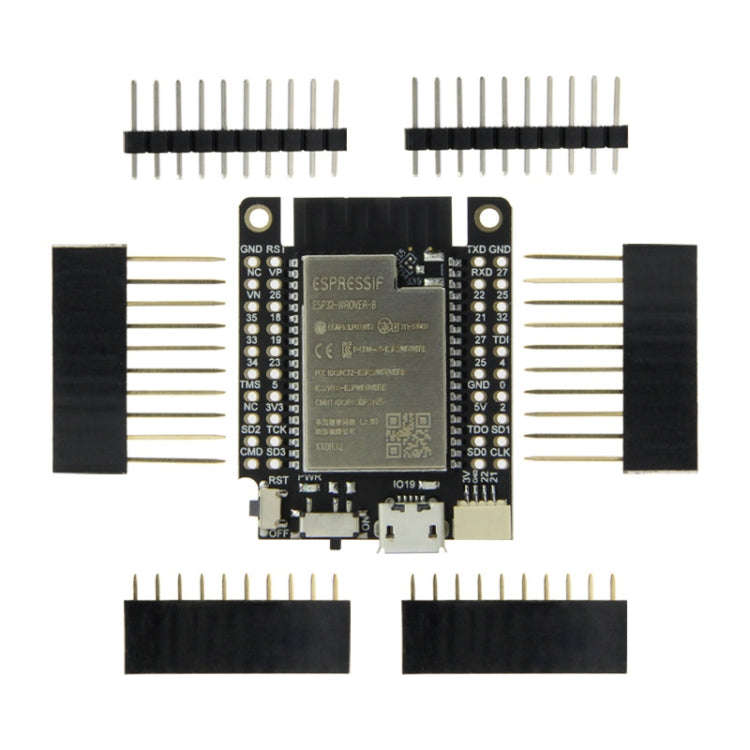

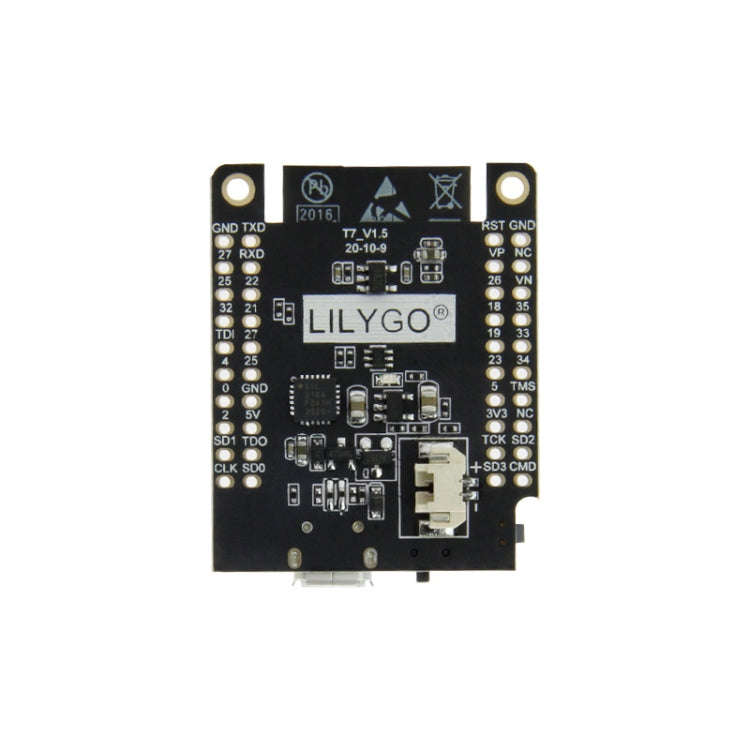

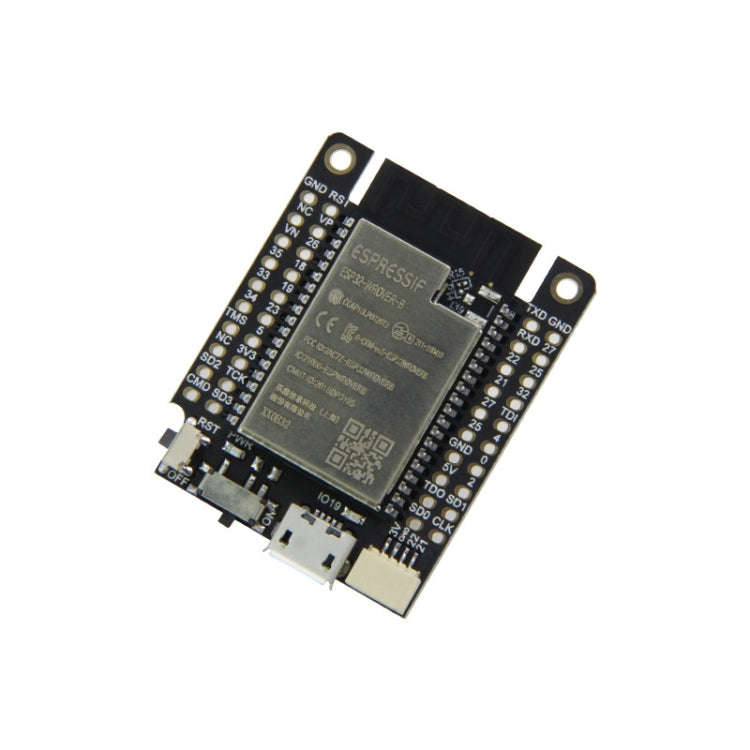

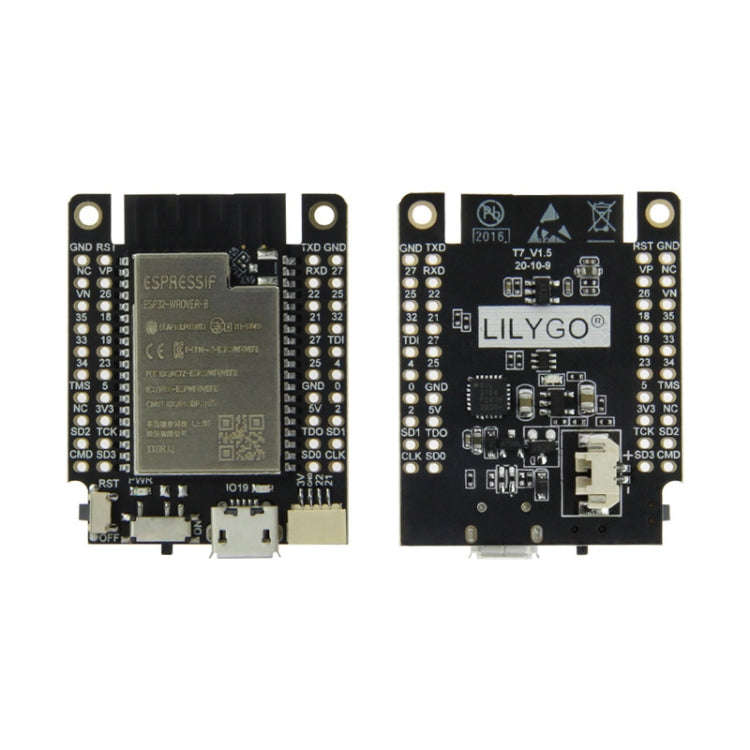

TTGO T7 V1.5 Mini32 Expansion Board ESP32-WROVER-B PSRAM Wi-Fi Bluetooth Module Development Board
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
International
Product code:
DIY0145
Bob Shop ID:
602483027
Hardware Specifications:
1. Chipset: ESPRESSIF-WROVER-B 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
2. FLASH: QSPI flash 4MB / PSRAM 8MB
3. SRAM: 520KB SRAM
4. Button: reset
5. Power indicator lamp: red
6. USB to TTL: CH9102F QFN24
7. Modular interface: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier
8. On-board clock: 40MHz crystal oscillator
9. Working voltage: 2.7V-3.6V
10. Working current: about 30mA
11. Working temperature range: -40~ +85 Degrees Celsius
12. Size&weight: 40.27x31.07x8.13mm, 6.42g
Power Supply Specifications:
1. Power Supply: USB 5V/1A
2. Charging current: 500mA
3. Battery: 3.7V lithium battery
WiFi Description:
1. Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
2. Protocol: 802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4??S Protection interval
3. Frequency range: 2.4GHz~2.5GHz(2400M~2483.5M)
4. Transmit Power: 22dBm
5. Communication distance: 300m
Bluetooth Description:
1. Protocol: meet bluetooth v4.2BR/EDR and BLE standard
2. Radio frequency: with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH
3. Audio frequency: CVSD&SBC audio frequency
Software specification Description:
1. WiFi Mode: Station/SoftAP/SoftAP+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption Type : AES/RSA/ECC/SHA
4. Firmware upgrade: UART download/OTA???Through network/host to download and write firmware???
5. Software Development: Support cloud server development /SDK for user firmware development
6. Networking protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
7. User Configuration: AT + Instruction set, cloud server, Android/iOS APP
8. OS: FreeRTOS
