TTL to RS485 Converter Module AOZ1282CI SP485EEN Compatible M5StickC M5Stack for Arduino - product

20 available / new
R462.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643390372

Description:

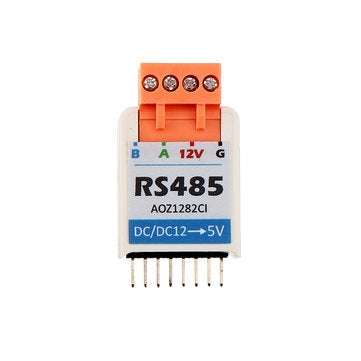

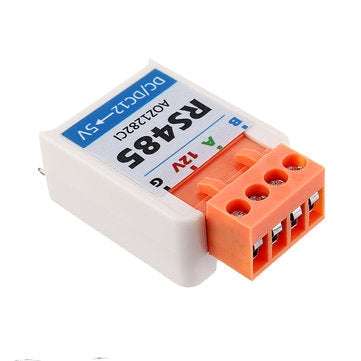

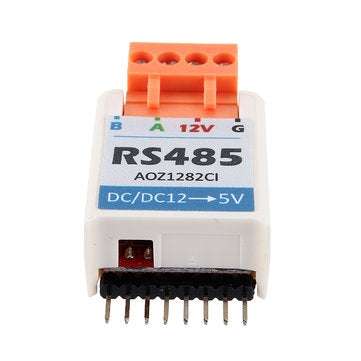

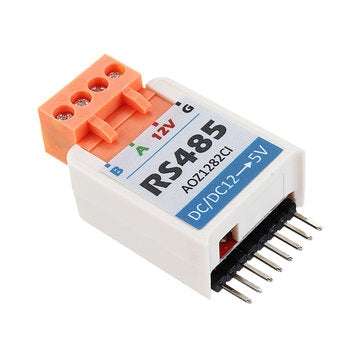

RS485-HATis a TTL to RS485 converter for M5StickC. Among M5stack products we have 5 items that include TTL to RS485, they are RS485 unit, RS485 HAT, PLC, LAN, BASE26 they have different input voltage, vary from 5V - 12V.

In this RS485-HAT, it consists of a 485 automatic transceiver circuit and a DC-DC buck circuit which can drop an input 12V to 5V.

RS485 is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems, widely used in the industrial field. multipoint systems are supported.

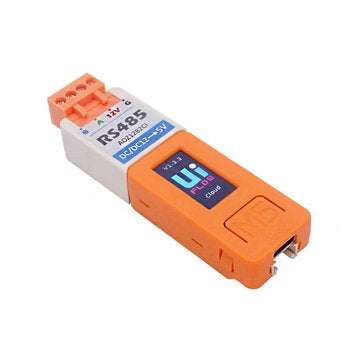

It is used to convert the TTL standard to the RS485 standard. If the outside serial device is RS485 standard, you can attach this hat on top of stickc, therefore, to implement the communication with RS485 device by TTL protocol.


Product Features:

  • Built-in SP485EEN
  • The built-in automatic transceiver circuit
  • Built-in DC-DC buck circuit
  • AOZ1282CI
  • input DC 5~12 V
  • BandRate up to 115200
  • Program Platform: , UIFlow(Blockly, Python)

Package Included:

  • 1x RS485 HAT

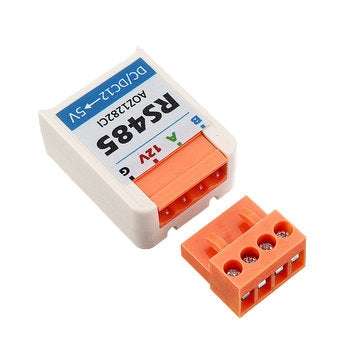

  • 1x 4 Pin 3.96 Pitch Terminal

Application:

  • RS485 multipoint systems
  • Serial communication in industrial field.

Links:

  • Datasheet-

Schematic:
