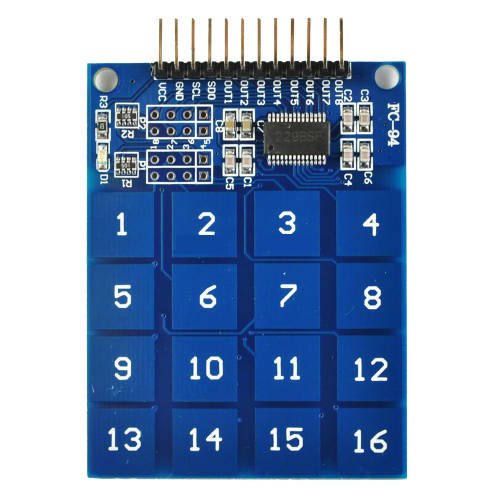

TTP229 16 Channel Digital Capacitive Switch Touch Sensor Module For Arduino

Operating voltage¿2.4V~5.5V
ƒBuilt-in regulator
ƒStand-by current At 3V, and sleep mode slow sampling rate 8Hz¿
=> Typical 2.5uA for 16 input keys
=> Typical 2.0uA for 8 input keys
ƒ8 Key or 16 key modes
ƒSeparate outputs to 8 keys in 8 key mode
2 wires serial output interface for both 16 key and 8 key mode
Outputs can be set to CMOS/OD/OC with active high/low
2 Wires serial interface can select active high or low by option
Optional Multi-key or single-key
ƒProvides two kinds of sampling rate: slow sampling rate 8Hz and fast sampling rate 64Hz at sleep mode
Optional maximum key-on time about 80sec
Auto calibration at power up (keypad must not be touched for 0.5 seconds after power up)
Auto calibration for changes in environment
