Turo Engine Timing Tool Kit For Vauxhall Opel Chevrolet 1.0 1.2 1.4

  We provide authentic guarantee

Turo Engine Timing Tool Kit For Vauxhall Opel Chevrolet 1.0 1.2 1.4

• Timing Kit for Vauxhall / Opel Twin Cams (Chain) 1.0 / 1.2 and 1.4
• Chevrolet:Aveo1.2 1.4 (2011-), Cruze 1.4 (2011-), Orlando 1.4 (2012-)
• Removal of the timing chain will require the removal of the sump
• Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held in the retracted position using a suitable pin
• Remove the crankshaft pulley using an appropriate pulley holding tool
• DESCRIPTION
  Opel/Vauxhall Chevrolet 1.0 1.2 1.4 Turbo Engine Timing Tools Set from 2009 - onwards
  Application:
  Vauxhall / Opel :
  Adam 1.2 1.4 (2012- ), Ampera 1.4 (2011- ),
  Astra-J 1.4 (2009),
  Corsa-D 1.0 1.2 1.4 (2009-),Cascada 1.4 (2013-),
  Insignia 1.4 (2011-), Meriva-B 1.4 (2010-),
  Mokka 1.4 (2012-), Zafira-C Tourer 1.4 (2011-)
  Chevrolet:
  Aveo1.2 1.4 (2011-), Cruze 1.4 (2011-), Orlando 1.4 (2012-)
  Item Description Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain fitted to the Vauxhall/Opel twin Cam engines below.
  Removal of the timing chain will require the removal of the sump. Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held in the retracted position using a suitable pin.
  Remove the crankshaft pulley using an appropriate pulley holding tool.

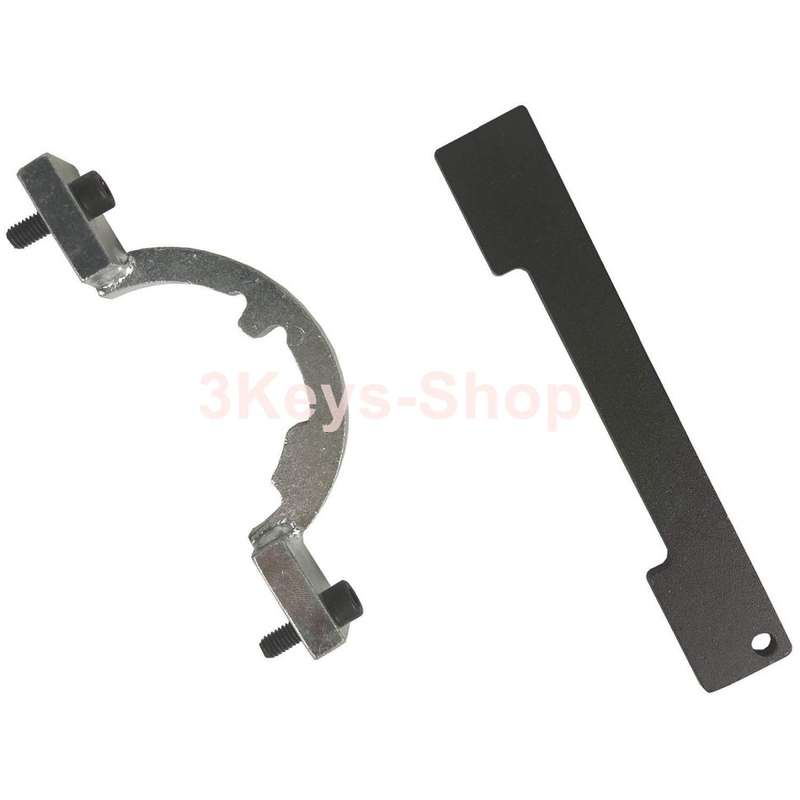

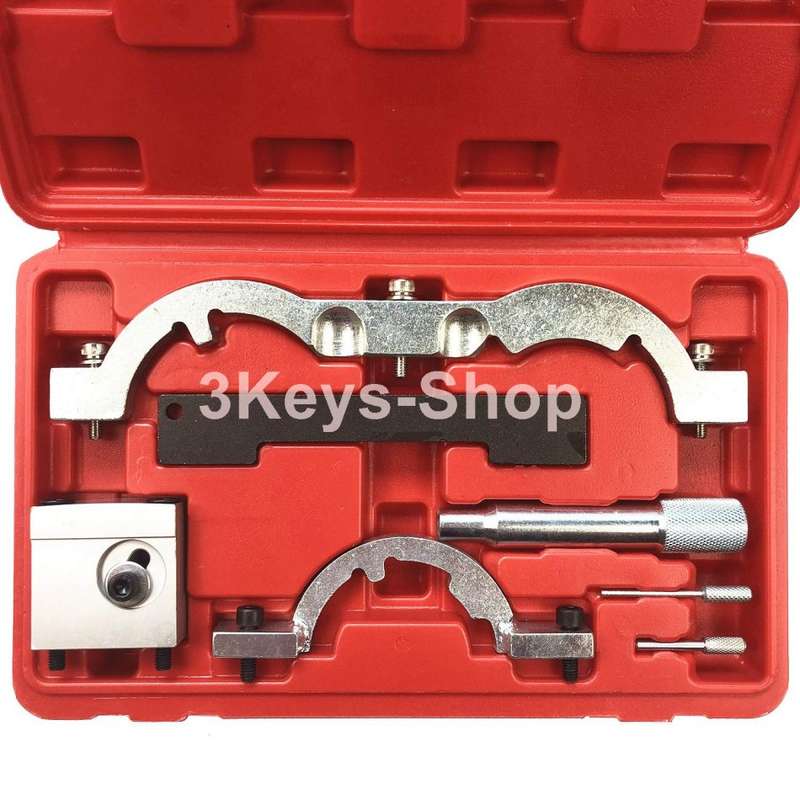

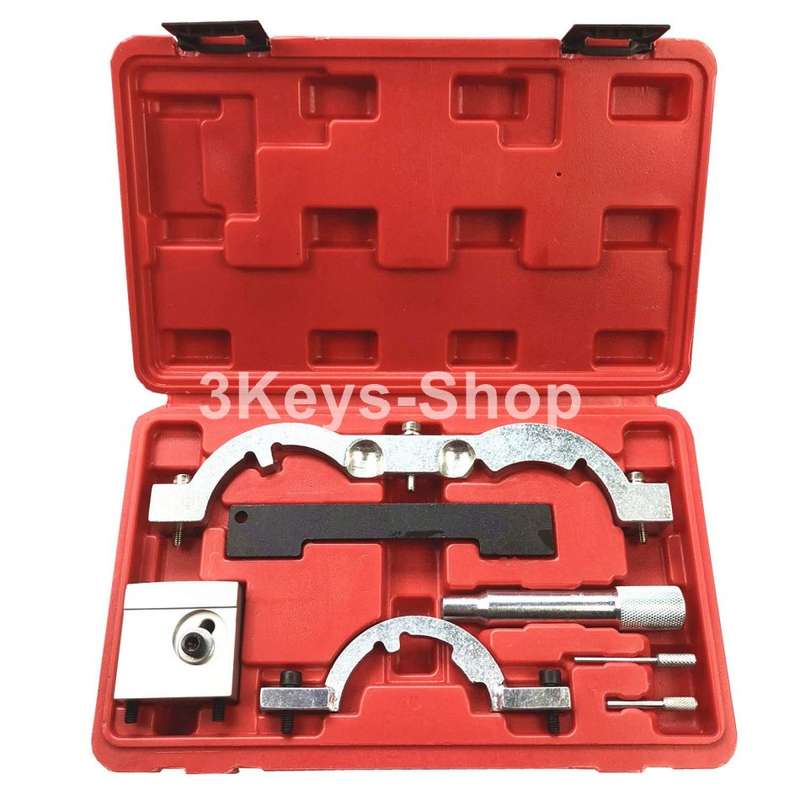

  Content:

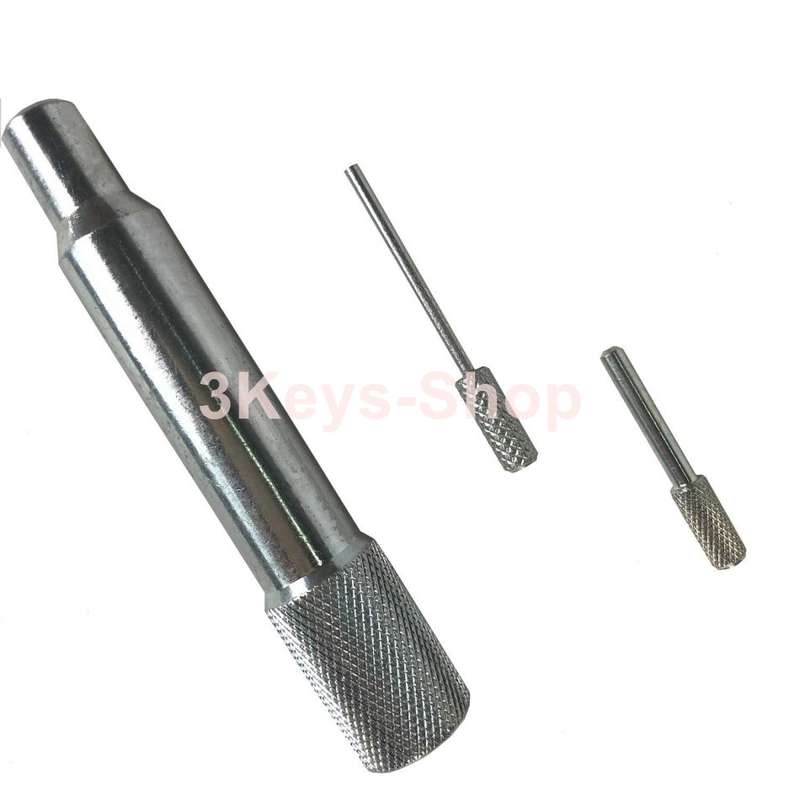

  1. Crankshaft Locking Pin

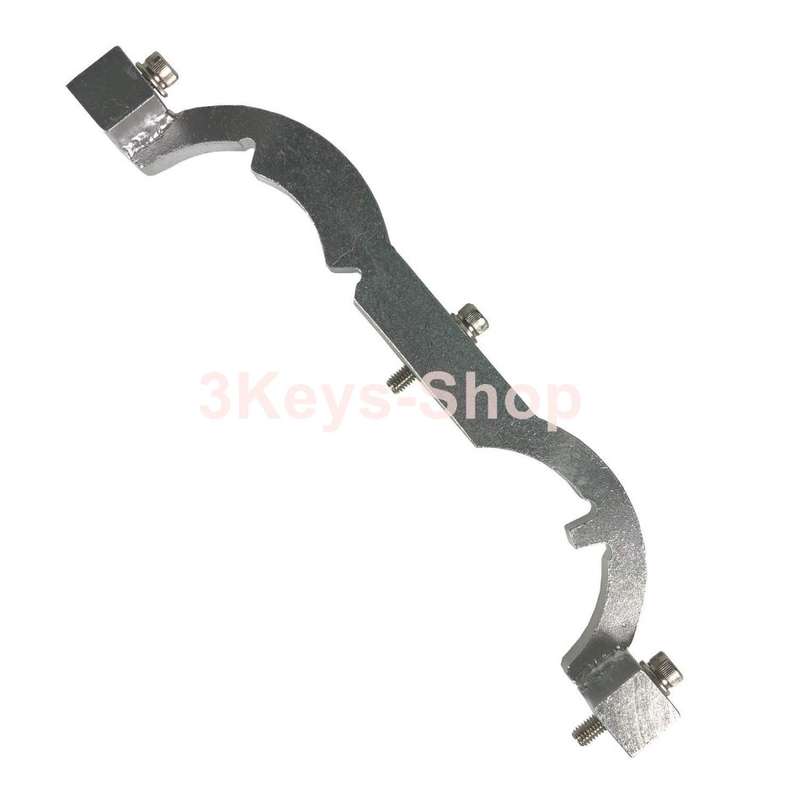

  2. Camshaft Setting Plate

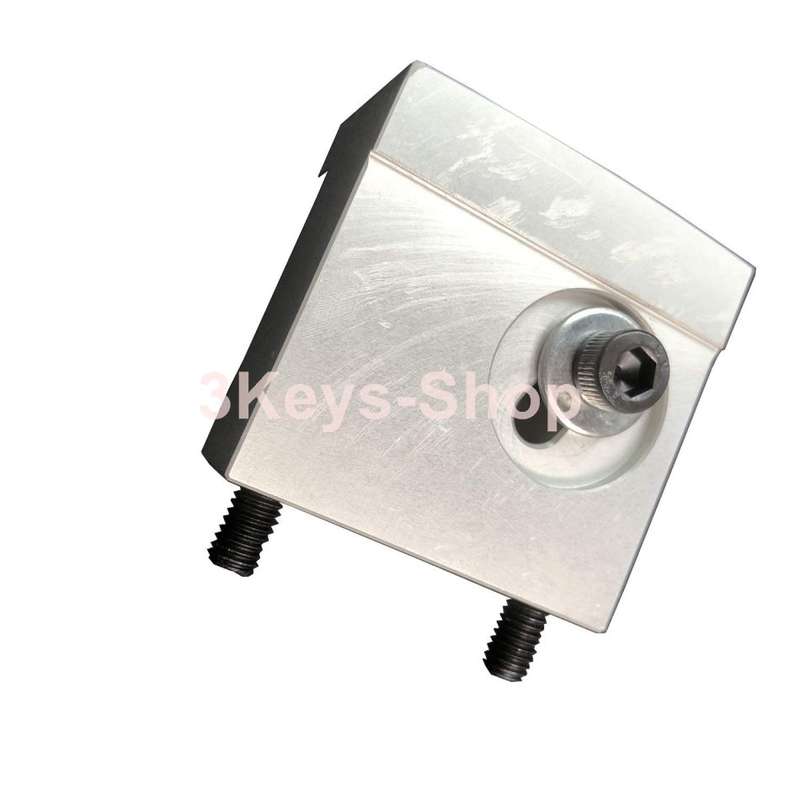

  3. VVT Sensor Setting Tool (1.0L)
  4. VVT Sensor Setting Tool (1.2 & 1.4L)
  5. Camshaft Sprocket Holding Tool
  6. Chain Tensioner Locking Pin
  7. Belt Tensionet Locking Pin
•
