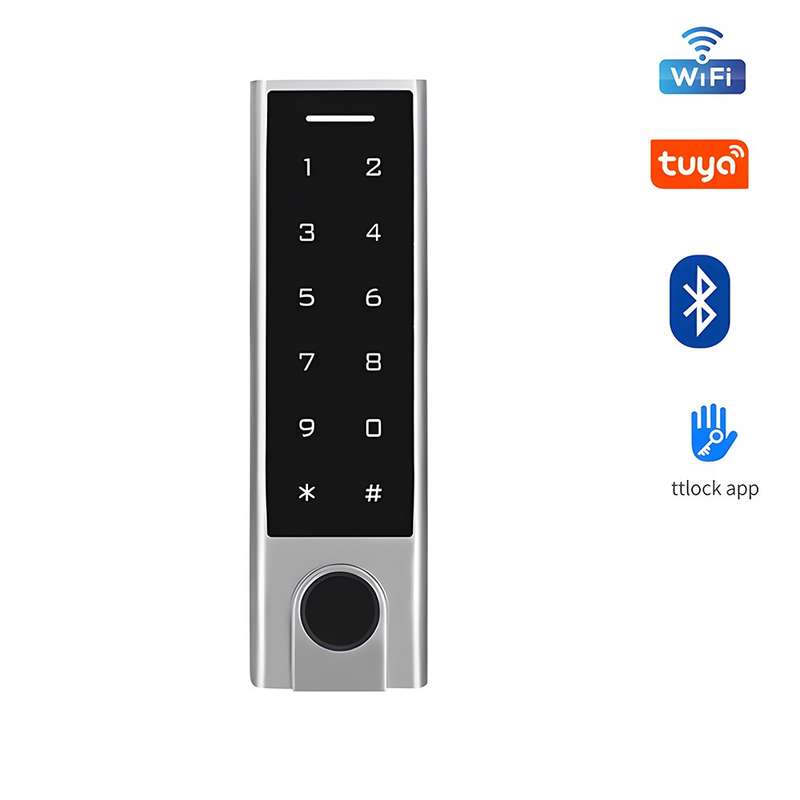

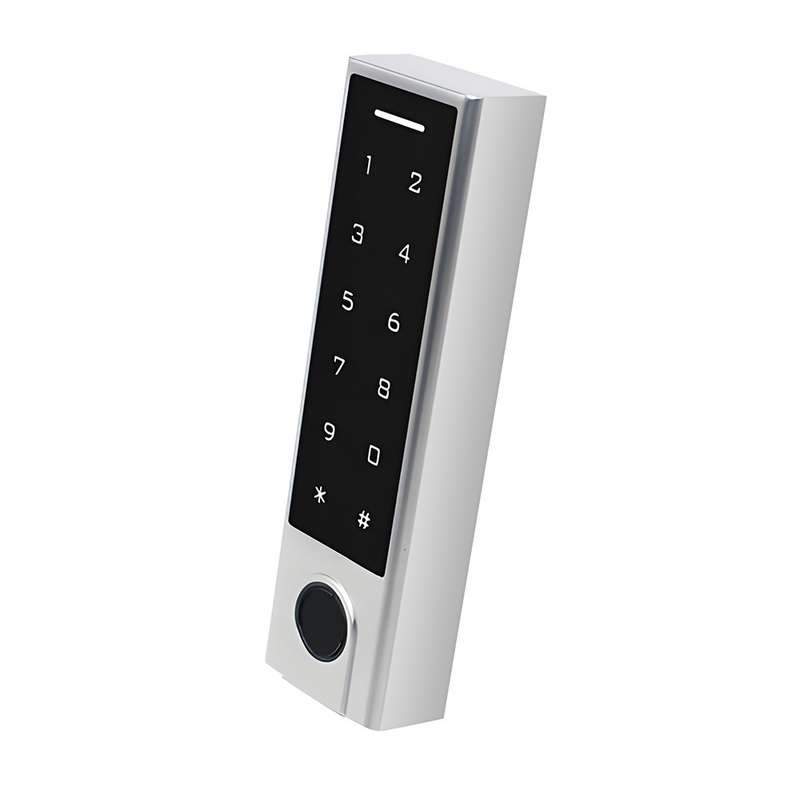

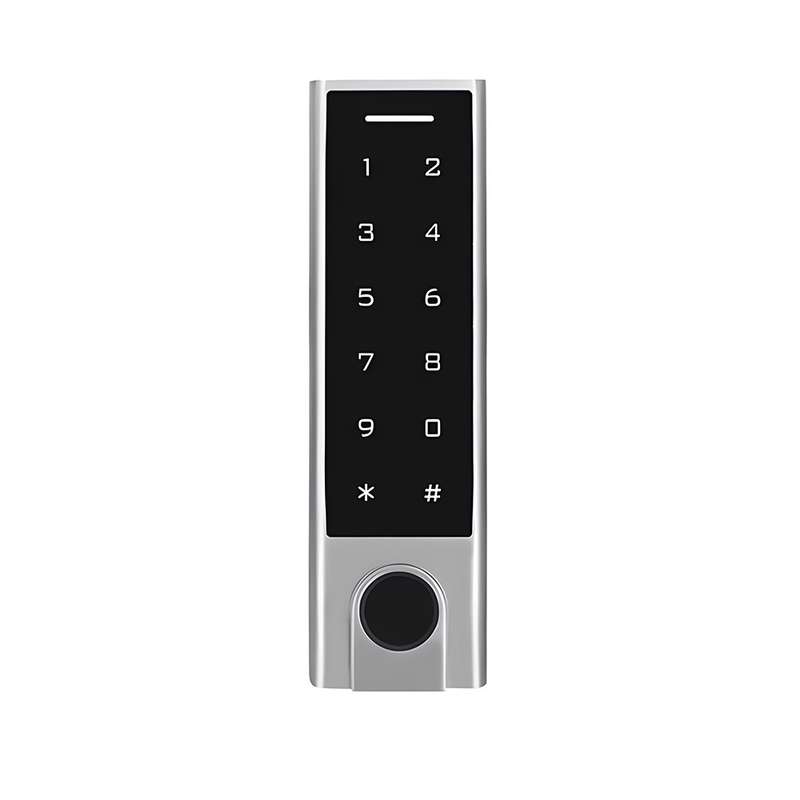

Tuya Fingerprint Access Control - works with Smartphone- Fingerprint- Card- and PIN Access Control

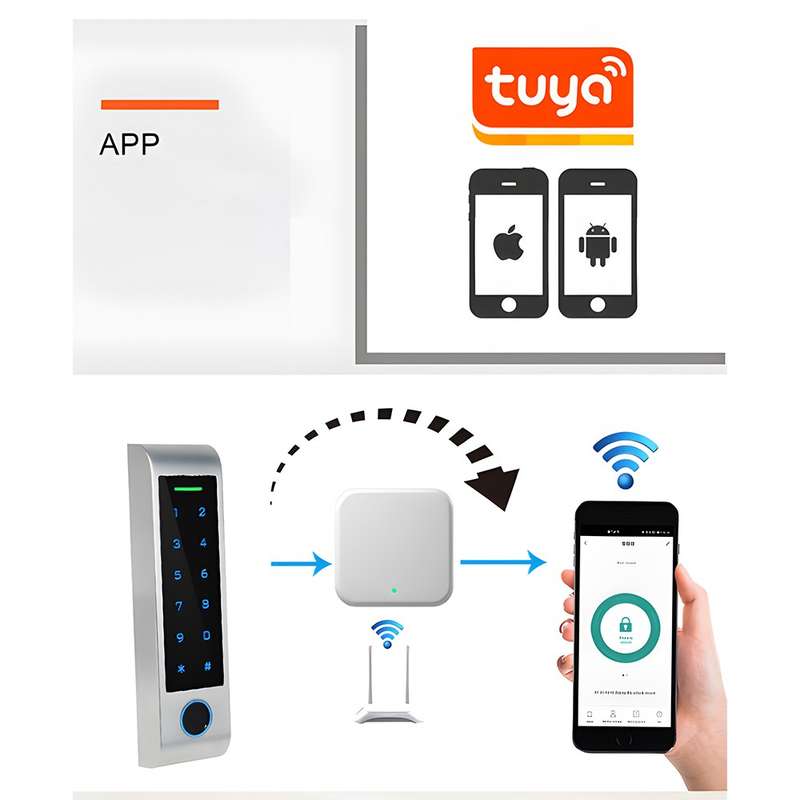

Requires a WIFI Bluetooth hub in order to use WIFI.

Features

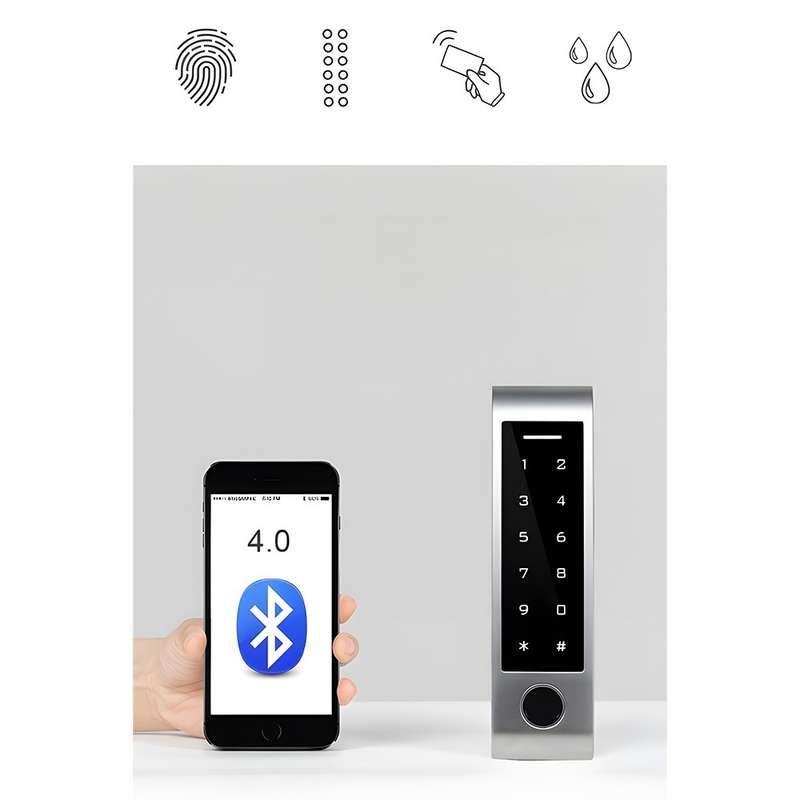

Smartphone Access Control with Tuya or TTLock APP.
Fingerprint standalone reader with support for iOS and Android.
Waterproof design with IP66 compliance.
Multiple Access Modes: Smartphone, Fingerprint, Card, PIN.
User Capacity: 1,000 users.
Operating Temperature: -30C to 60C.

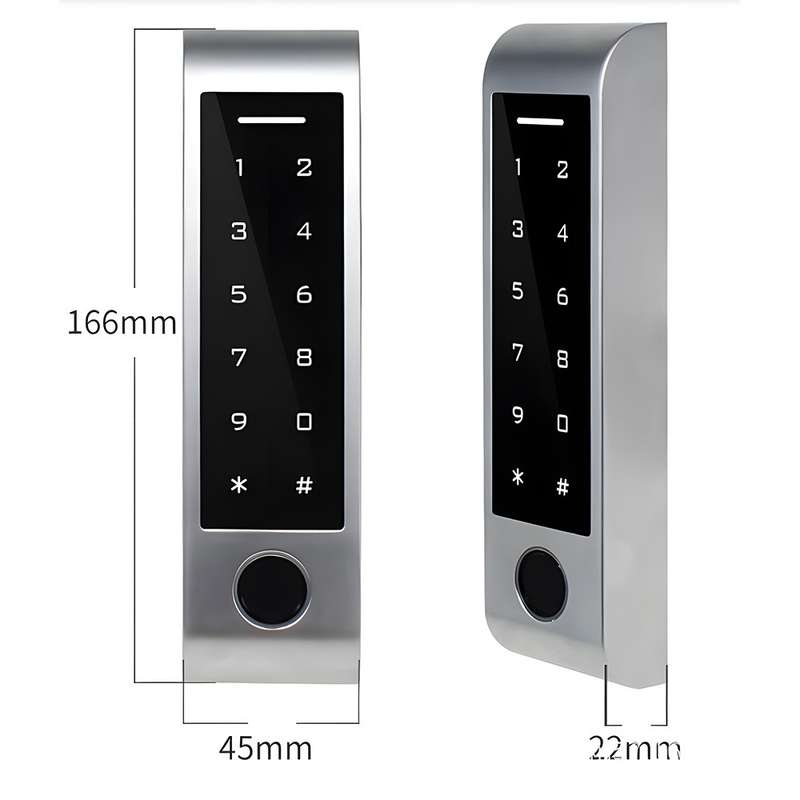

Compact Size: L148 x W43.5 x H22 mm.

Specifications

PIN Length: 4~6 digits
Operating Voltage: 12~28V AC/DC
Idle Current: 60mA
Active Current: 150mA
RFID Card Reader: EM or MF
Radio Technology: 125KHz/13.56MHz
Read Range: 2~6cm

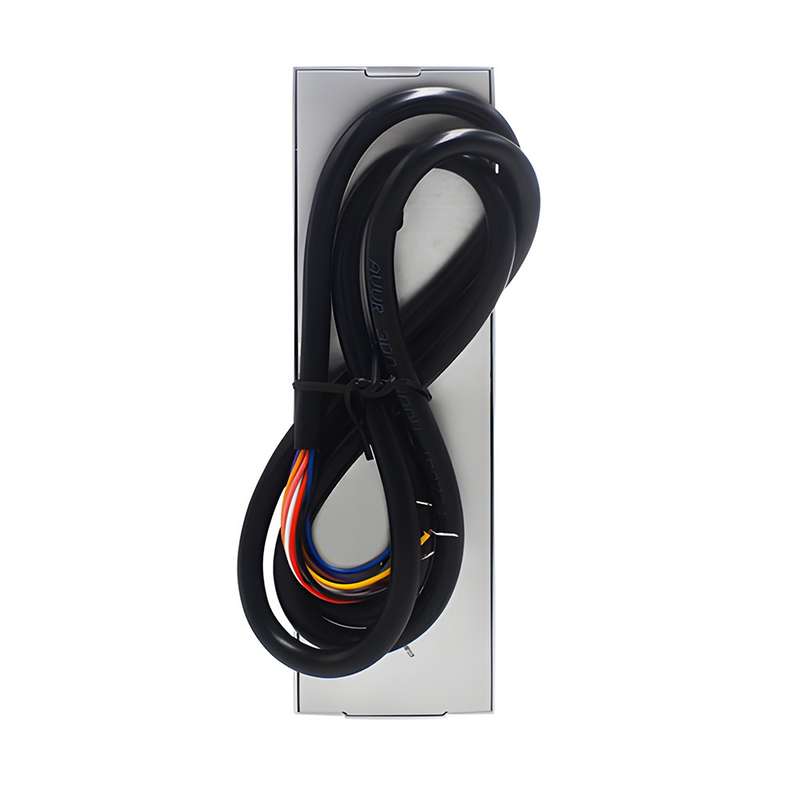

Wiring Connections: Relay output, exit button, alarm, door contact, Wiegand input/output
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum

User Capacity

Hardware User: 1000
APP User: 100 (including 255 fingerprint/card/PIN users)
Common User: 988 (100 Fingerprint Users + 888 PIN/Card Users)
Visitor User: 10
Panic User: 2

Wiegand Interface

EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26 bits)
MF card version: Wiegand 26~44 bits, 56 bits, 58 bits input & output (Factory default: Wiegand 34 bits)
PIN Output: 4 bits, 8 bits (ASCII), 10 digits Virtual Number (Factory default: 4 bits)
Environment: Meets IP66 standards
Operating Humidity: -30C to 60C (-22F to 140F)
Physical: Zinc-Alloy
Color: Silver & Black
Dimensions: L148 x W43.5 x H22 mm

Touch Keypad Access Controller Features

Waterproof design complying with IP66
Metal housing for anti-vandal protection
Card type: EM Card or Mifare Card
iOS and Android compatibility
Add / Delete users via APP
Support checking Opening Record
Support Gateway
Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
