Smart Wifi Gate Garage Door Opener Switch Tuya SmartLife - Full Installation Kit version
This latest generation Smart Gate or Garage Door Switch fits any standard existing motor system and makes it Smart. Simply 'Install, Configure and Play'. Smart Gate Garage Door Opener.

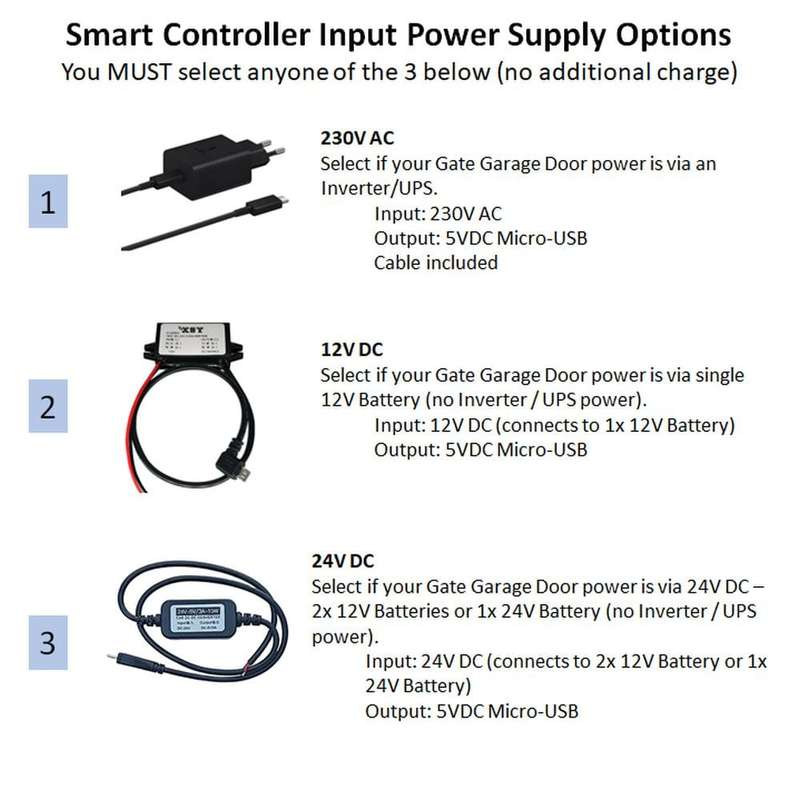

Important Power Supply Options for Load Shedding / Backup: (pls confirm your installation and select 1 of the below. Options are included in the price) - see additional images for more detail.
- AC-230VAC - select this option if your Gate Garage door power is from an Inverter or UPS.
- DC-12V - select this option if you have no Inverter or UPS. Back will then be provided via the battery at the control unit. Confirm you have only 1x 12V battery. Normally Gates are 12VDC and Garage doors are 24VDC (can be 2x 12V or 1x 24V)
- DC-24V - select this option if you have no Inverter or UPS. Back will then be provided via the battery at the control unit. Confirm you have either 2x 12V batteries or 1x 24V battery. Normally Gates are 12VDC and Garage doors are 24VDC (can be 2x 12V or 1x 24V)
Home Automation made Smart, Simple and Affordable via the Tuya, SmartLife App (Android or IOS), offering the fastest, most stable platform and widest range of Smart Products. Supports Alexa, Google Home and IFTTT.
Tuya SmartLife .... Great way to make your Garage Door or Gate, 'Smart'
Download: user manual for Smart Gate Garage Door Opener Switch [click here].
Product Features
- Small and Compact design. Ease of Installation.
- Activation dates, days of the week, start time and duration can all be pre-configured via the Smartlife application giving you complete remote control and ON/Off overwrite.
- Supports Voice Commands and also AI units such as Amazon Alexa Echo and Google Home solution.
- All your Smart Devices connected via a Single stable Platform been the Smart Life app from Tuya.
- The entire SmartLife system performance replies on an 'adequate WIFI' (2.4GHz only) signal. We recommend the use of 'PowerLine WIFI Extender 500Mbps Kit, Henrac Tech' to expand your WIFI signal. Supports up to 7 secondary repeaters to ensure comprehensive Home & Outdoors WIFI coverage.
Typical Uses (but not limited too)
- Smart Control over any Gate, Garage door or motorised apparatus. Fits any existing system
- Smart Gate, Garage Door Opener. Manual Linked Here
Ease of Installation: (refer to additional images for more information)
The Smart Opener basically 'piggybacks' to the exact same connections as your existing wireless remote or wired wall buttons available on your control board.
- Connect the provided cable connector to 'Motor'. RED connects to 'TRG' (Trigger or similar) on the control board for both Gates & Garage Doors. These are the same as the remote or wired buttons. BLACK to COM/ GND.
- Connect the wired sensor and the magnetic sensor pickup (opposite each other, max 15mm apart). Indicates on the Mobile App if the Gate/Door is open or closed + audible Chime.
- Gate: connects inside to your Gate motor enclosure / pickup on the gate itself.
- Garage Door: connects to wall just above the garage door / pickup on the garage door (screws/stickers/bracket included).
- Power the Smart Opener: The smart opener requires 5VCD via a microUSB connector. A 230VAC adaptor with USB to microUSB is included. Connecting 230VAC requires a qualified electrician. See above optional 12 & 24V DC power converters
- Pair the unit and control the device on your smart phone Tuya Smart Life, Voice Control, Google Home, Alexa, Automate based on your position.
- Special Smart Configuration: configure the gate and/or garage door to automatically open/ close when you are for example 300m away from home.
Specifications
- Power Supply: DC 5V (Included)
- Action: 3-15mm
- Wireless standard: IEEE802.11b/g/n
- Wireless Type: Only 2.4GHz, not support 5G
- Mobile Phone: Tuya SmartLife For android & IOS
- Voice Control: Support
- Installation: with Screws/Stickers
- Wire Length: 5M
- Material: ABS+PC
- Working Temperature: -10 ~ 50
- Item Size: Approx. 6.1 * 4.5 * 2.2cm (L*W*H)
- Item Weight: Approx. 31g / 1.1oz
- Package Size: Approx. 15.5 * 11.2 * 4.5cm / 6.1 * 4.41 * 1.77in
- Package Weight: Approx. 215g / 7.58oz

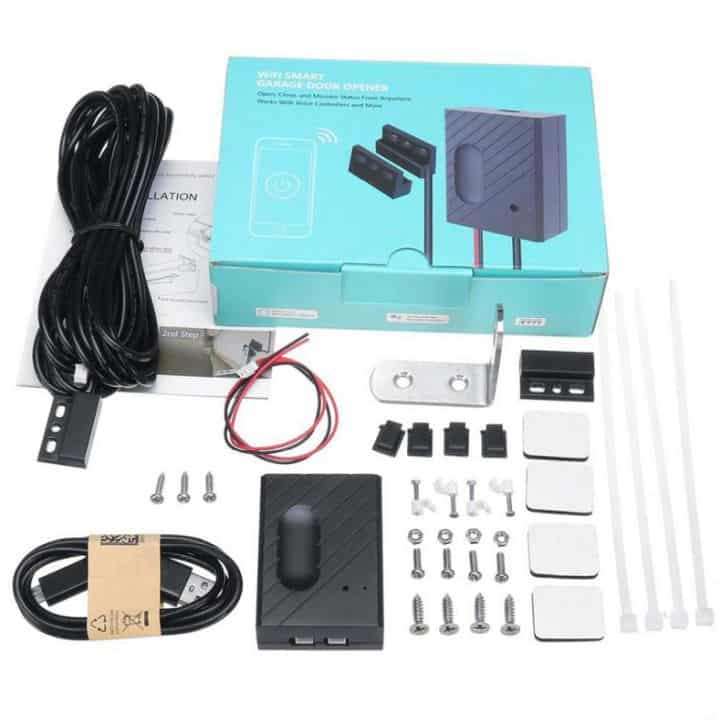

What's in the Box?
- 1x WiFi Garage Door Opener
1x Sensor Cable and magnetic pickup
1x Pickup mounting bracket, Screws, Double-sided tape
1x Instruction Manual - 1x Power Adapter (customer selected)
