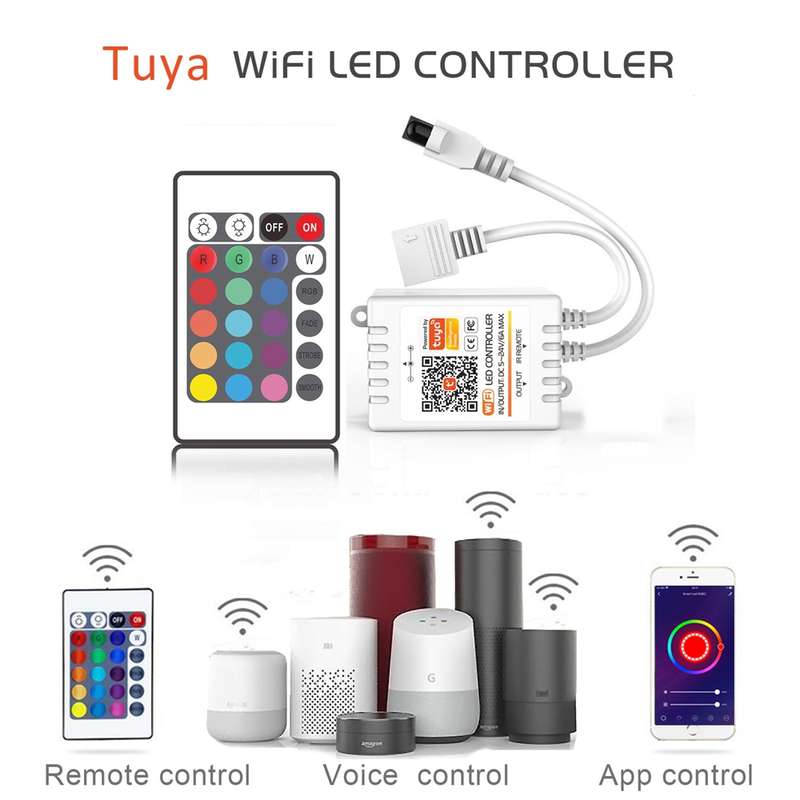

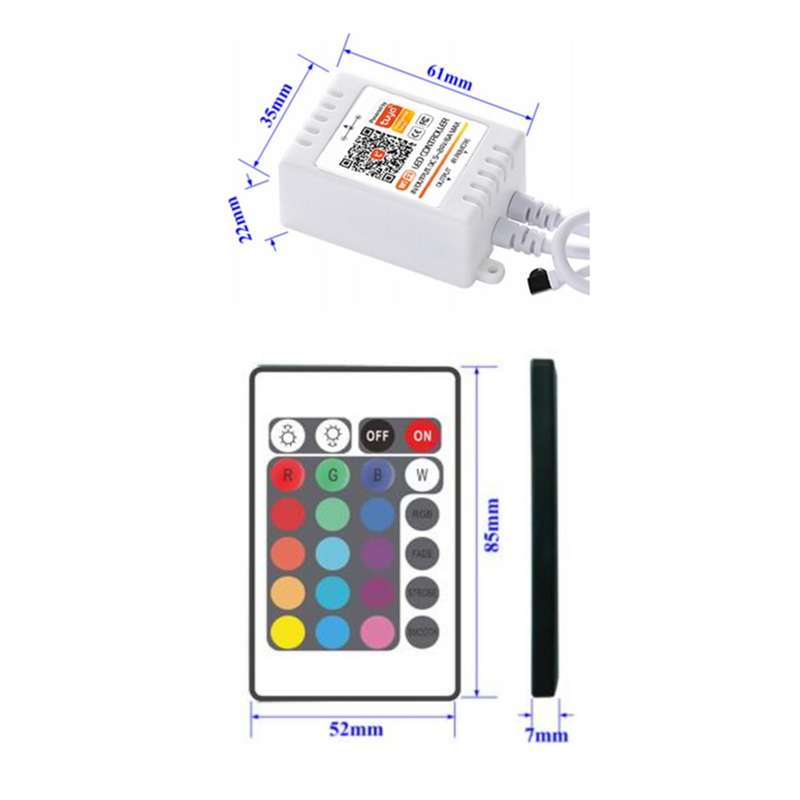

Specification: Controller: Model No. OP-GP02(RGBW) Working temperature: -20a-60a Input voltage: DC5-24V Output: RGBW: 4 channels Max output current: a6A Controller size: L61xW35xH22mm Output power: 5V:a30W, 12Va72W, 24V:a144W Static Power: <1W
Connection mode: Common anode
Remote Control: Working voltage: 3V, 2*AAA batteries External dimension: L85mm*W52*H7mm Remote control distance: 8-10m

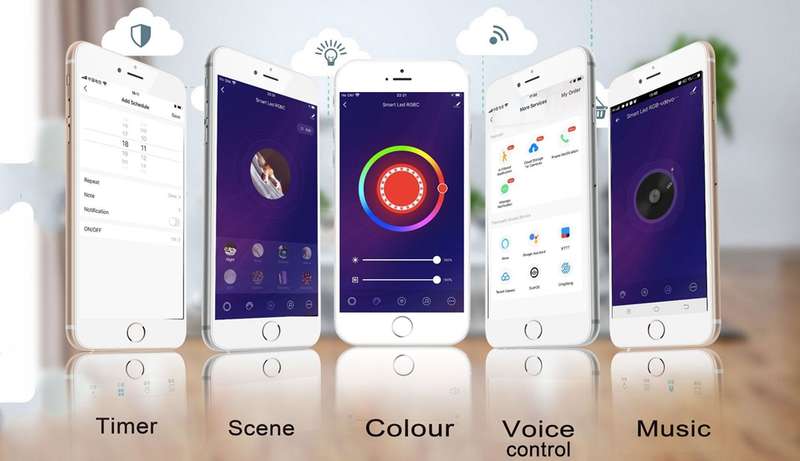

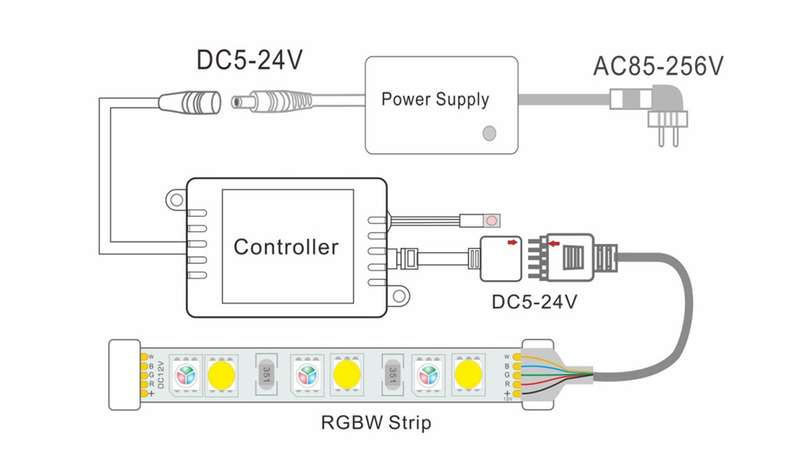

How tu Use: 1. Install the control software APP-Tuya Smart on the mobile phone before use. The installation methods are as follows: 1) Scan the following QR code to download and install the software APP; 2) Search for Tuya Smart in Google Play Store (Android phones) or App Store (Apple phones) to download and install. 2. Download and install the software. After the installation is complete, turn on the mobile wifi and connect to the router. 3. Connect the load line to the controller part first, then connet to the power; make sure that there is no short circuit between the connecting lines before powering on. 4. Open the APP software Tuya Smart on the mobile phone: If you don`t have an account, you need to click Create New Account to register an account; if you already have an account, you can log in and use your existing account directly. After registration, log in and enter the homepage My Home, click Add Device or the + sign in the upper right corner to add a device, select the Lighting line item in the Manual Add column, and select Lighting (Wi-Fi), Enter the Add Device page; 5. Please configure the WIFI device to the network: Operation method: make sure to power off the WIFI controller in the power-on state first, then repeat power on 5 times, the light will flash quickly and enter the network distribution state; Select the wifi routing network, enter the router password and click Next ----> select Indicator flashes quickly for 0.5 seconds/time ----> APP will prompt device added successfully, wait for the controller to connect successfully, the output light will stop flashing quickly. 6. After adding the equipment, enter the lighting control interface. There are four options of white light mode, color light mode, scene mode and timing to control the lighting.
Package included: 1*RGBW Smart LED Controller 1*Remote Control
