Description:

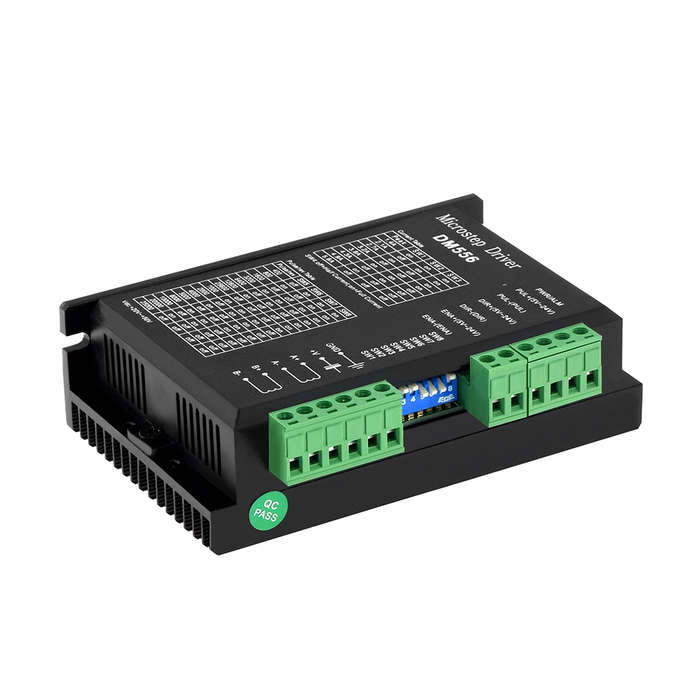

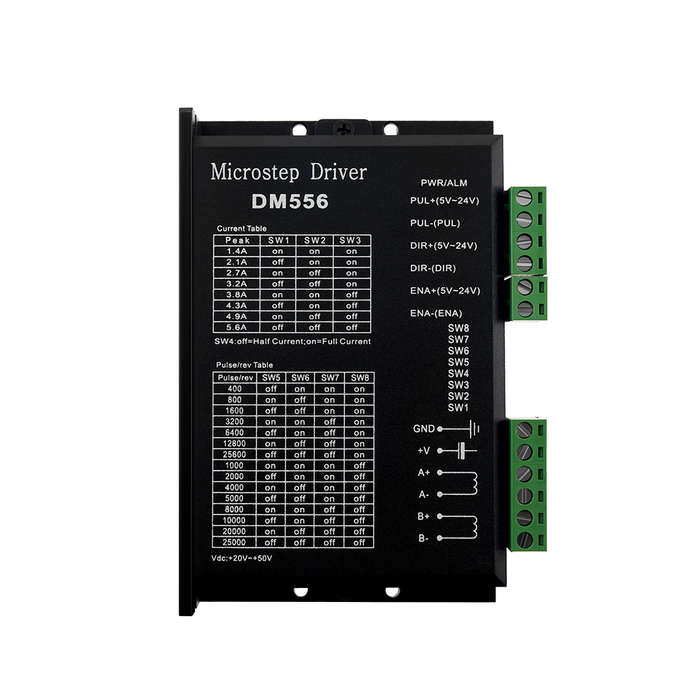

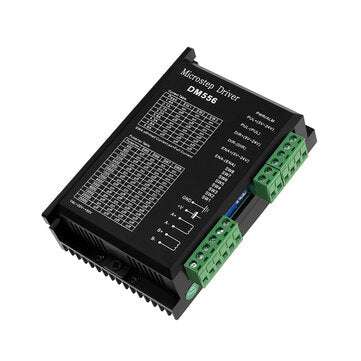

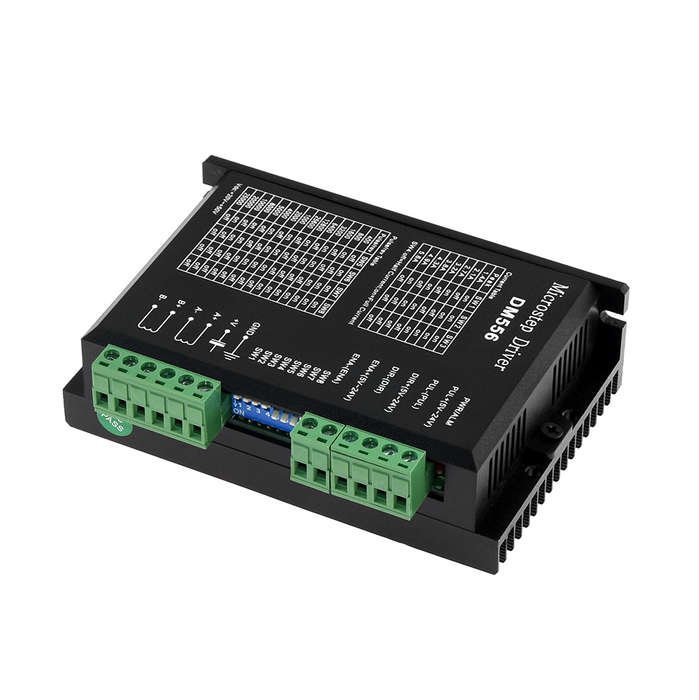

TWO TREES DM556 Stepper Motor Driver 2 Phase 5.6A for 57 86 Stepper Motor NEMA23 NEMA34 Stepper Motor Controller


Specifications:

Product NameStepper Motor Driver
ModelDM556
Application42/57 stepper motor
Input VoltageDC 20-50V
Output Current1.0-5.6A, 8 level adjustable, 0.5A resolution
Drive MethodBipolar constant current PWM drive
Pulse Response Frequency200kHz(Max)
Insulation Resistance>500MOmega
Insulation Strength500V/min
Dimensions118*75.5*34mm / 4.6*3.0*1.3in
Weight270g / 9.5oz
Quantity1 Pc Digital Stepper Motor


Features:

1. 24V-50V DC power supply, 8 level adjustable output current 1.0A-5.6A.

2. Bipolar constant current PWM drive output.

3. Optical isolation input signal, pulse response frequency up to 200kHz.

4. Strong anti-interference capability, achieve high precision positioning in complicated environment.

5. Low speed zero vibration, and low noise.

6. Fit for 42/57 stepper motor and widely used in automatic packaging machine, engraving machine and other automation equipments.


Package Included:

1 Pc
Digital Stepper Motor


More Details:
