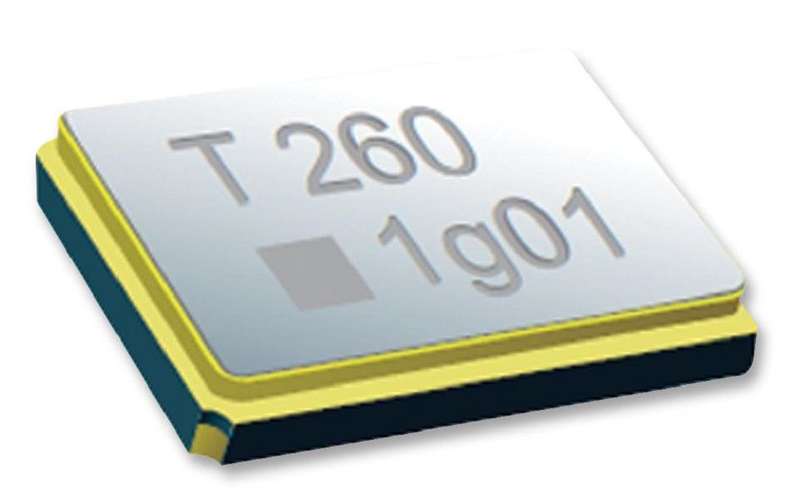

TXC (2308722) Crystal, 24 MHz, SMD, 10 ppm, 10 pF, 10 ppm, 7M

Product InformationFrequency Nom: 24MHzCrystal Case: SMD, 3.2mm x 2.5mmFrequency Stability + / -: 10ppmLoad Capacitance: 10pFFrequency Tolerance + / -: 10ppmProduct Range: 7MOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct OverviewThe 7M-24.000MEEQ-T is a 3.2 x 2.5 x 0.7mm 10ppm surface-mount Quartz Crystalwith seam sealing. The 7M series crystal with high precision and high frequencystability, extremely good for reducing EMI effect and for Bluetooth, wirelesscommunication set, DSC, PDA and mobile phone applications.Fundamental operation mode60R Maximum equivalent series resistance3pF Maximum shunt capacitance100µW Maximum drive levelApplicationsClock & Timing, Wireless, Communications & Networking, Consumer Electronics
