>>>Manual: Click here to open<<<
Support MimiClaw Openclaw Open Source: >>>github<<<

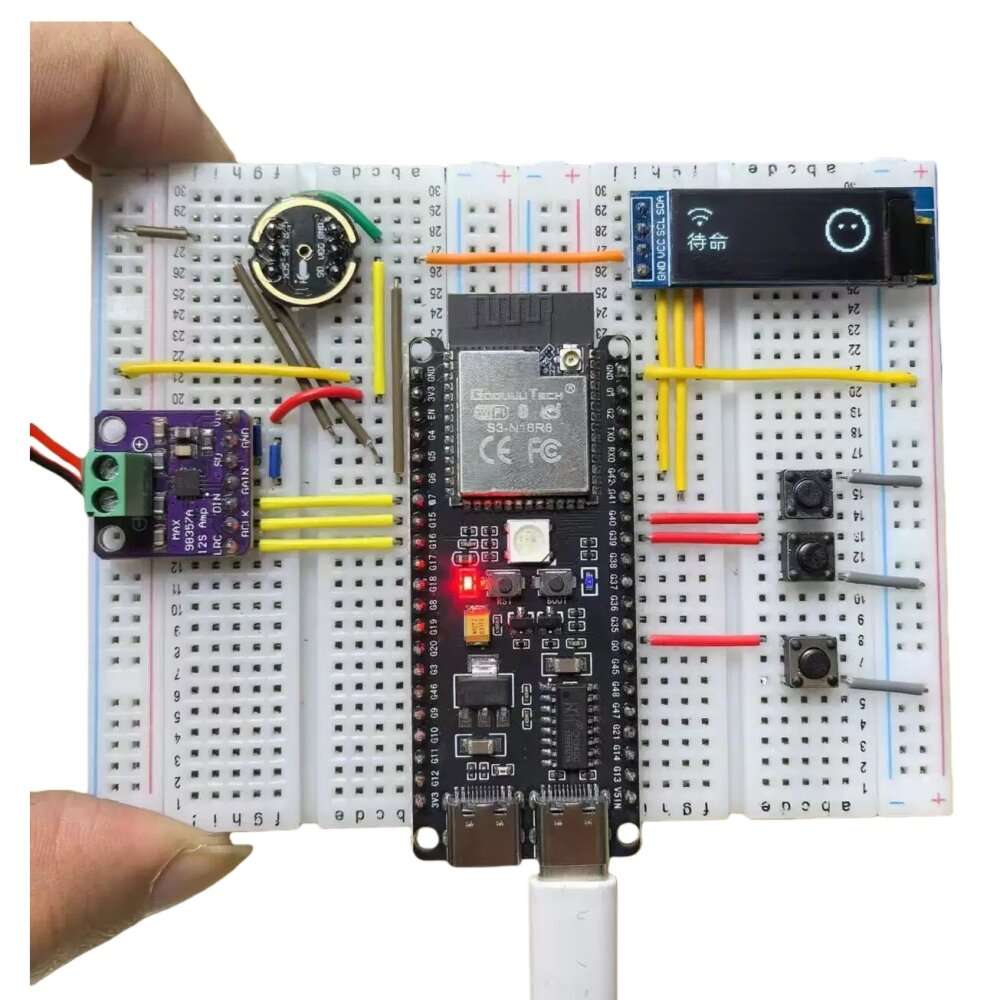

Introduction:This is a DIY kit that allows you to quickly build a prototype of the "Xiao Zhi AI Chatbot" on a breadboard, using simple hardware and speech recognition technology. It includes key components such as the ESP32-S3-DevKitC-1 development board, MEMS digital microphone (INMP441), digital amplifier (MAX98357A), 128x32 OLED screen, and cavity speaker, supporting speech input and playback, with reserved interfaces for further expansion to achieve basic human-machine interaction functionality.
Specification:

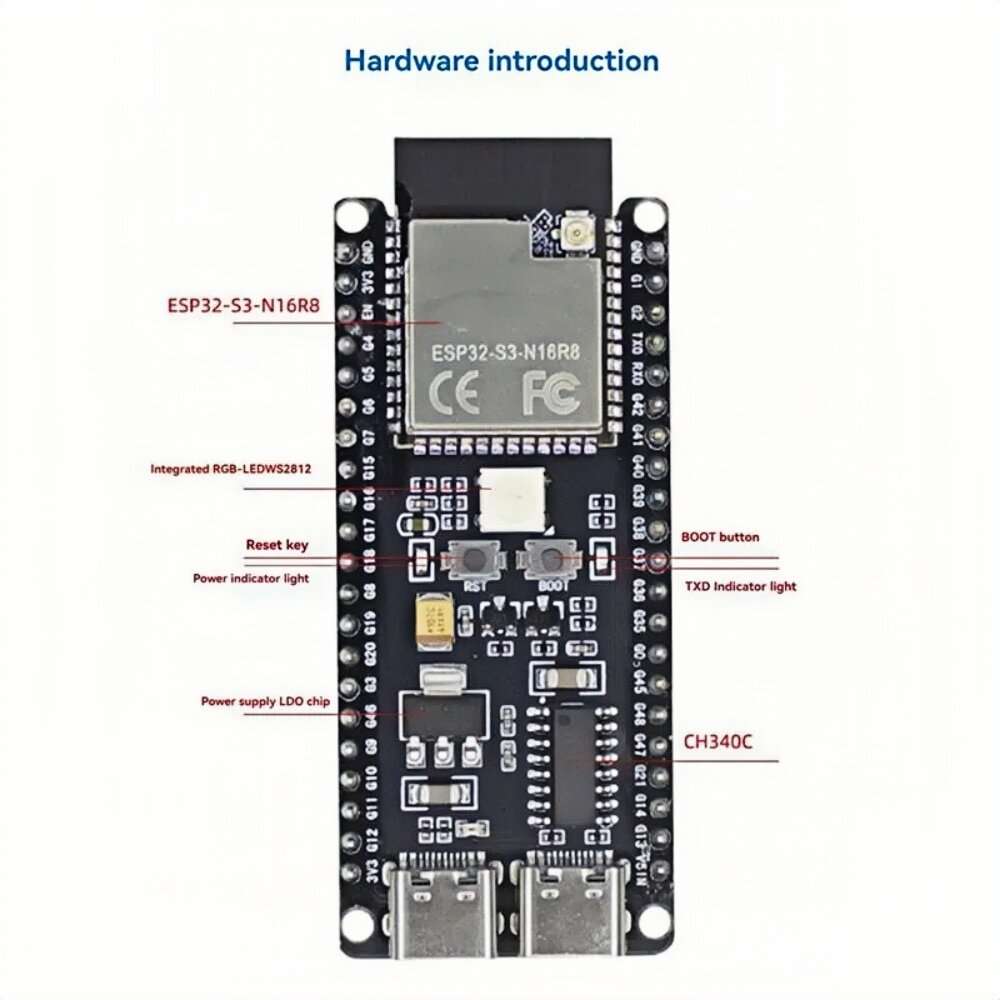

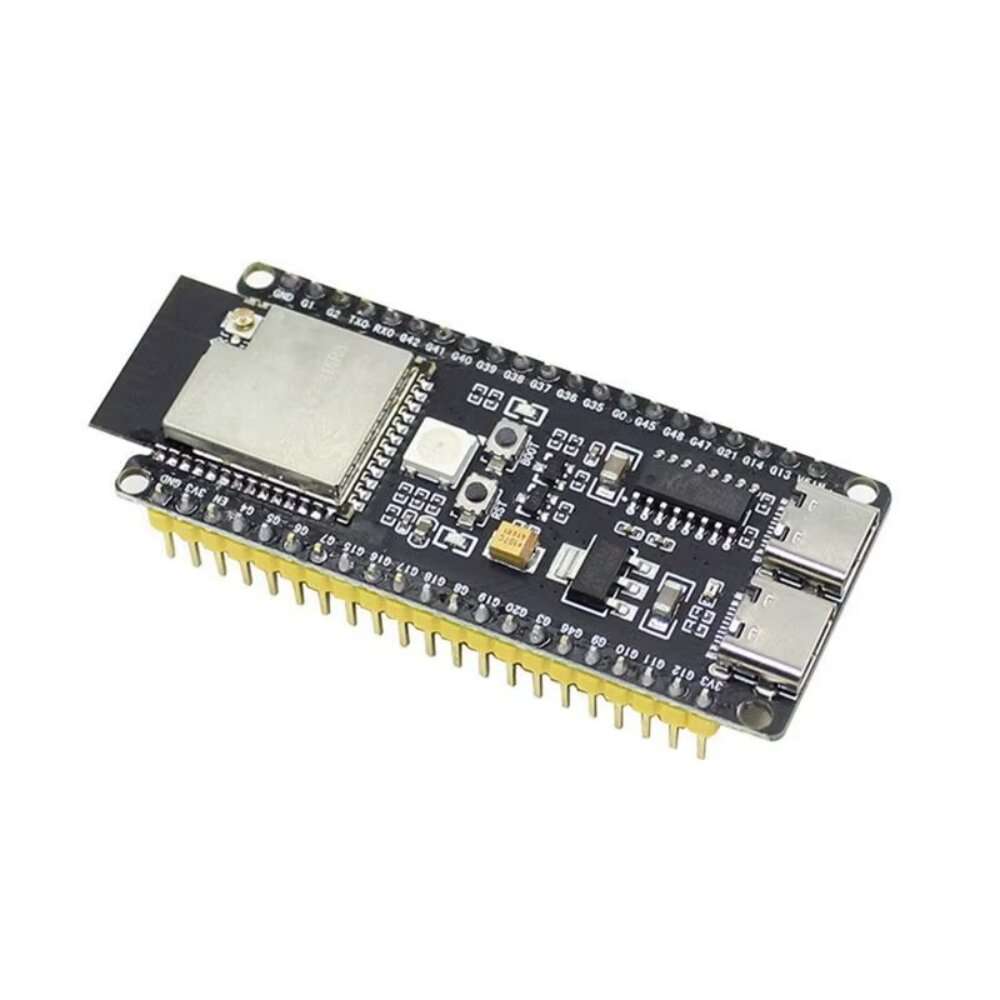

Model: ESP32-S3-N16R8 Development Board Kit
Processor: ESP32-S3 (Dual-core Xtensa LX7 architecture)
Power Supply Voltage: 5V
Operating Current: 100mA
Interface: Dual USB-C ports and programmable GPIO pins
Features:
1. Integrated Wi-Fi and Bluetooth 5 capabilities for enhanced connectivity.
2. AI support through ESP-DSP and ESPNN libraries for neural network acceleration.
3. Encryptable secure communication utilizing AES-XTS encryption and HMAC.
4. Rich multiple interfaces: SPI, UART, PWM, I2C, SD/MMC, ADC, and GPIO support.
5. Interactive hardware features including OLED display, audio integration, and microphone input.
6. Compatible with the ESP-IDF development framework for rapid IoT application building.
Package Includes:
1 x ESP32-S3-N16R8 Development Board Kit
