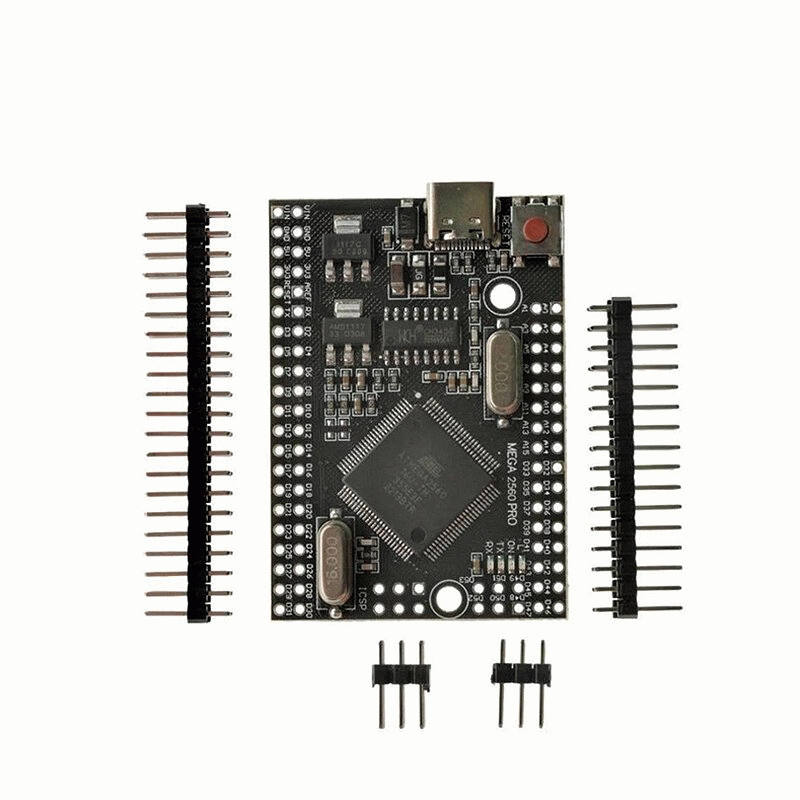

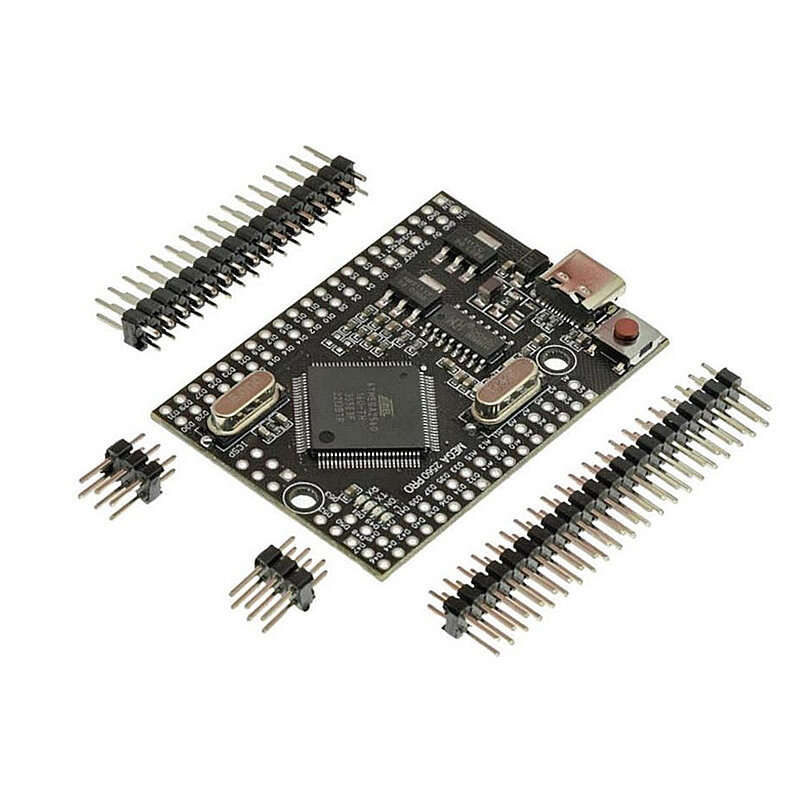

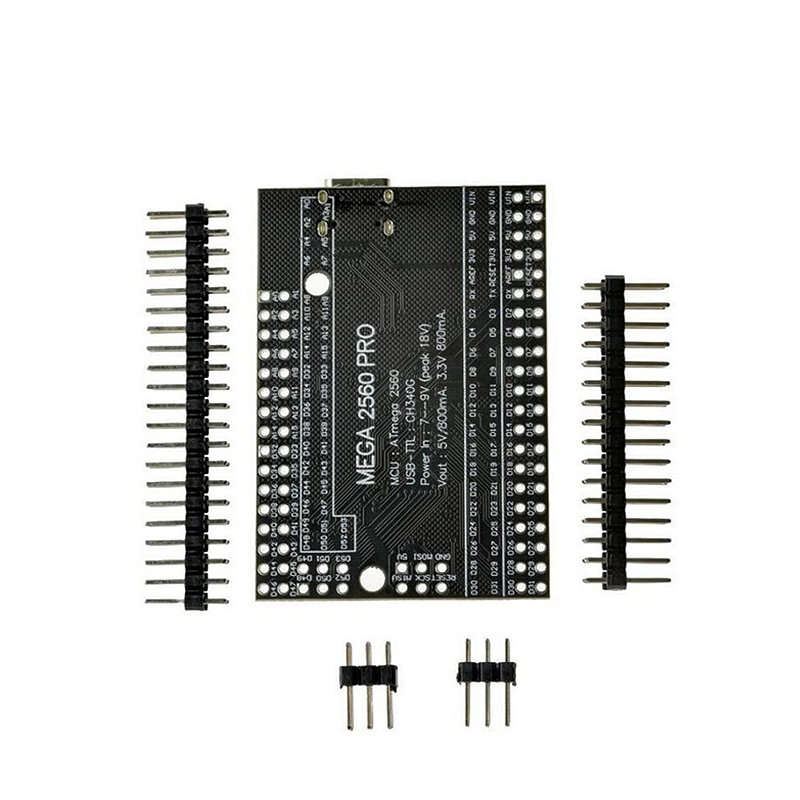

Name: Type-C - Mega2560 Mega 2560 Pro MINI 5V (Embed) CH340G ATmega2560-16AU Micro/Type-C with Male Pinhea
SKU: 1998378-POA0435441
Price: 733.31 ZAR
Availability: InStock

Type-C - Mega2560 Mega 2560 Pro MINI 5V (Embed) CH340G ATmega2560-16AU Micro/Type-C with Male Pinhea

New

1 available

Indicative market price: R1,089.55

Only 1 left – grab it before it’s gone!

R733.31

33% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 10 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10422

94.63 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1998378-POA0435441

Bob Shop ID

679094079

Specifications:

Main Control Chip: ATmega2560
Driver Chip: CH340
Power Output: 5V/800mA
Power Input: 5V
External Power Input (VIN): 7-9V
Power Consumption: 5V 220mA
Interface: TYPE-C/MICRO
Main Control Chip Crystal Oscillator: 16MHz
Working Voltage: 5V
Digital Interfaces: 54
Analog Interfaces: 16
Memory Size: 256KB
RAM: 8KB
ROM: 4KB
Interface Type: ISP
Working Temperature: -40°C to 85°C
Size: 38mm x 54mm

Features:

Embed version of Mega 2560 CH340G/ATmega2560 - compatible with Mega 2560 board. Built on the ATmega2560 microcontroller and USB-UART interface chip CH340G.Board have compact size 38x55mm. It is good solution, to make your final project on solder protoboard.Board for functionality similar to the Mega 2560. It is embed board, but the same stable, and uses the original chips ATmega2560 (16 MHz).The board used the chip CH340G as converter UART-USB. When you work in the frequency 12Mhz, giving a stable result of data exchange (need install drivers to computer).Mega PRO (Embed) 2560 CH340G / ATmega2560 - connects to the computer via microUSB cable (used for almost all Android smartphones).You can supply power to board through the MicroUSB connector or to power pinheaders. The voltage regulator (LDO) can deal with incoming voltage from 6V to 9V (peack 18V) DC. Output current for 5V - about 800mA, for 3.3V - about 800mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.
