Frequency Range VHF 136-174MHz VHF 245-246MHz VHF 350-390MHz UHF 400-470MHz UHF 465-520MHz | |
199 memory channels | Channle spacing5,10,12.5,20,25,35,50Hz |
CTCSS/DCS code | VOX time-lapse function |
VOX grade setting | Multi and priority scan function |
Voice prompt | Emergency alarm |
Groups calls | Channel name setting and display |
Transmitter time-out timer(TOT) | Auto keypad lock |
FM radio receiver function | PC software programmable |
Cable clone | High/low power selective |
Beep setting | Frequency difference setting |
Voltage display | Battery saving function |
Power on display | Power on message setting |

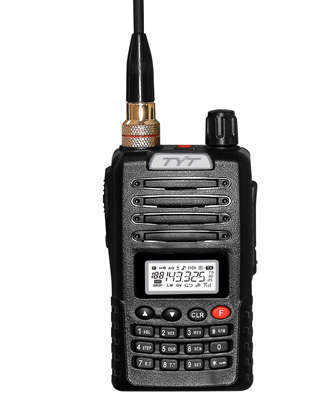

Item number | TYT-900 | |
General | ||
Frequency Range | 136-174mHz /245-246/350-390/400-470/465-520MHz(optional) | |
Channel Capacity | 199 channels | |
Channel Spacing | 5kHz/6.25kHz/10kHz/ 12.5kHz/ 20kHz/25kHz/30kHz/50kHz | |
Frequency Stability | ±2.5ppm | |
Operating Temperature | -25ï +60 | |
Antenna Impedance | 50Ω | |
Operating Voltage | 7.2V | |
Dimensions | 115x 56x 30mm | |
Weight | 220g(Include battery & antenna) | |
Battery | 1100/1300mAh (Li-ion Battery) | |
Transmitter | ||
RF output power | 4W/5W | |
Modulation Type | 16kΦF3E | |
Modulation Limiting | ≤5kHz | |
Modulation Character | +3dB / -3dB | |
Spurious Radiation | 0.75μW | |
Adjacent Ch. power | ≥65dB | |
Max Fr. Deviation | ≤5kHz | |
Occupied Bandwidth | ≤16KHz | |
Receiver | ||
Receiving Sensitivity | 0.25μV | |
Adjacent Ch. Selectivity | 60dB | |
Inter-modulation | 60dB | |
Co-channel suppression | -8dB | |
Audio Response | +2dB -10dB | |
Audio Output | 500mW | |
Audio Distortion | ≤3% | |

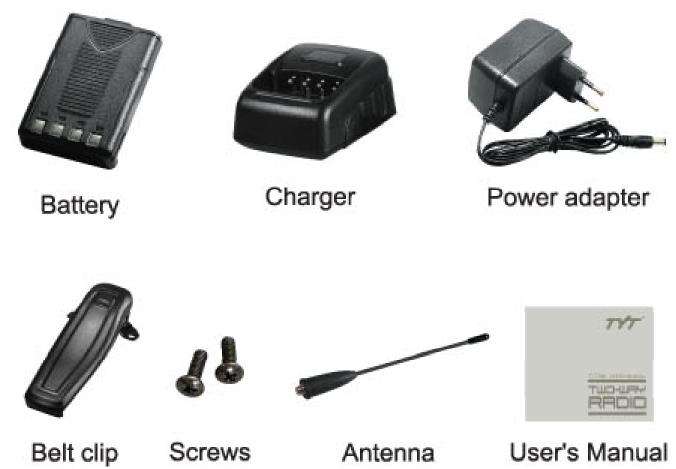

Includes the following items in the package:
