U.FL Socket IPEX/IPX Connector U.FL-R-SMT Patch Antenna for PCB

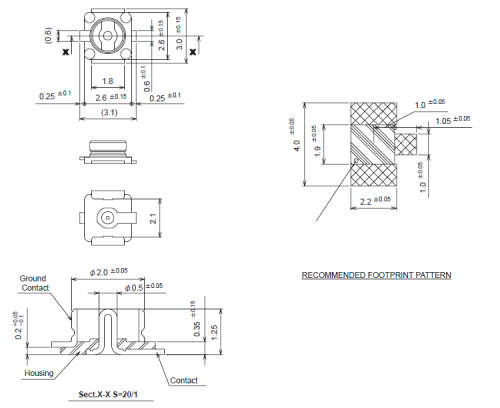

20279-001E IPEX seat 3 x 3 x 1.25mm
Voltage: 200V AC
Frequency range: 0-4GHZ
VSWR: 1.3Max (0-3GHZ 1.2Max)
Characteristic impedance: 50 Ohm
Insulation Resistance: 500Mohm Min
Operating temperature: -40 + 85°C
Material: Ingredients copper, gold-plated housing
For PC, tablet, wireless communications modules and other products.
This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
