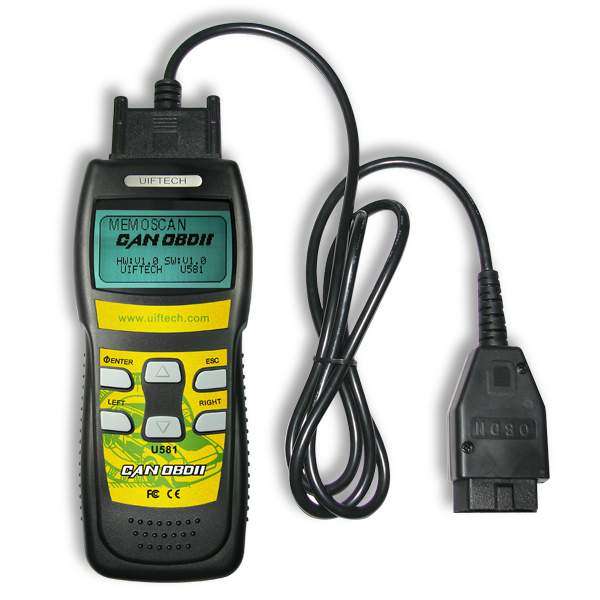

Tool Description
LCD Display , 128*64 pixel display with contrast adjustment, Backlit
Enter key selects displayed
Exit key go back to the previous screens
Up/down arrows-moves the selection pointer and scrolls up or down.
LEFT/RIGHT arrows-Select responses and moves cursor.
OBDII connector cable, connect car and the scan tool
Battery compartment
Product Specifications
• Display-Backlit LCD,128*64 pixel display.
• Operating Temperature- 0 to 50
• Internal Power- 9v Cell
• External Power: 10.0 to 15.5 vols provided via vehicle battery
• Update by internet
Dimensions:
• 195mm Length 81mm Width 32mm Height
• OBDII connector , 1500mm
Product Features
Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols)
Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)
trouble codes display on the LCD, needn't the code book.
Scanning live data
Reading Freeze Frame Data
Testing I/M Reading Status
Reading vehicle info
Rescanning Data
VEHICLE COVERAGE:
• GM '96 - Current Year (OBD-II)
• Ford '96 - Current Year (OBD-II)
• Chrysler '96 - Current Year (OBD-II)
• Toyota '96 - Current Year (OBD-II)
• Honda '96 - Current Year (OBD-II)
• NISSAN '96 - Current Year (OBD-II)
• All other Asian and European '96 - Current Year (OBD-II)
• All new CAN protocol cars.
