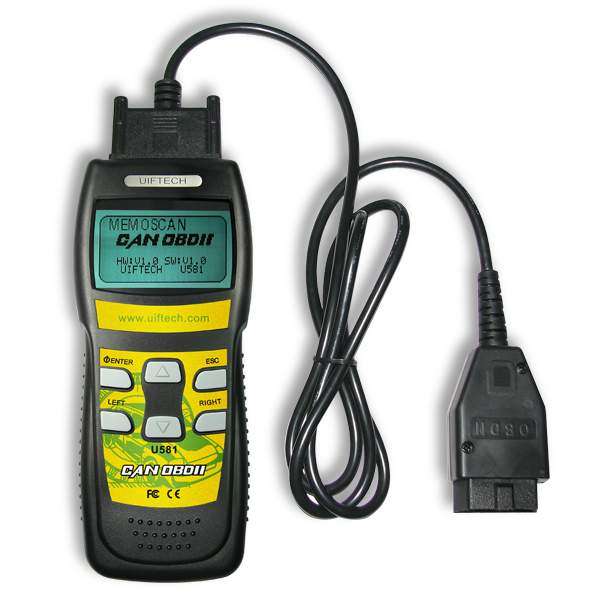

U581 CAN OBDII/EOBDII Memo Scanner (live data)

U581 CAN OBDII/EOBDII Memo Scanner (live data)

Tool Description
LCD Display , 128*64 pixel display with contrast adjustment, Backlit

Enter key selects displayed

Exit key go back to the previous screens

Up/down arrows-moves the selection pointer and scrolls up or down.

LEFT/RIGHT arrows-Select responses and moves cursor.

OBDII connector cable, connect car and the scan tool

Battery compartment

This is the Original product that can be updated via the internet unlike the copies - Do not be fooled by the cheaper copies

Product Specifications
• Display-Backlit LCD,128*64 pixel display.
• Operating Temperature- 0 to 50
• Internal Power- 9v Cell
• External Power: 10.0 to 15.5 volts provided via vehicle battery
• Update by internet

Dimensions:
• 195mm Length 81mm Width 32mm Height
• OBDII connector , 1500mm

Product Features
Works on most 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols)

Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)

trouble codes display on the LCD, do not need a code book.

Scanning live data

Reading Freeze Frame Data

Testing I/M Reading Status

Reading vehicle info

Rescanning Data

VEHICLE COVERAGE:
• GM '96 - Current Year (OBD-II)
• Ford '96 - Current Year (OBD-II)
• Chrysler '96 - Current Year (OBD-II)
• Toyota '96 - Current Year (OBD-II)
• Honda '96 - Current Year (OBD-II)
• NISSAN '96 - Current Year (OBD-II)
• Most other Asian and European '96 - Current Year (OBD-II)
• Most new CAN protocol cars.
