Name: UART interface Fingerprint Recognition Module For Raspberry Pi
SKU: 1104719
Price: 1512.79 ZAR
Availability: SoldOut

UART interface Fingerprint Recognition Module For Raspberry Pi

New

30 were available

Indicative market price: R2,699.00

R1,512.79

44% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

1104719

Bob Shop ID

263728650

Introduce:

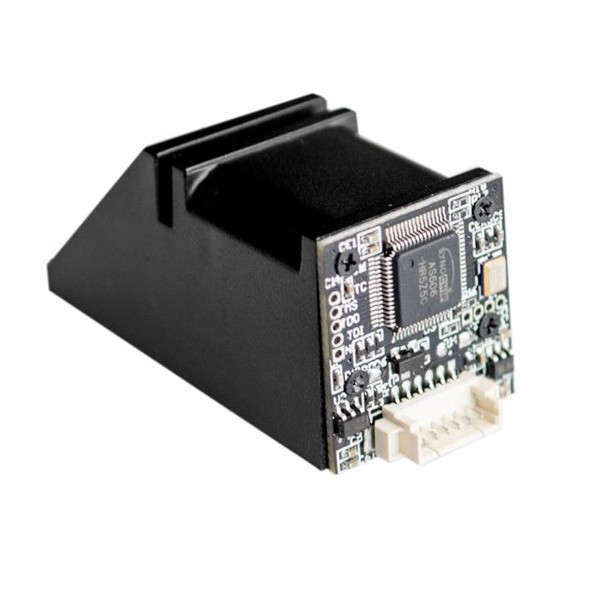

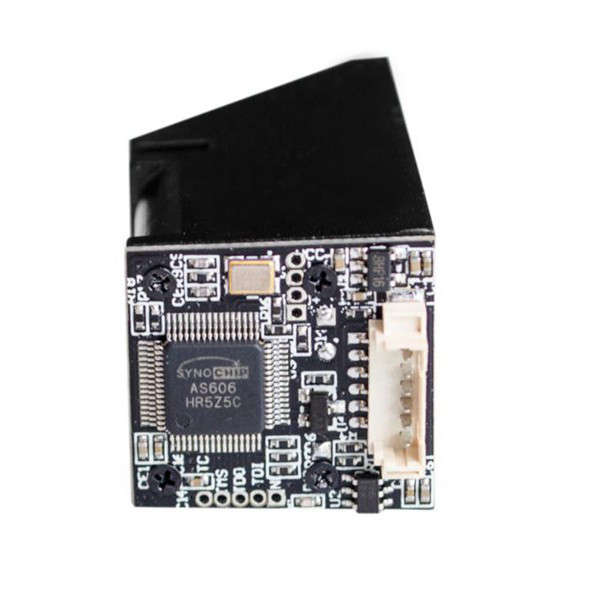

Secure your project with biometrics - this all-in-one optical fingerprint sensor will make adding fingerprint detection and verification super simple. These modules are typically used in safes - there's a high powered DSP chip that does the image rendering, calculation, feature-finding and searching. Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search. You can also enroll new fingers directly - up to 1000 finger prints can be stored in the onboard FLASH memory. There's a green LED in the lens that lights up during a photo so you know its working.
We like this particular sensor because not only is it easy to use, it also comes with fairly straight-forward Windows software that makes testing the module simple - you can even enroll using the software and see an image of the fingerprint on your computer screen. But, of course, we wouldn't leave you a datasheet and a "good luck!" - we wrote a full forArduino library so that you can get running in under 10 minutes. The library can enroll and search so its perfect for any project. We've also written a detailed tutorial on wiring and use. This is by far the best fingerprint sensor you can get.

Usage is very simple:
As long as there are serial microcontroller , embedded modules can operate this, MSP430, 51, AVR, PIC, ARM, FPGA, Raspberry Pi, forArduino controller so you can operate this module. This module is controlled through the serial port, you can use the computer's serial port to control this module.
Products from optical fingerprint sensor, high-speed DSP processors, high-performance fingerprint matching algorithms, such as large -capacity FLASH chip hardware and software composition. The fingerprint module is stable, functional, both fingerprint, a variety of functions fingerprint registration, fingerprint matching, fingerprint search.

Application:
Widely used fingerprint modules, fingerprint identification systems suitable for all from high-end to low-end .
For example:
Security fingerprint door locks , safes, gun cases, and finance;
Access control systems, industrial machines, POS machines, driver training, attendance and other identity areas;
Private club management, management software, licensing, and so on.

Specifications:
Supply voltage : DC 3.8 ~ 7.0V
Supply current : Current : <65mA
Peak current : <95mA
Fingerprint image time : < 0.5 seconds
Window size : 14.5 × 19.4 mm
Signature file : 256 bytes
Template files : 512 bytes
Storage capacity: 1,000
False accept rate (FAR): <0.001% ( security level 3 )
False reject rate (FRR): <1.0% ( security level 3 )
Search time: < 1.0 seconds ( 1:500 , the mean )
PC interface : UART (TTL logic level )
Communication baud rate (UART): (9600 × N) bps where N = 1 ~ 12 ( default value N = 6, ie 57600bps)
Working environment : Temperature :-20C to +60 C
Relative humidity : 40% RH to 85% RH ( non-condensing )
Storage environment : Temperature :-40C to +85 C
Relative humidity : <85% H ( non-condensing )
Dimensions (L × W × H): 47.65 × 20 × 21mm
Note: The example program provides forArduino , 51 ,STM32 and MEGA16 testing procedures , PC software (VC + + to write )
Package includes:

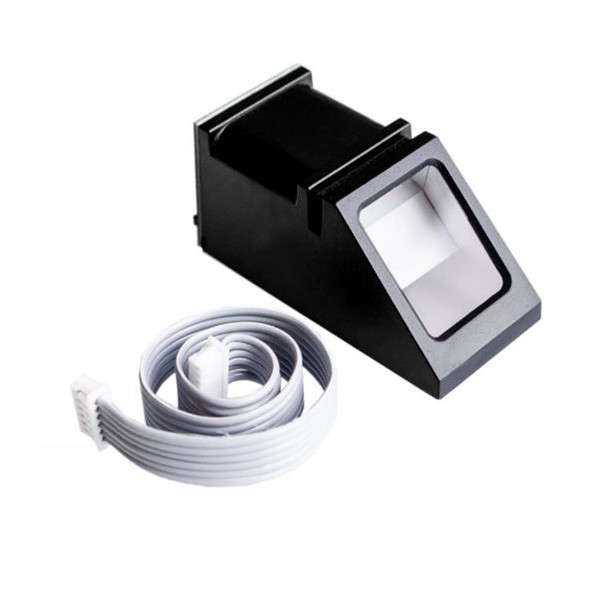

1 x Serial fingerprint module + cable
