Specification:

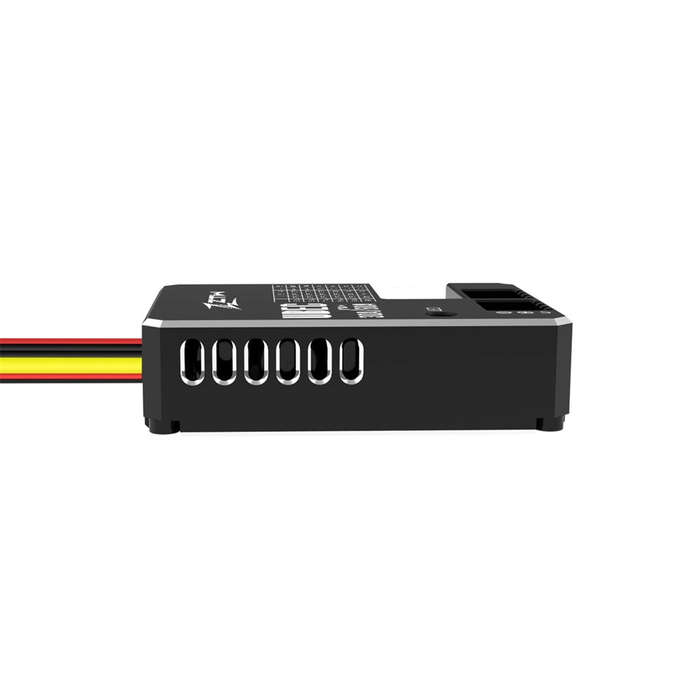

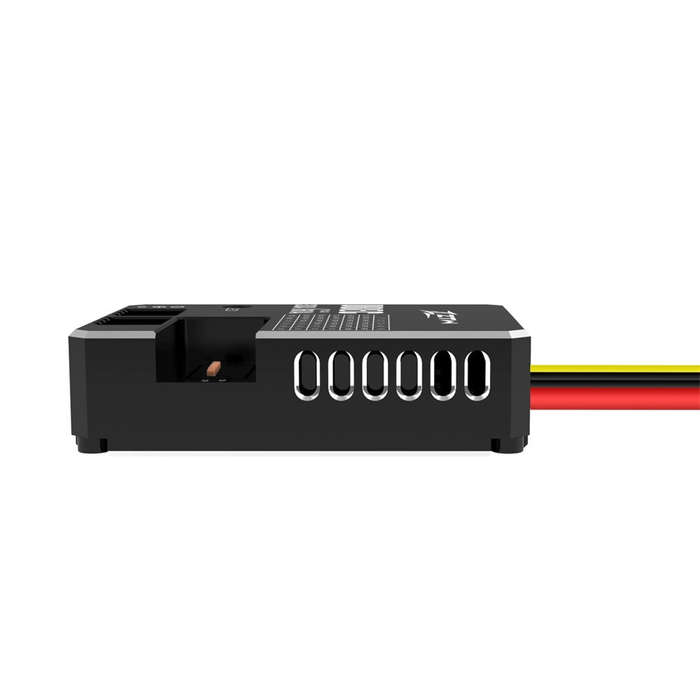

Brand: ZTW
Model: UBEC 30A
Main Input Voltage: 3-18S LiPo (9-80V)
Backup Input Voltage: 1-2S LiPo (3-9V)
Output Voltage: 5.2V/6.0V/7.4V/8.4V/9V/12V
Output Amperage: Continuous Current:30A; Peak Current: 60A
Size(L*W*H): 55x41x17mm
Weight: 75g
Features:
1. Metal housing for quick heat dissipation and less electromagnetic interference.
2. Adjustable output voltage (5.2V / 6.0V / 7.4V / 8.4V / 9V / 12V) is applicable for servos with different voltages.
3. Multiple protections include over current protection, , over heat protection, low voltage protection,(output end) short circuit protection, (output end) anti-backflow protection.
4. 8-channel parallel outputs for greater current endurance.
5. External switch allows to turn on/off the UBEC easily.
6. LED indicator for indicating the work status of the UBEC and the connecting status of the
