Ubiquiti 2.4GHz AirMax MIMO NanoStation Loco CPE - Ubiquiti

IN STOCK at EXTERNAL supplier.
If ordered before 10AM:
DELIVERED in 3-4 Days (main centres)
or 4-5 days (regional areas or large items)
COLLECTION from Geewiz available in 2-3 Days

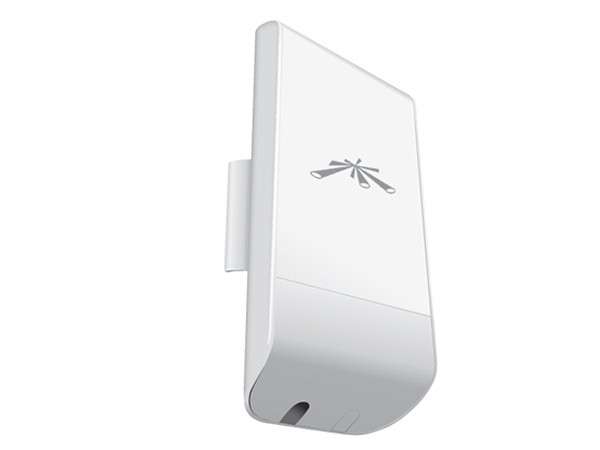

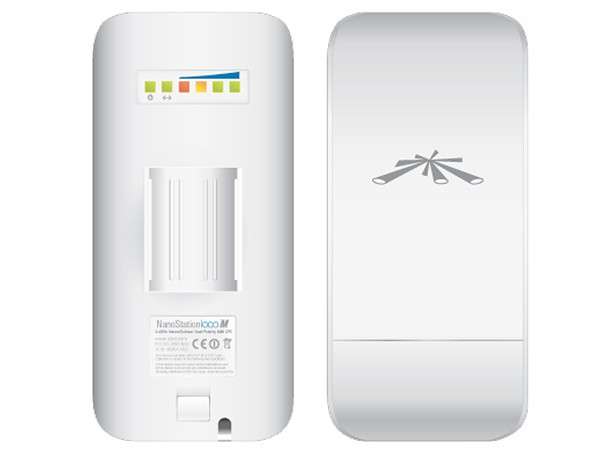

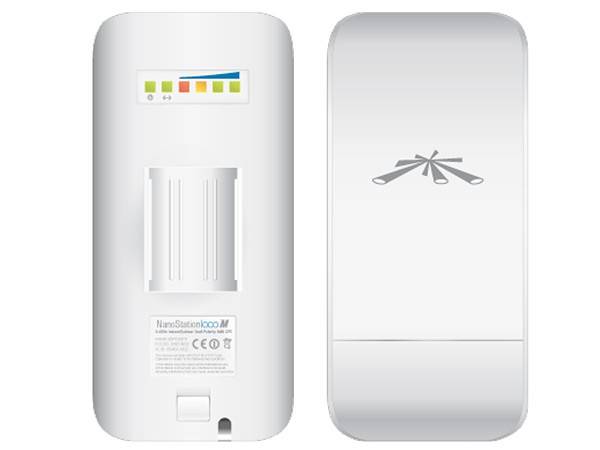

LOCO-M2, NanoStation Loco M by Ubiquiti, is the same concept as its predecessor but it now features redesigned sleek and elegant form-factors and an integrated AirMax (MIMO TDMA Protocol) Technology.

Unlike standard WiFi protocol, Ubiquiti's TDMA AirMax protocol allows each client to send and receive data using pre-designed time slots scheduled by an intelligent AP controller.

This 'time slot' method eliminates hidden node collisions and maximises air time efficiency.

It provides many performance improvements in latency, throughput, and scalability compared to other outdoor systems in its class.

The low cost, hi-performance and small form factors of NanoStation Loco M make it versatile and ideal in several different applications.

SPECIFICATIONS

- Processor Specs: Atheros MIPS 24KC, 400MHz
- Memory Information: 32MB SDRAM, 8MB Flash
- Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
- Gain: 8.5 dBi
- Cross-pol Isolation: 20 dB minimum
- Max VSWR: 1.4:1
- Beam-width: 60º (H-pol); 60º (V-pol); 60º (Elevation)
- Frequency Range: 2412-2462MHz
- Enclosure Characteristics: Outdoor UV Stabilised Plastic
- Power Method: Passive PoE (pairs 4,5+; 7,8 return)
- Operating Temperature: -30ºC to 75ºC
- Operating Humidity: 5 to 95% Condensing
- Shock and Vibration: ETSI300-019-1.4
- Power Supply (included): 24V, 0.5A POE
- Max Power Consumption: 5.5 Watts
- Antenna Gain: 8 dBi
- Polarisation: Dual Linear

- Dimensions: 163 x 31 x 80 mm
- Weight: 0.18kg
