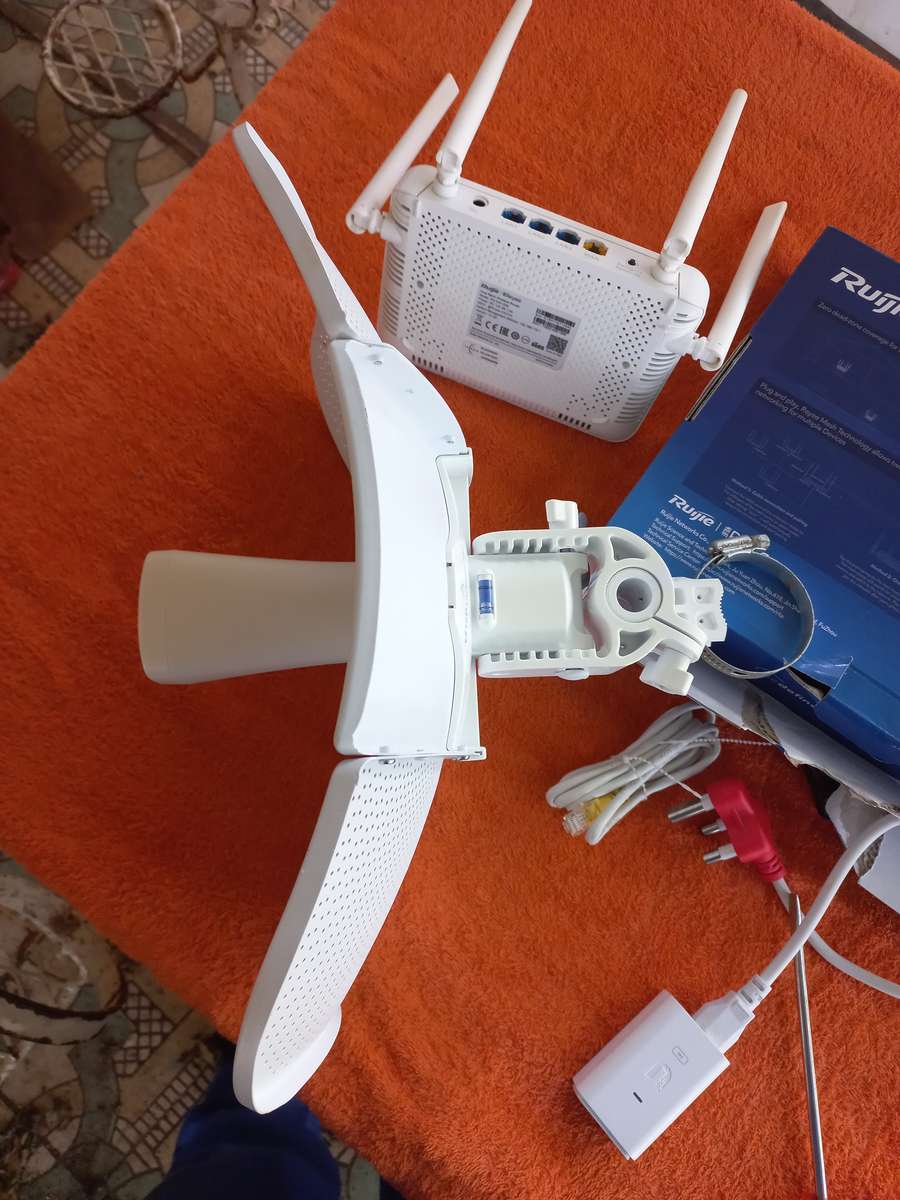

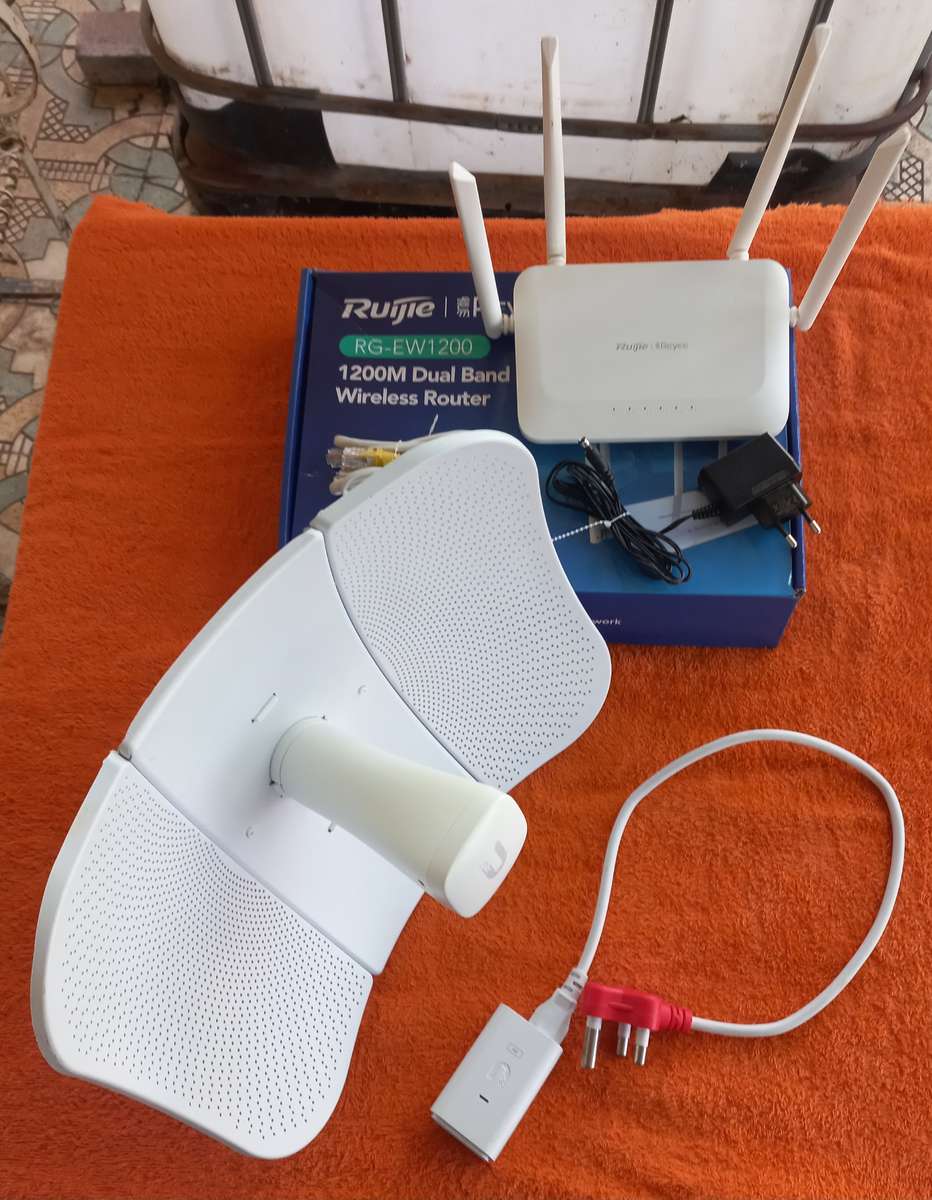

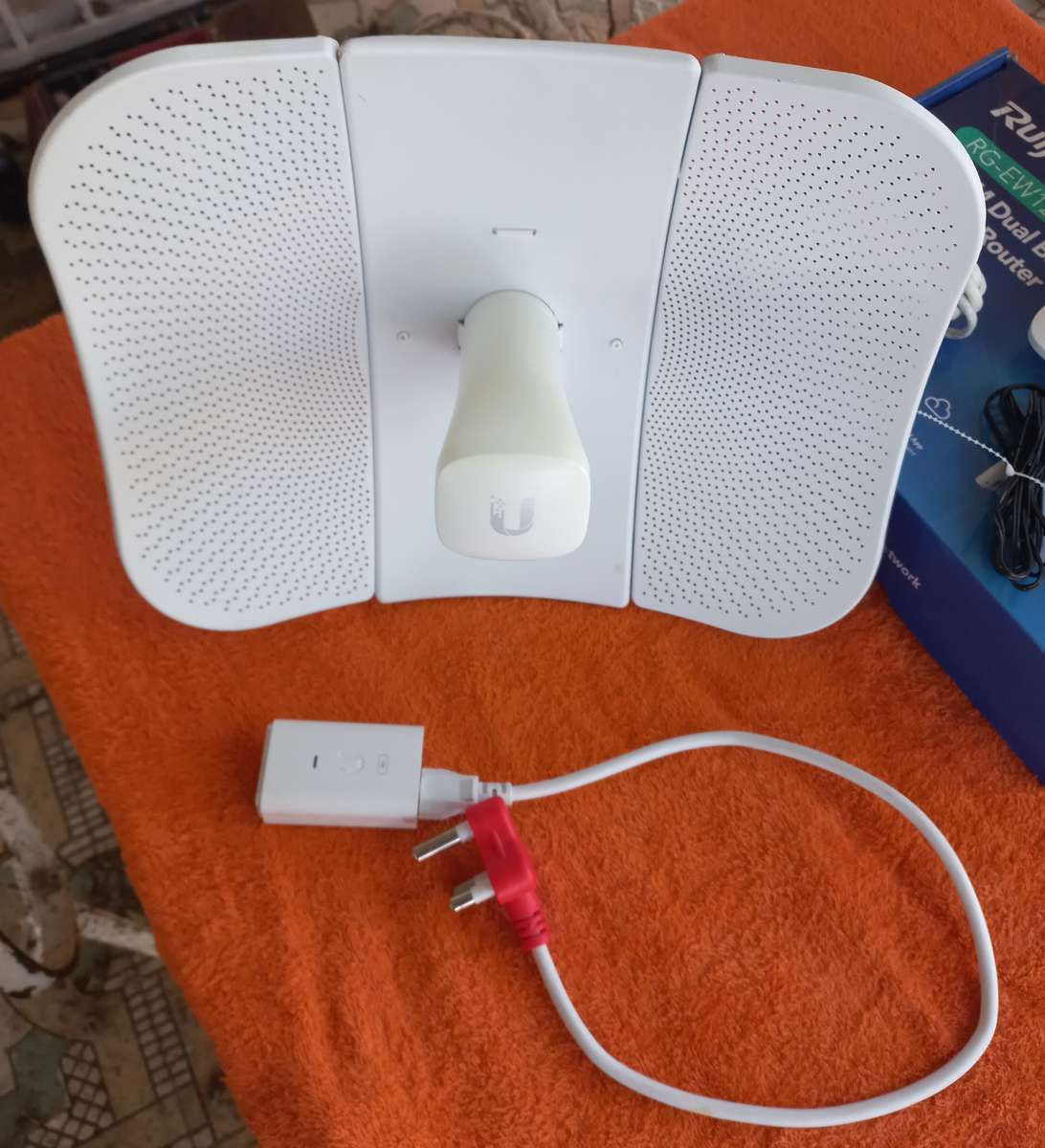

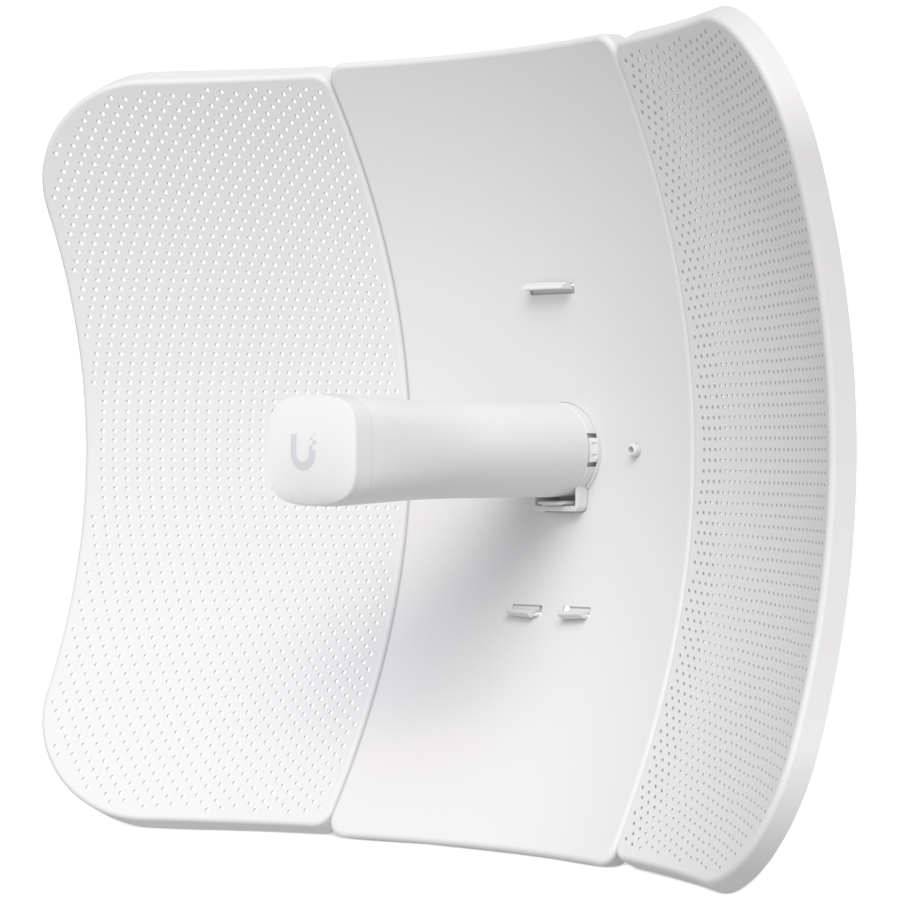

Ubiquiti 5GHz AirMAX LiteBeam AC CPE & Duel band wifi access point

Ubiquiti's LiteBeam 5AC Gen 2 directs RF energy in a tighter beam-width. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

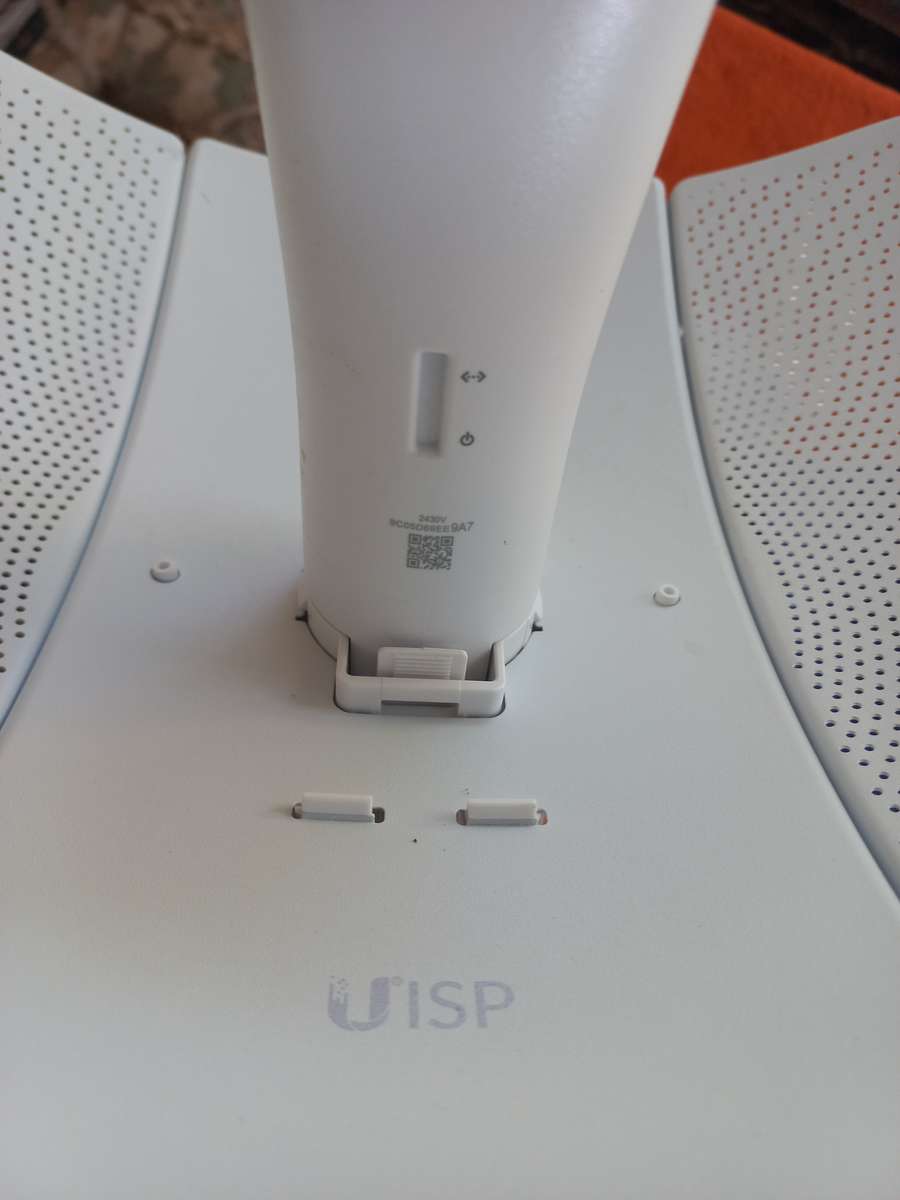

Ubiquiti's InnerFeed technology integrates the radio into the feed-horn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. The LiteBeam AC Gen2 is a lightweight, cost effective airMAX ac CPE with Dedicated Management Radio. It features enhanced protection against power surges and the LiteBeam 5AC Gen 2 also offers a more robust mount with separate azimuth and elevation adjustments.

Specifications:
- Operating Frequency Worldwide: 2412 - 2462 MHz & 5150 - 5875 MHz
- Gain: 23 dBi

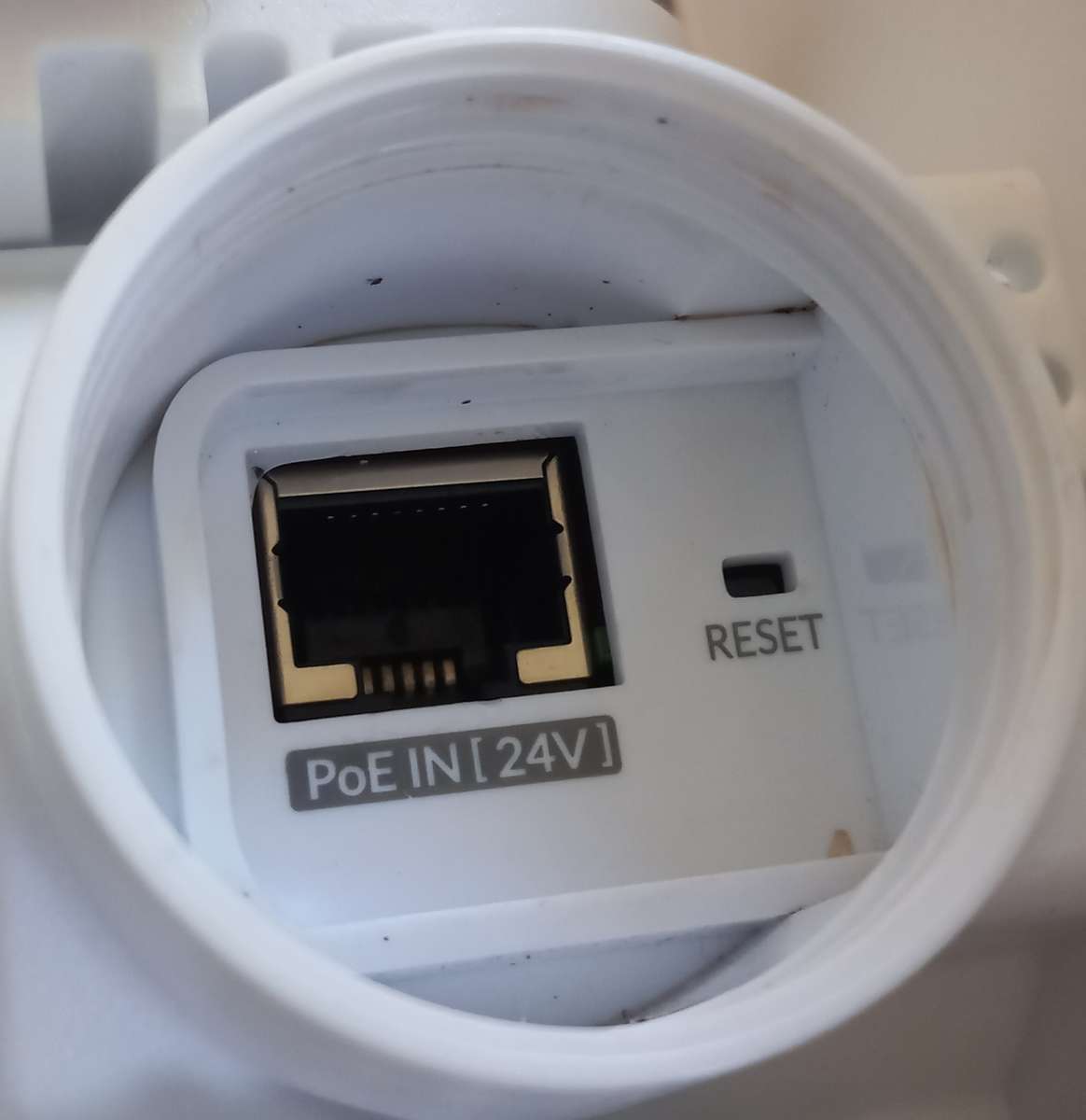

- Networking Interface: (1) 10/100/1000 Ethernet Port
- Processor Specs: MIPS 74Kc
- Memory: 64 MB DDR2

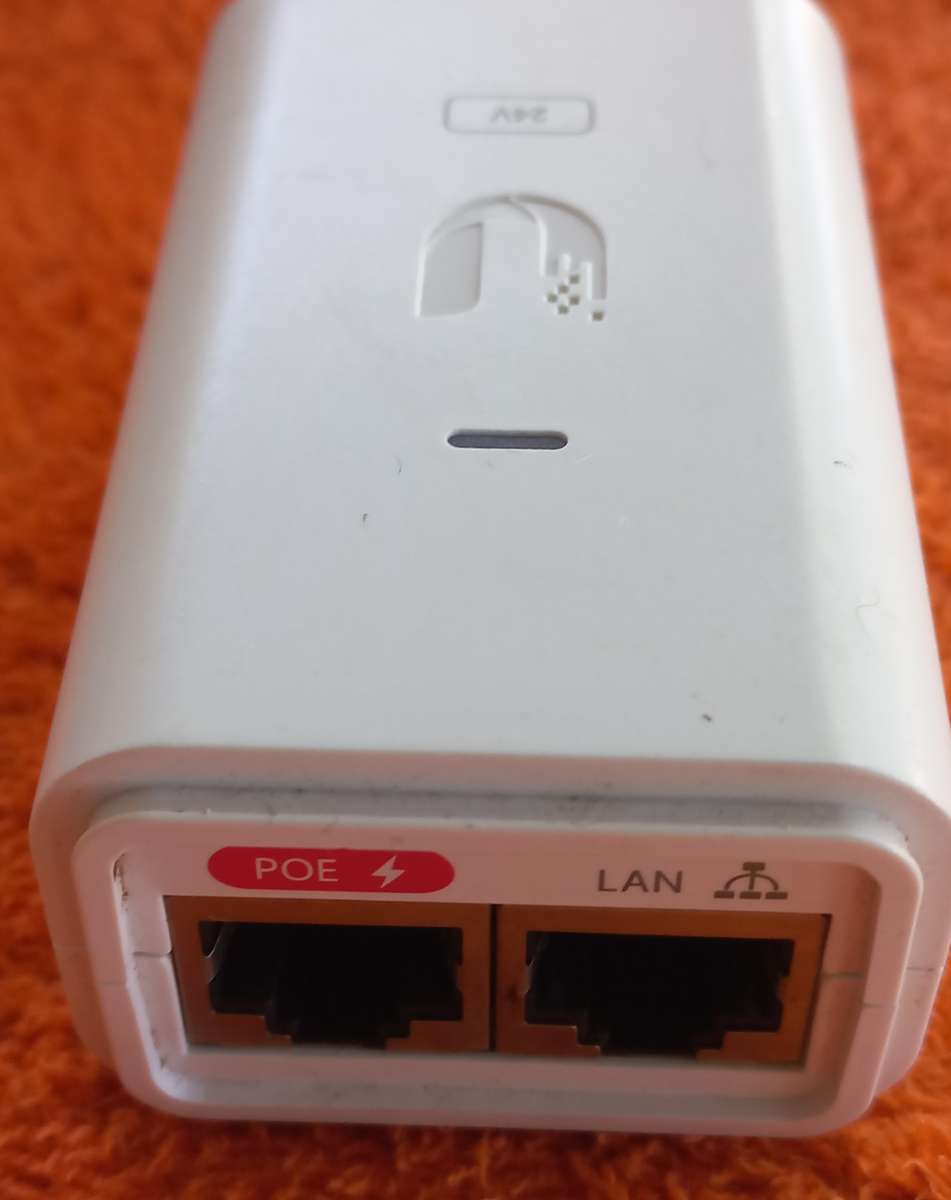

- Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
- Max. Power Consumption: 7W
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Supported Voltage Range: 24V +/- 10%
- LEDs: Power, Ethernet
- Channel Size PtP Mode: 10/20/30/40/50/60/80 MHz
- Channel Size PtMP Mode: 10/20/30/40 MHz
- Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC

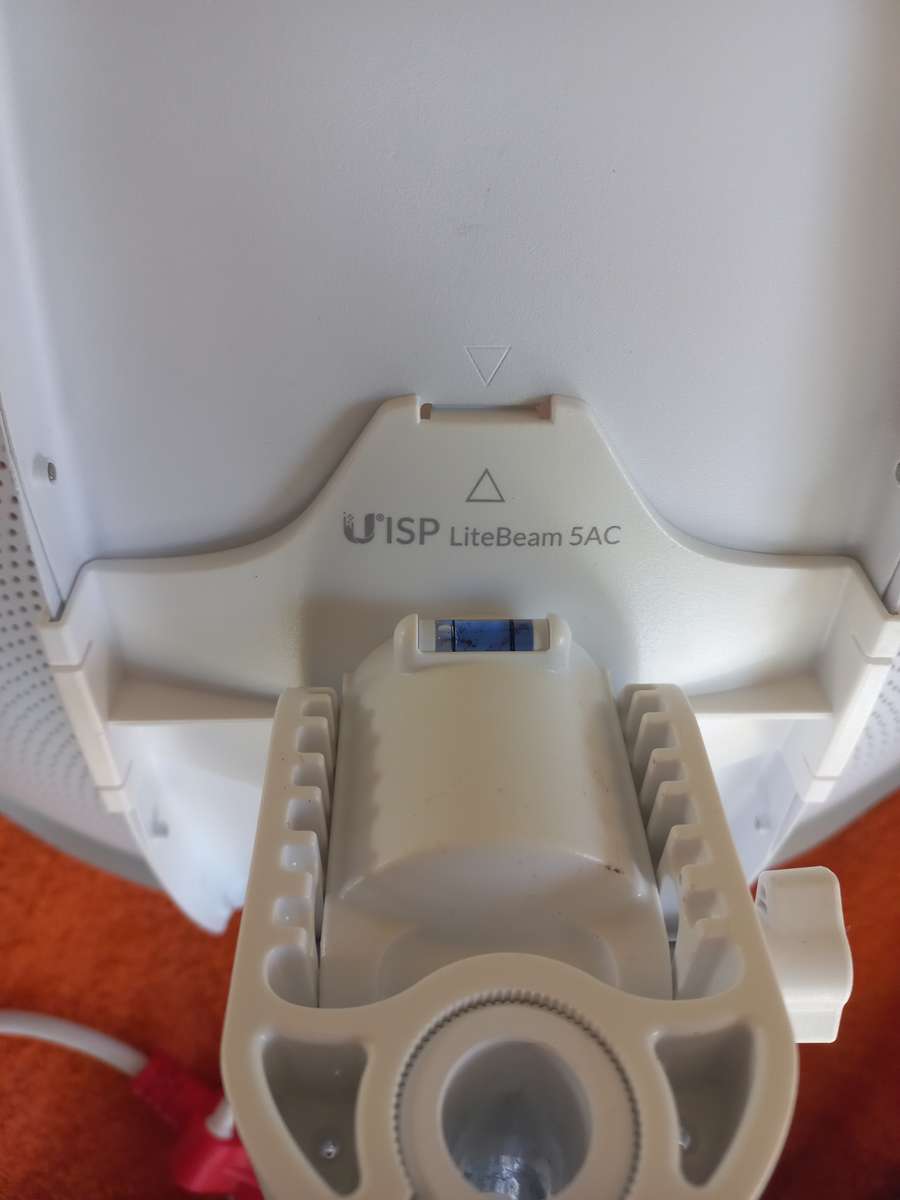

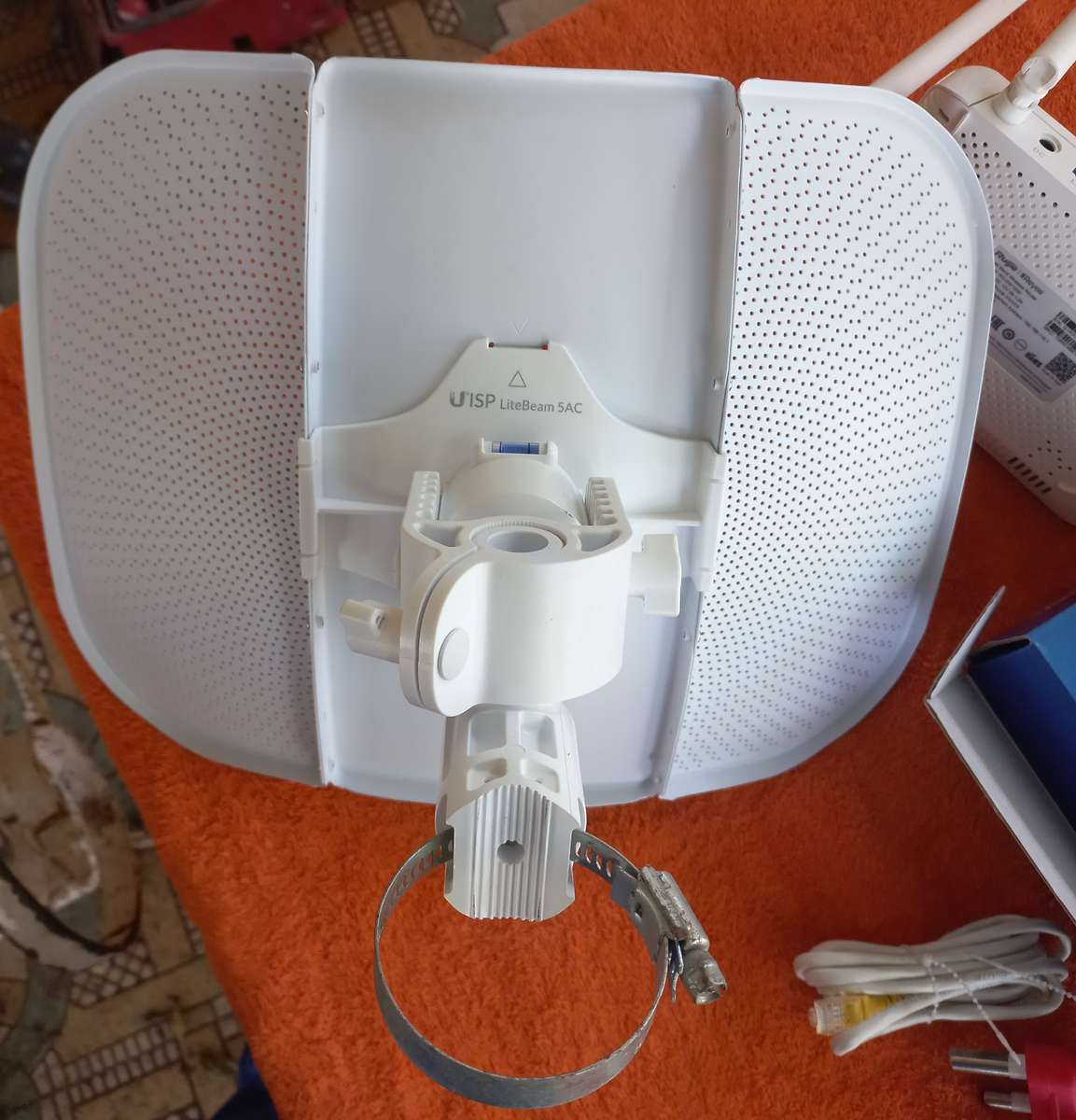

- Mounting: Pole-Mounting Kit (Included)
- Wind Loading: 275 N at 200 km/h
- Wind Survivability: 200 km/h
- ESD/EMP Protection: +/- 24 kV Contact / Air
- Operating Temperature: -40 to 70-degrees C
- Operating Humidity: 5 to 95% Non-condensing
- Dimensions: 358 x 271.95 x 272.5 mm
- Weight Without Mount: 800 g
- Weight With Mount: 980g
