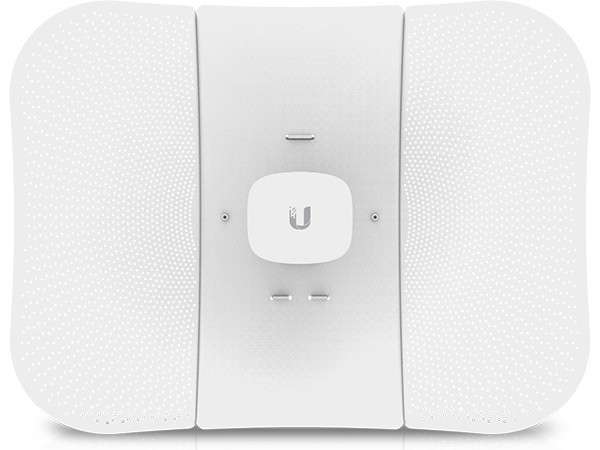

Ubiquiti's LiteBeam 5AC Gen 2 directs RF energy in a tighter beam-width. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Ubiquiti's InnerFeed® technology integrates the radio into the feed-horn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. The LiteBeam AC Gen2 is a lightweight, cost effective airMAX® ac CPE with Dedicated Management Radio. It features enhanced protection against power surges and the LiteBeam 5AC Gen 2 also offers a more robust mount with separate azimuth and elevation adjustments.
Operating Frequency Worldwide: 2412 - 2462 MHz & 5150 - 5875 MHz
Gain: 23 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor Specs: MIPS 74Kc
Memory: 64 MB DDR2
Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption: 7W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 24V ± 10%
LEDs: Power, Ethernet
Channel Size PtP Mode: 10/20/30/40/50/60/80 MHz
Channel Size PtMP Mode: 10/20/30/40 MHz
Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
Mounting: Pole-Mounting Kit (Included)
Wind Loading: 275 N @ 200 km/h
Wind Survivability: 200 km/h
ESD/EMP Protection: ± 24 kV Contact / Air
Operating Temperature: -40 to 70° C
Operating Humidity: 5 to 95% Non-condensing
Dimensions: 358 x 271.95 x 272.5 mm
Weight Without Mount: 800 g
Weight With Mount: 980g
