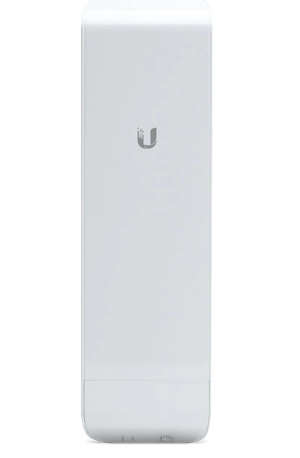

Ubiquiti 5GHz airMAX MIMO NanoStation CPE | NSM5

Ubiquiti's NSM5, NanoStationM is a low-cost, efficient 5 GHz, 16dbi broadband Customer Premises Equipment (CPE) with integrated airMAX (MIMO TDMA protocol) technology. It's high-performance with small form factor of makes the NSM5 extremely versatile and economical to deploy. This unit is suitable for short and long range coverage of up to +-15Kms (dependent) and will be an ideal unit for PTP links or IP cameras

The NanoStationM provides a secondary Ethernet port with software-enabled PoE output for seamless IP video integration and can be remotely reset.

The NanoStationM can be powered by Ubiquiti's TOUGHSwitch PoE (sold separately). In addition, any NanoStationM can easily become 48V, 802.3af compliant through use of the Ubiquiti Instant 802.3af Adapter (sold separately).

Specifications

Antenna Gain: 16dBi

Beam-width: 41°

Data Rate: 300Mbps

Ethernet Ports: 2x 10/100

Hardware Button: Reset

Interfaces: 2

Max. Power Consumption: 8W

Mounting: Pole-Mount

Operating System: airMAX

Operating Temperature: -30°C to 75°C

PoE Input: 24V Passive PoE

PoE Output: None

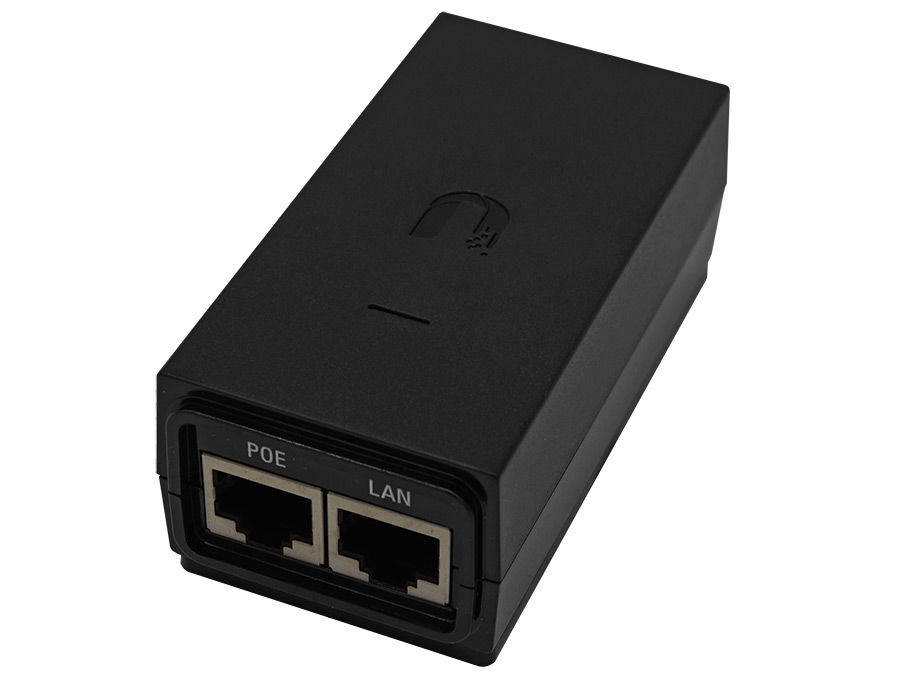

Power Input: 24V 0.5A Passive PoE Injector (Included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 24V

USB Ports: None

Dimensions: 294 x 31 x 80mm

Weight: 400g
