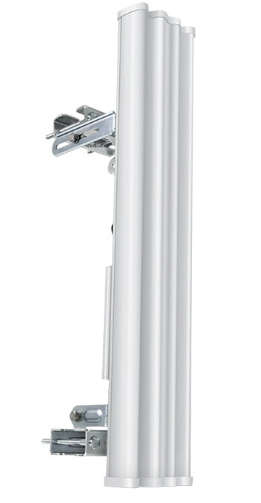

Ubiquiti's AIR-S520 achieves gain, cross-pol isolation and beam-shaping characteristics. Instantly pair it with the Rocket M5 to create a powerful airMAX 2x2 MIMO PtMP BaseStation.

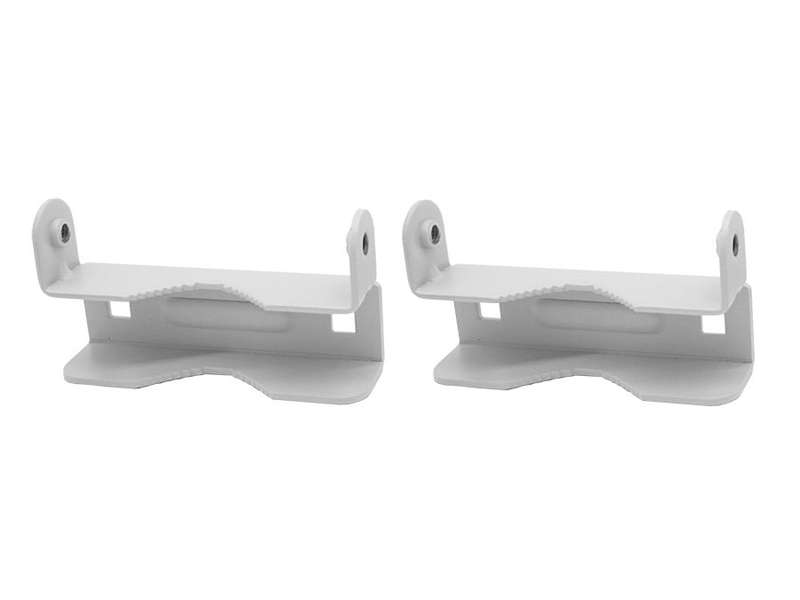

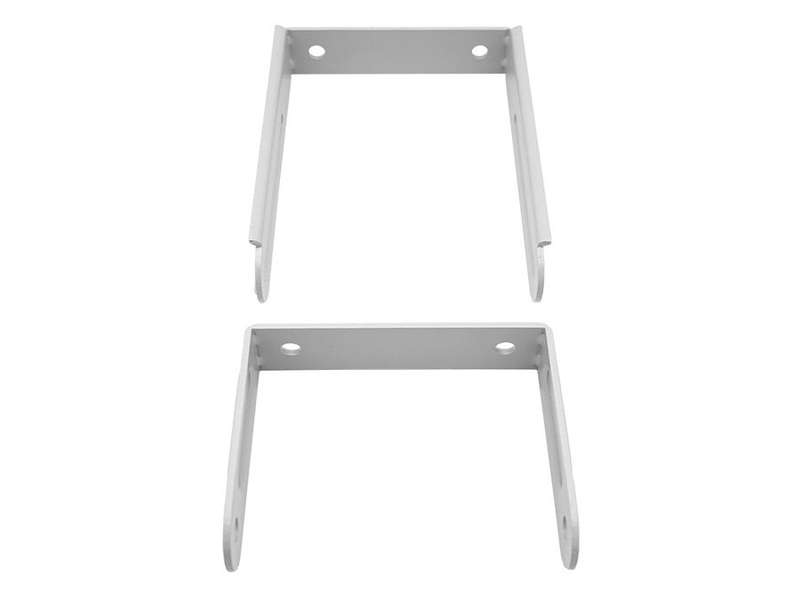

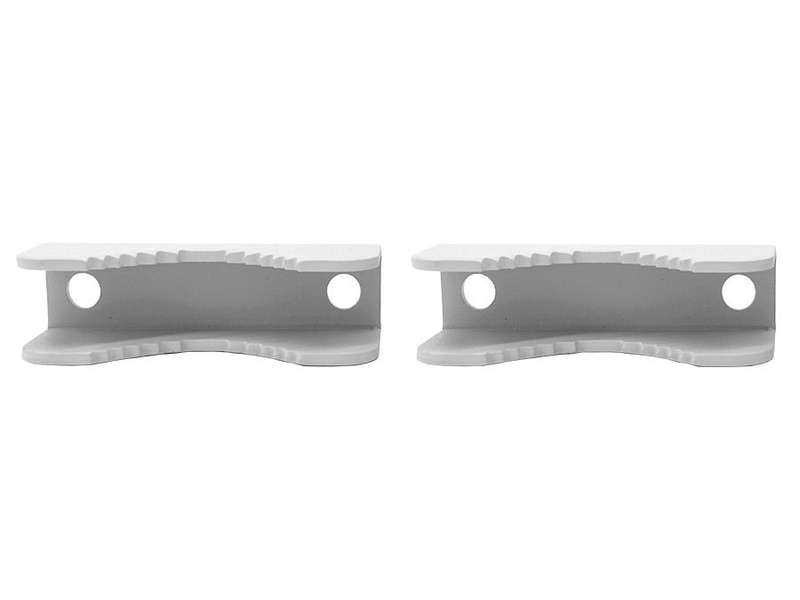

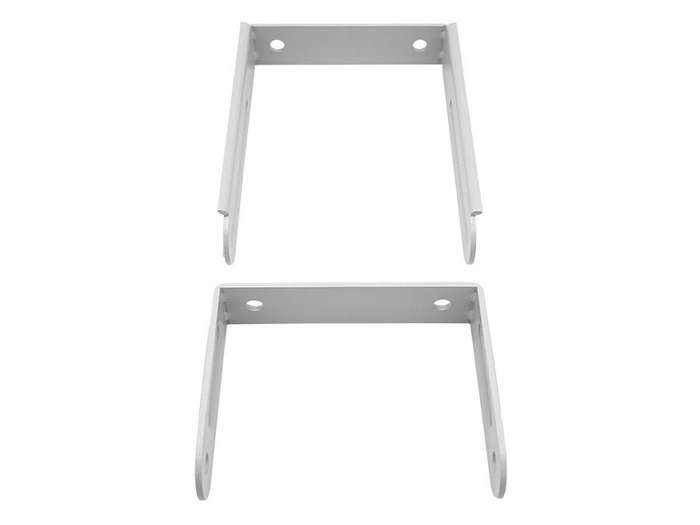

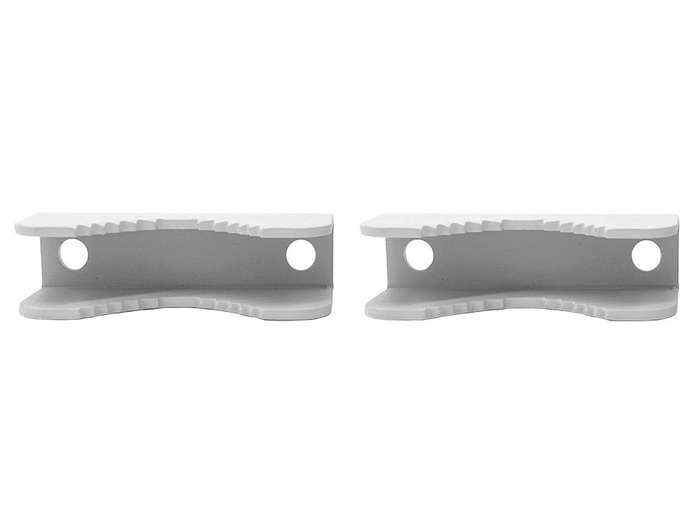

RocketM and airMAX BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing RocketM on airMAX BaseStation/Rocket Antennas requires no specific tools, you simply snap it into place with the mount provided with the Antenna.

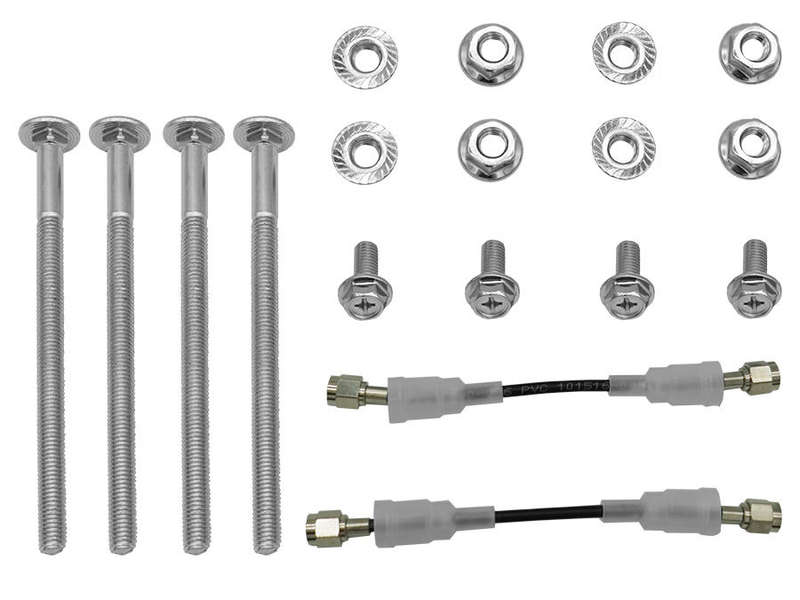

Rocket mount and weatherproof RF jumpers are included.
Specifications
Antenna Gain: 20dBi
Beam-width: 90°
Connector: 2x RP SMA Female
Frequency Range: 5.15GHz 5.85GHz
Polarization: Vertical & Horizontal
Wind Loading: 182N @ 200km/h
Dimensions: 700 x 135 x 70mm
Weight: 5.9kg
