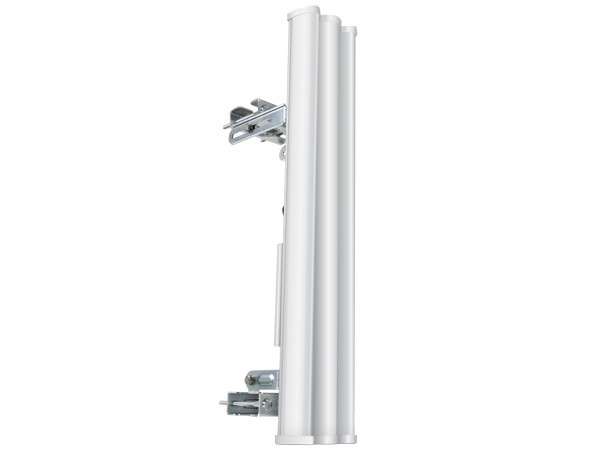

AIR-S519, by Ubiquiti, achieves gain, cross-pol isolation and beam-shaping characteristics.
Instantly pair it with the Rocket M5 to create a powerful AirMax 2x2 MIMO PtMP BaseStation.
RocketM and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together.
Installing RocketM on AirMax BaseStation/Rocket Antennas requires no specific tools, you simply snap it into place with the mount provided with the Antenna.
Rocket mount and weatherproof RF jumpers are included.
SPECIFICATIONS
- Frequency Range: 5.15 - 5.85GHz
- Gain: 18.6 - 19.1dBi
- Polarisation: Dual Linear
- Cross-pol Isolation: 28dB min
- Max VSWR: 1.5:1
- Hpol Beam-width (6dB): 123º
- Vpol Beam-width (6dB): 123º
- Elevation Beam-width: 4º
- Electrical Down-tilt: 2º
- Wind Loading: 160mph
- Dimensions (mm): 700x145x79
- Weight: 5.9Kg
