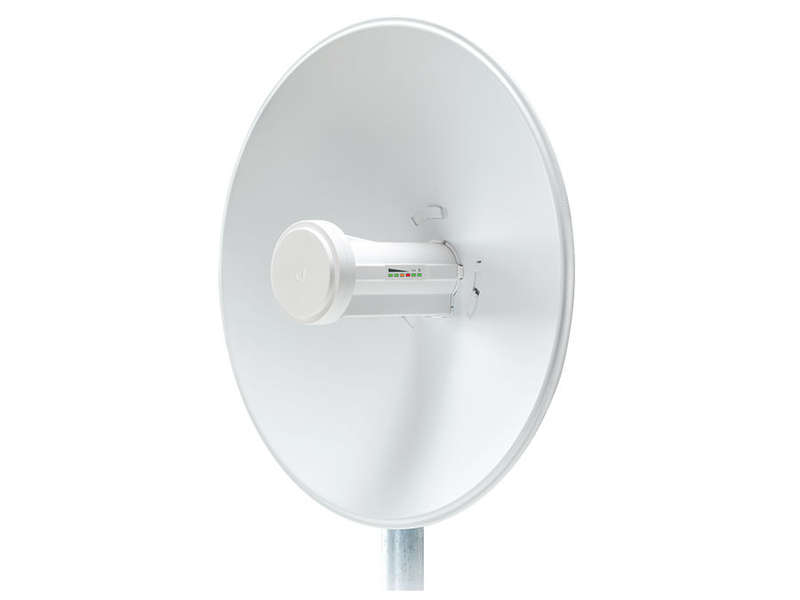

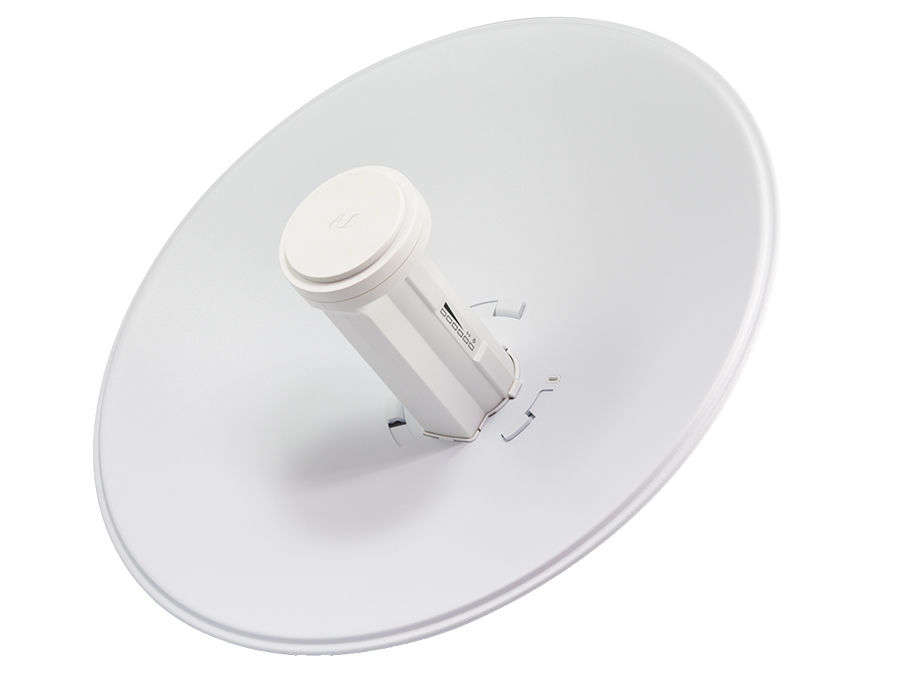

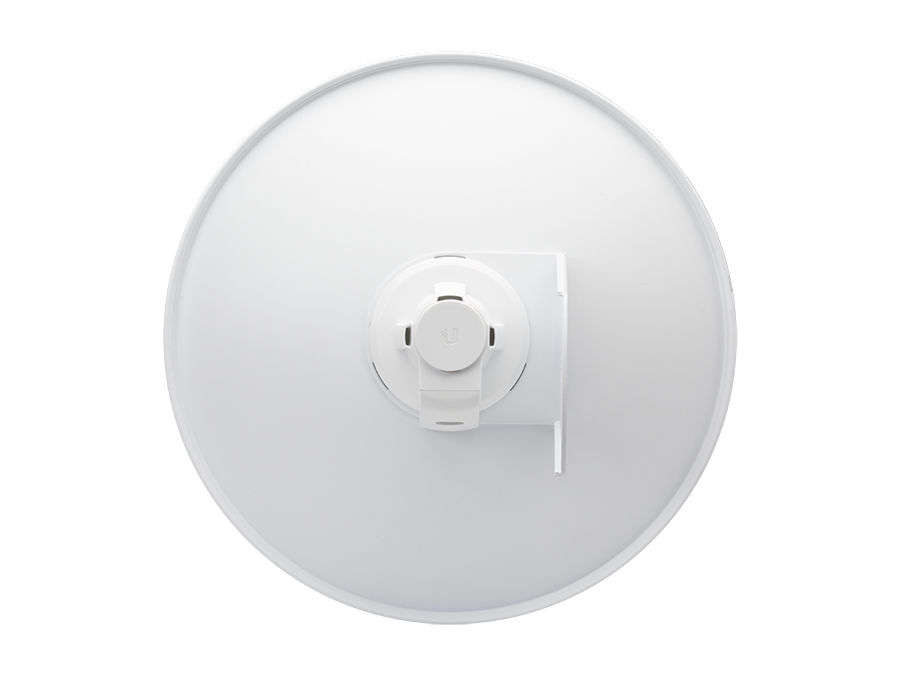

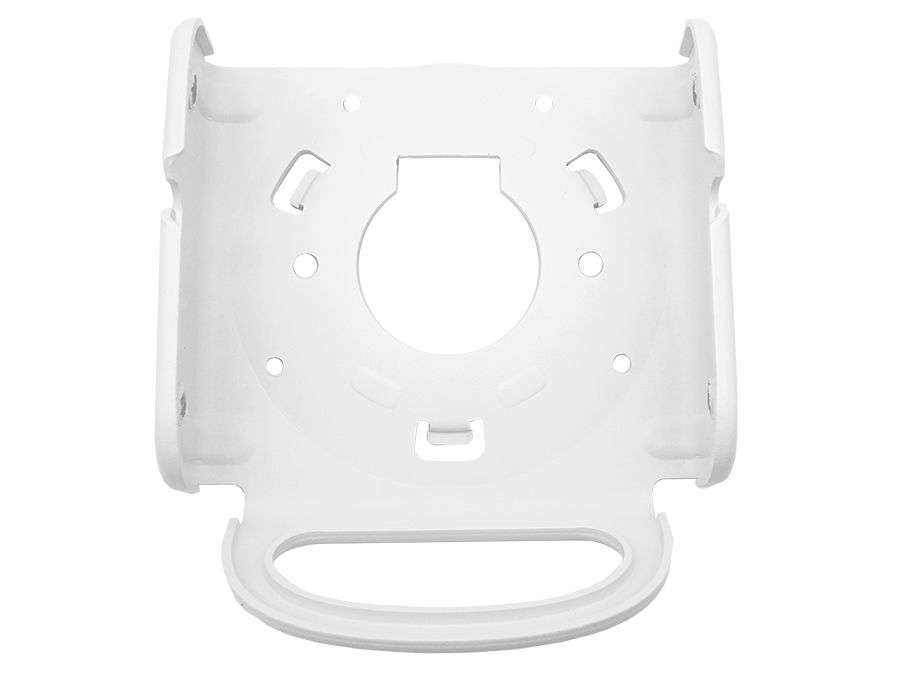

Ubiquiti 5GHz PowerBeam 22dBi 300mm Dish | PBE-M5-300

Ubiquiti's PBE-522 PowerBeam directs RF energy in a tighter beam-width. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Ubiquiti's InnerFeed technology integrates the radio into the feed-horn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its faster processor and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy.

Specifications

Antenna Gain: 22dBi

Beam-width: 18°

Data Rate: 300Mbps

Ethernet Ports: 1x 10/100

Hardware Button: Reset

Interfaces: 1

Max. Power Consumption: 6W

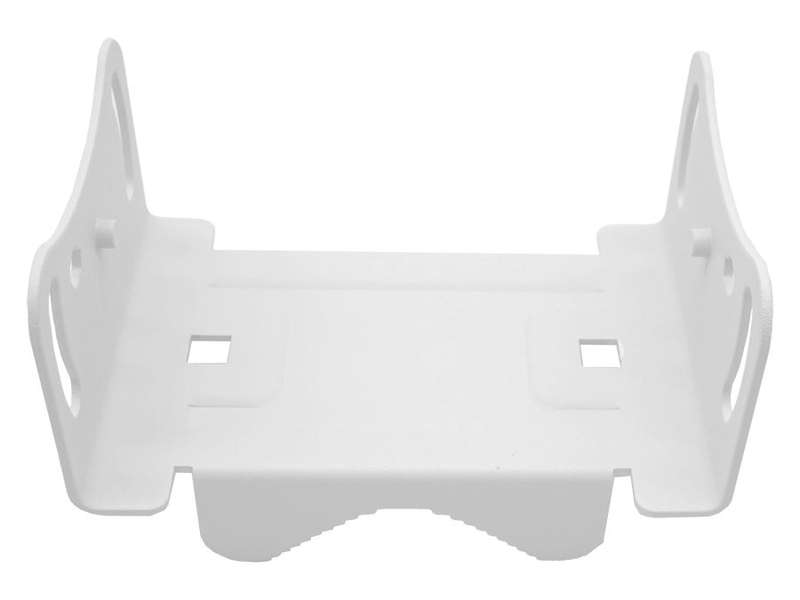

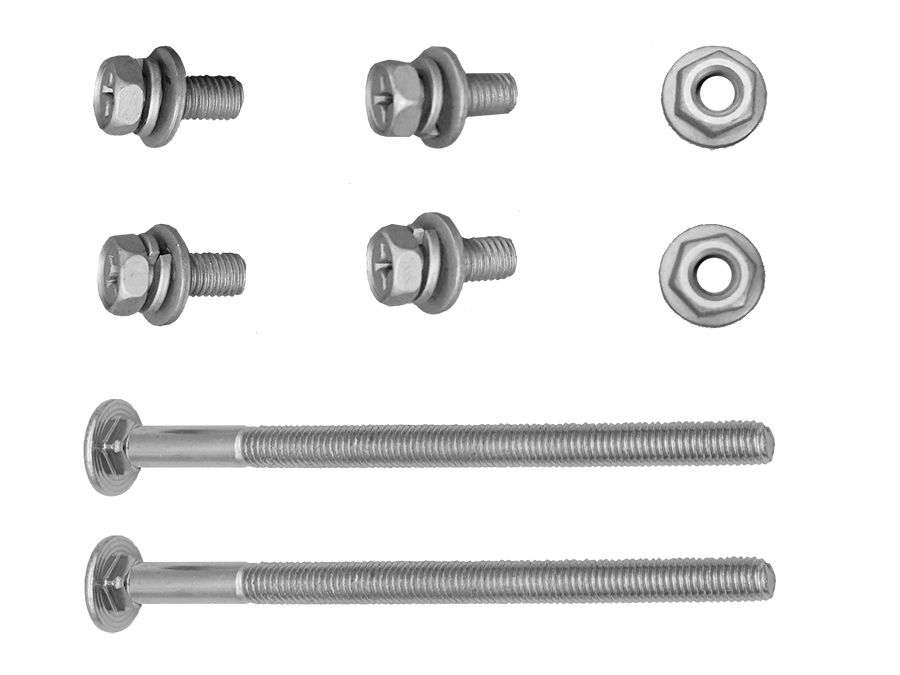

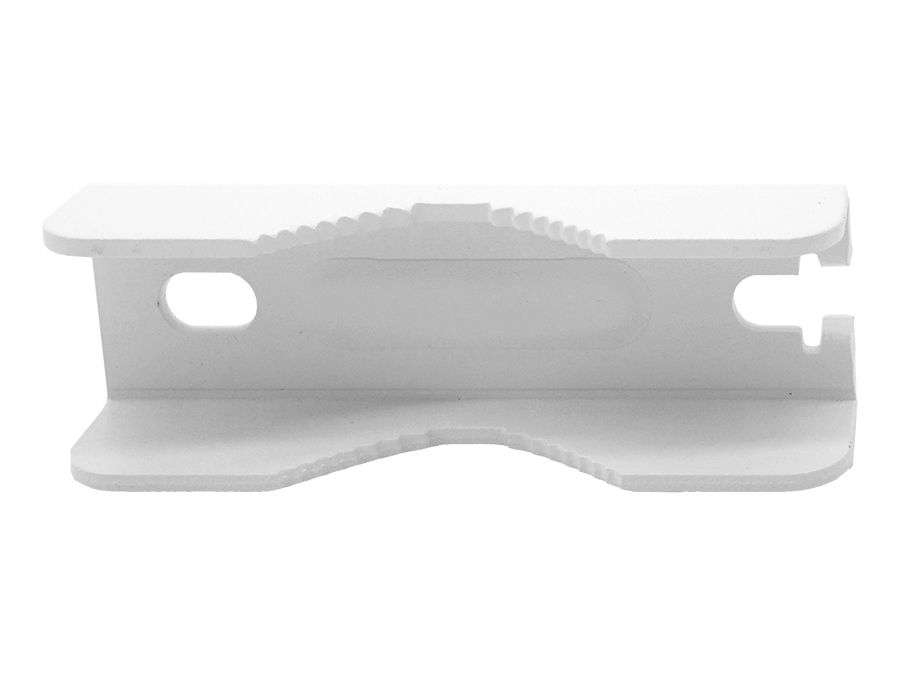

Mounting: Pole-Mount

Operating System: airMAX

Operating Temperature: -40°C to 70°C

PoE Input: 24V Passive PoE

PoE Output: None

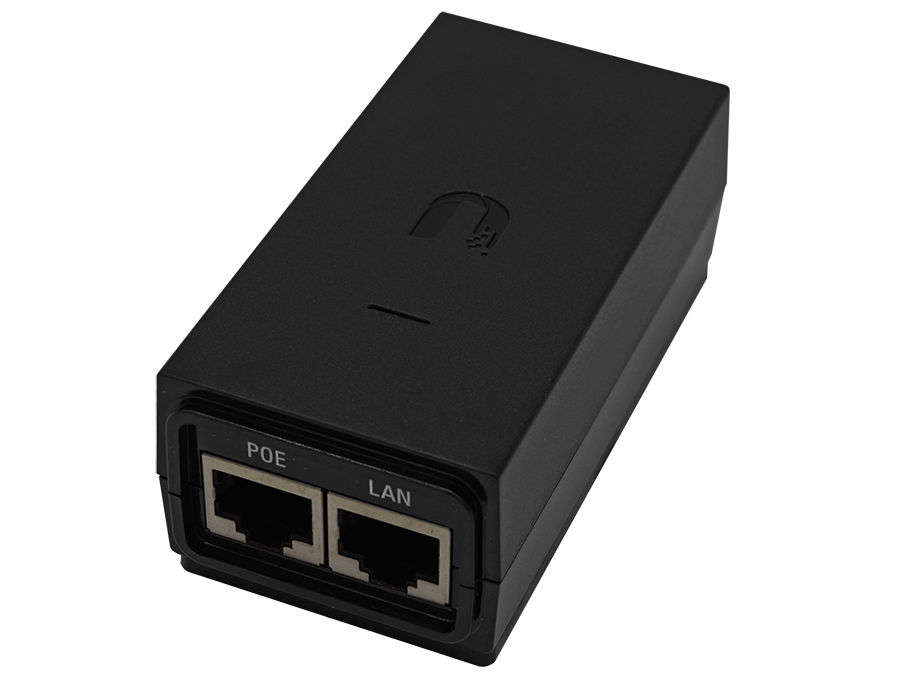

Power Input: 24V 0.5A Passive PoE Injector (Included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 24V

USB Ports: None

Dimensions: 325 x 325 x 256mm

Weight: 1.203kg
