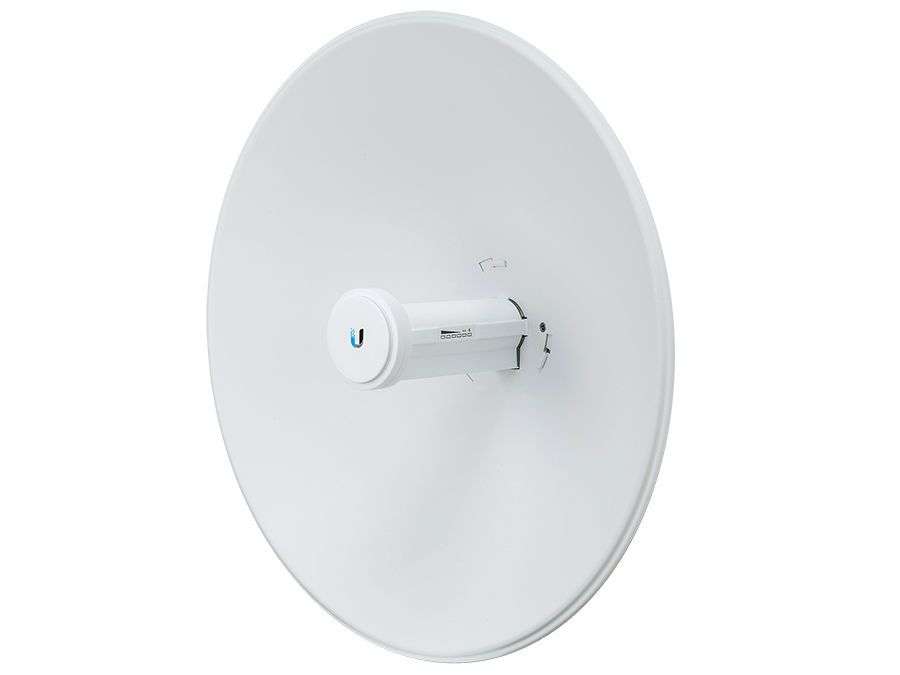

The PowerBeam AC Gen2 is a 5GHz, high-performance airMAX ac bridge that features InnerFeed technology that integrates the radio into the feed-horn of an antenna, thus eliminating the need for a cable and improving performance due to the fact that there is no cable losses.
Specifications:
- Operating Frequency Worldwide: 2412 - 2462 MHz & 5150 - 5875 MHz
- Gain: 25 dBi
- Networking Interface: (1) 10/100/1000 Ethernet Port
- Processor Specs: MIPS 74Kc
- Memory: 64 MB
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Max. Power Consumption: 8.5W
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
- Supported Voltage Range: 20 to 26VDC
- LEDs: Power, Ethernet, (4) Signal Strength
- Channel Size PtP Mode: 10/20/30/40/50/60/80 MHz
- Channel Size PtMP Mode: 10/20/30/40 MHz
- Enclosure Characteristics: Antenna Feed-Outdoor UV Stabilized Plastic, Reflector-Powder-Coated SPCC
- Mounting: Pole-Mounting Kit (Included)
- Wind Loading: 380 N at 200 km/h
- Wind Survivability: 200 km/h
- ESD/EMP Protection: Air: +/- 24 kV, Contact: +/- 24 kV
- Operating Temperature: -40 to 70-degrees C
- Operating Humidity: 5 to 95% Non-condensing
- Dimensions: 420 x 420 x 230 mm
- Weight Without Mount: 2.22 kg
- Weight With Mount: 980g
This item is used, in 100% working condition
