Description

Ubiquiti's PowerBeam 5AC Gen 2 directs RF energy in a tighter beam-width. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so that noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

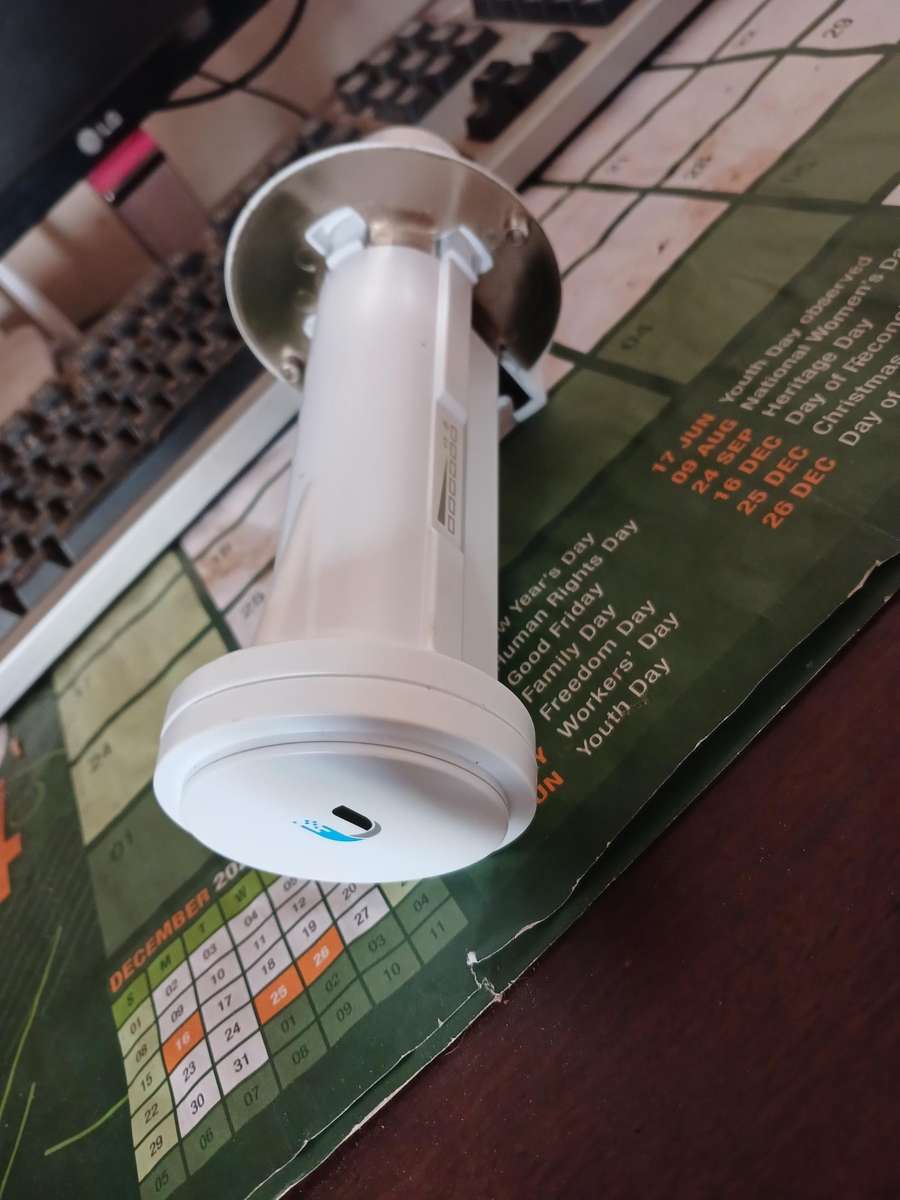

The PowerBeam AC Gen2 is a 5GHz, high-performance airMAX ac bridge that features InnerFeed technology that integrates the radio into the feed-horn of an antenna, thus eliminating the need for a cable and improving performance due to the fact that there is no cable losses.

Specifications:

- Operating Frequency Worldwide: 2412 - 2462 MHz & 5150 - 5875 MHz

- Gain: 25 dBi

- Networking Interface: (1) 10/100/1000 Ethernet Port

- Processor Specs: MIPS 74Kc

- Memory: 64 MB

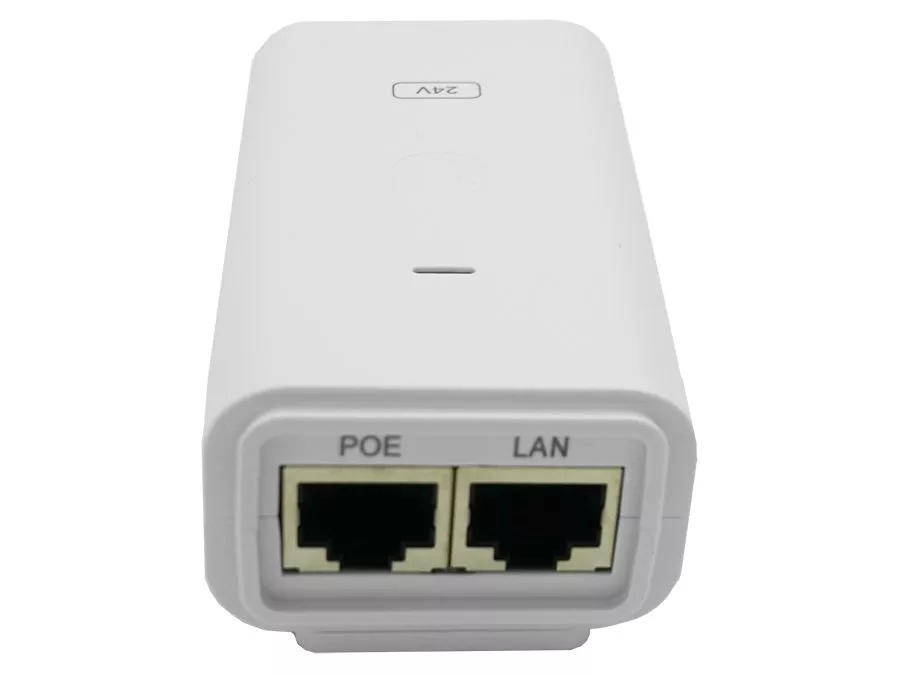

- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

- Max. Power Consumption: 8.5W

- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

- Supported Voltage Range: 20 to 26VDC

- LEDs: Power, Ethernet, (4) Signal Strength

- Channel Size PtP Mode: 10/20/30/40/50/60/80 MHz

- Channel Size PtMP Mode: 10/20/30/40 MHz

- Enclosure Characteristics: Antenna Feed-Outdoor UV Stabilized Plastic, Reflector-Powder-Coated SPCC

- Mounting: Pole-Mounting Kit (Included)

- Wind Loading: 380 N at 200 km/h

- Wind Survivability: 200 km/h

- ESD/EMP Protection: Air: +/- 24 kV, Contact: +/- 24 kV

- Operating Temperature: -40 to 70-degrees C

- Operating Humidity: 5 to 95% Non-condensing

- Dimensions: 420 x 420 x 230 mm

- Weight Without Mount: 2.22 kg

- Weight With Mount: 980g
