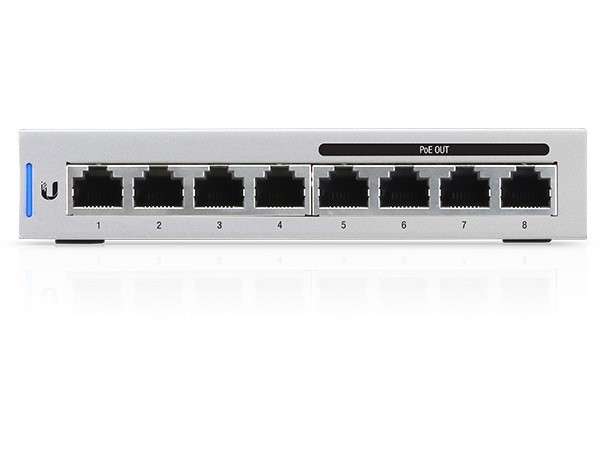

Build and expand your network with Ubiquiti Networks® UniFi® Switch, part of the UniFi line of products. This 8-port model US8-60 features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps with a switching capacity of 16 Gbps. The US8-60 is powered by its included power adapter. It has four auto-sensing PoE ports delivering up to 15.4W of power per port.
IMPORTANT: There is NO Passive 24v PoE Support on this unit. ONLY 802.3af and Passive 48v PoE Output
Enclosure Characteristics | SGCC Steel |
Total Non-Blocking Throughput | 8 Gbps |
Switching Capacity | 16 Gbps |
Forwarding Rate | 11.9 Mpps |
Max. Power Consumption | 12W (Excluding PoE Output) |
Max. PoE Wattage per Port | 15.4W |
Power Method | 48VDC, Max. 2A |
Supported Voltage Range | 57VDC to 44VDC |
Power Supply | External AC/DC Adapter, 48V, 1.25A |
LEDs | PoE (Port 8), Speed/Link/Activity (All Ports) |
Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
PoE Interfaces | (4) Ports 5, 6, 7, 8; IEEE802.3af |
ESD/EMP Protection Air | ± 24 kV, Contact: ± 24 kV |
Operating Temperature | -5 to 45° C |
Operating Humidity | 5 to 95% Non-condensing |
Shock and Vibration | ETSI300-019-1.4 Standard |
Dimensions | 148.0 x 99.5 x 30.7 mm |
Weight | 432 g |
