FEATURES

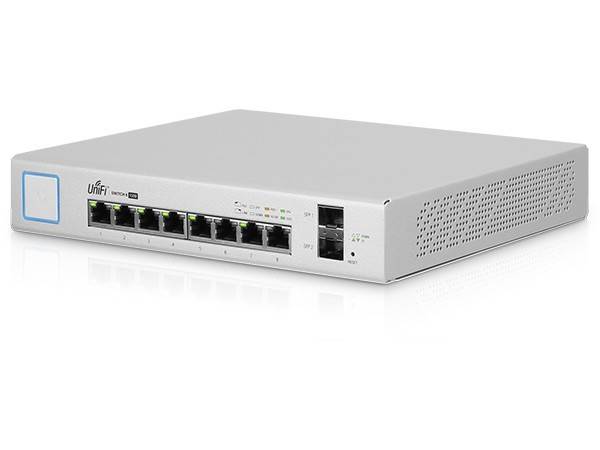

US8-150 UniFi® Managed PoE+ Gigabit Switch with SFP delivers quiet yet powerful performance with its 10 independent switching ports. A total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE. The two SFP ports offer optical connectivity.
It is ideal for delivering robust performance and intelligent switching for growing networks and offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Manufacturer | Ubiquiti |
Factory Number | US8-150 |
Product Type | 8 Port Switch |
Total Non-Blocking Throughpu | 10 Gbps |
Switching Capacity | 20 Gbps |
Forwarding Rate | 14.88 Mpps |
Max. Power Consumption Including PoE Output | 150W |
Max. Power Consumption Excluding PoE Output | 20W |
Power Method | 100-240VAC/50-60 Hz, Universal Input |
Power Supply | AC/DC, Internal, 150W DC |
LEDs Per Port RJ45 Data Ports | PoE, Speed/Link/Activity |
LEDs Per Port SFP Data Ports | Speed/Link/Activity |
Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ethernet Ports |
Networking Interfaces | (2) 1 Gbps SFP Ethernet Ports |
Management Interface | Ethernet In-Band |
ESD/EMP Protection | Air:± 24 kV, Contact: ± 24 kV |
PoE Interfaces | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
PoE Interfaces | 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
Max. PoE+ Wattage per Port by PSE | 34.2W |
Voltage Range 802.3at Mode | 50¿57V |
Max. Passive PoE Wattage per Port | 17W |
24V Passive PoE Voltage Range: | 20-27V |
Dimensions | 204 x 43 x 235 mm |
Weight | 1.7 kg |
