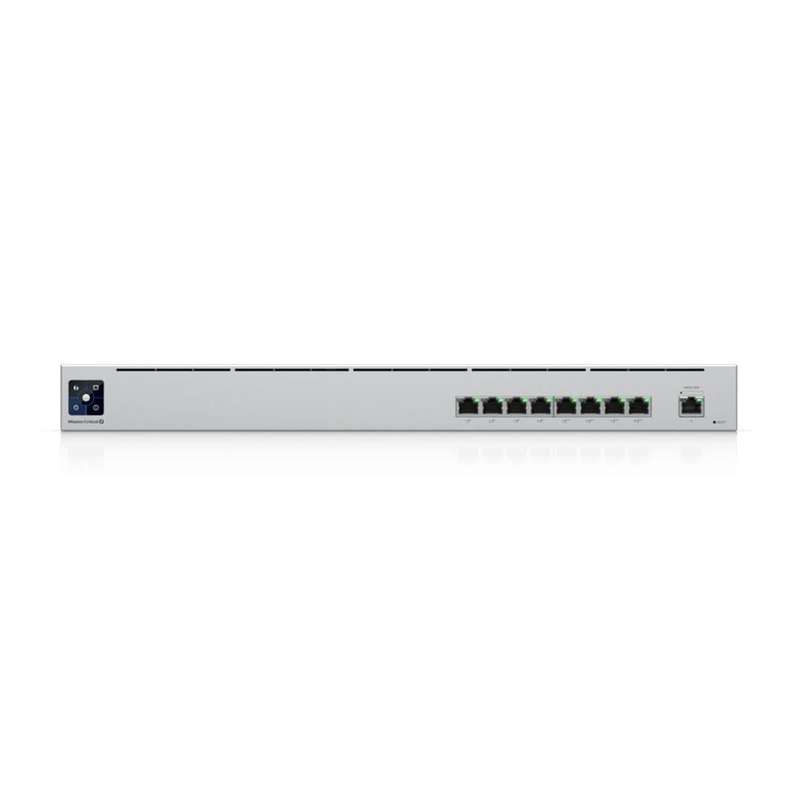

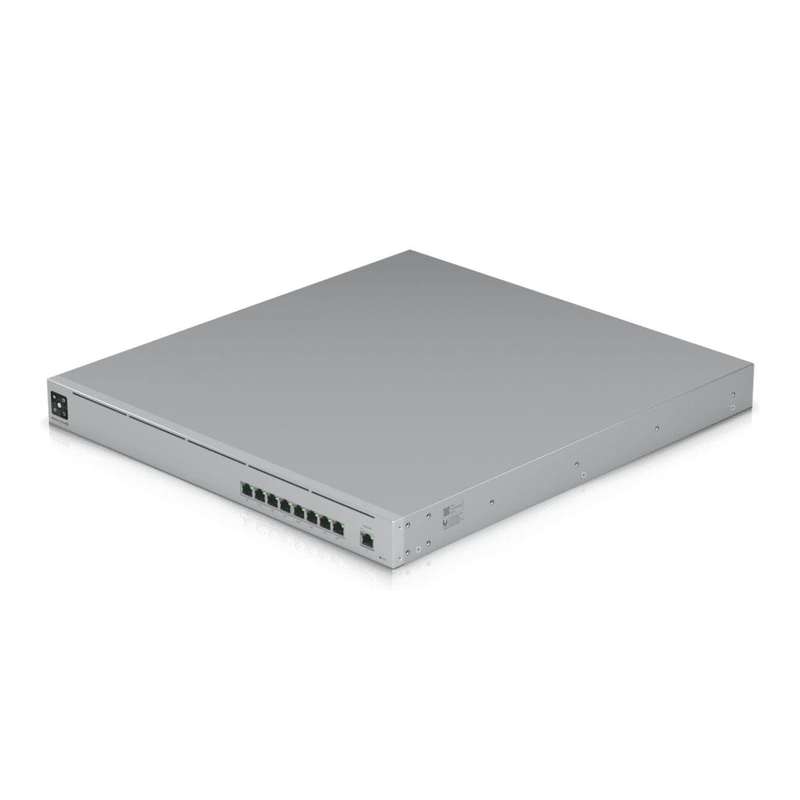

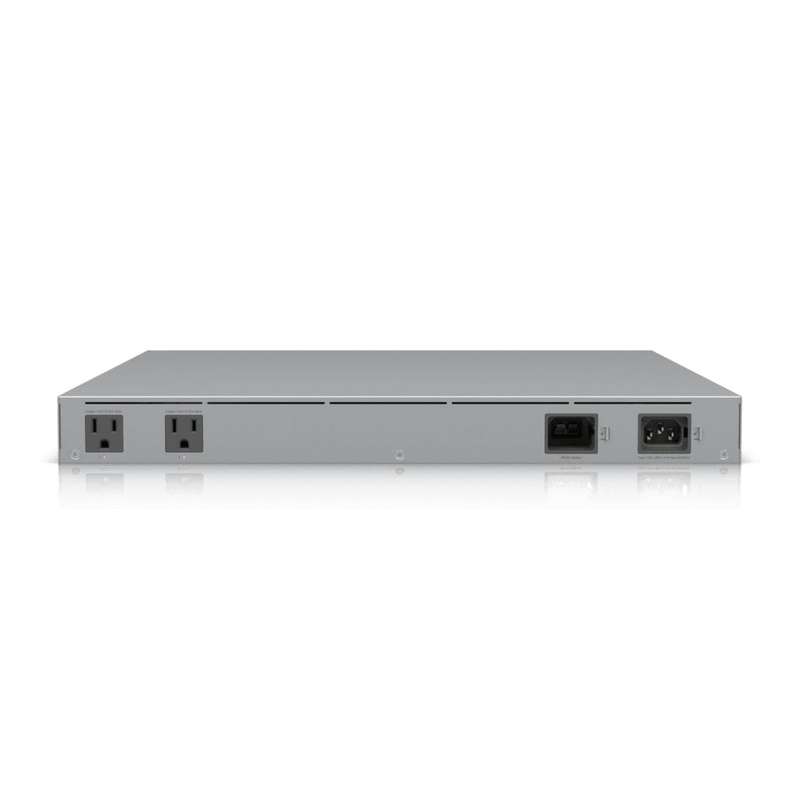

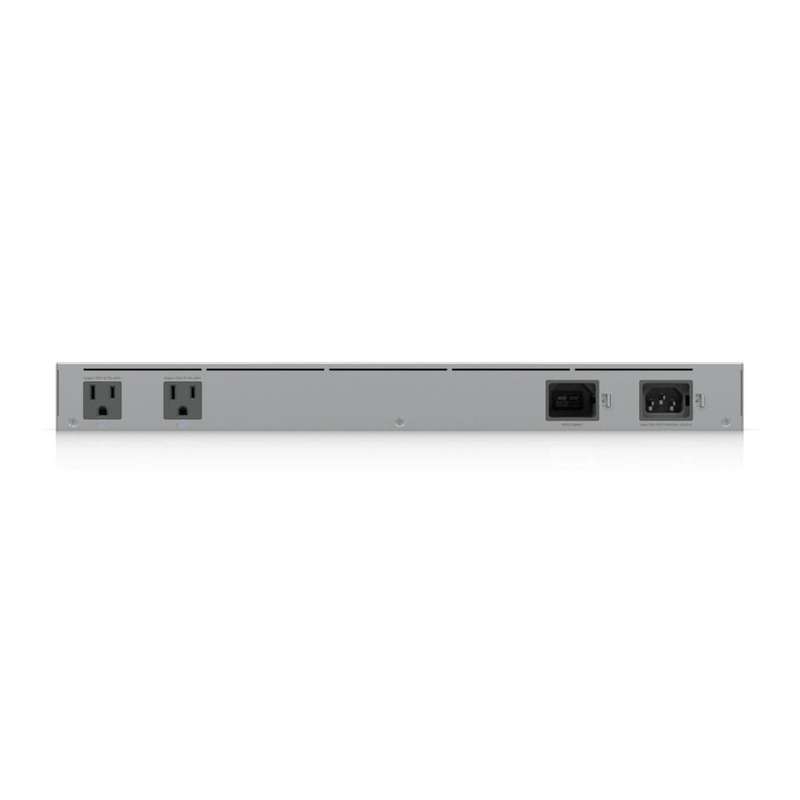

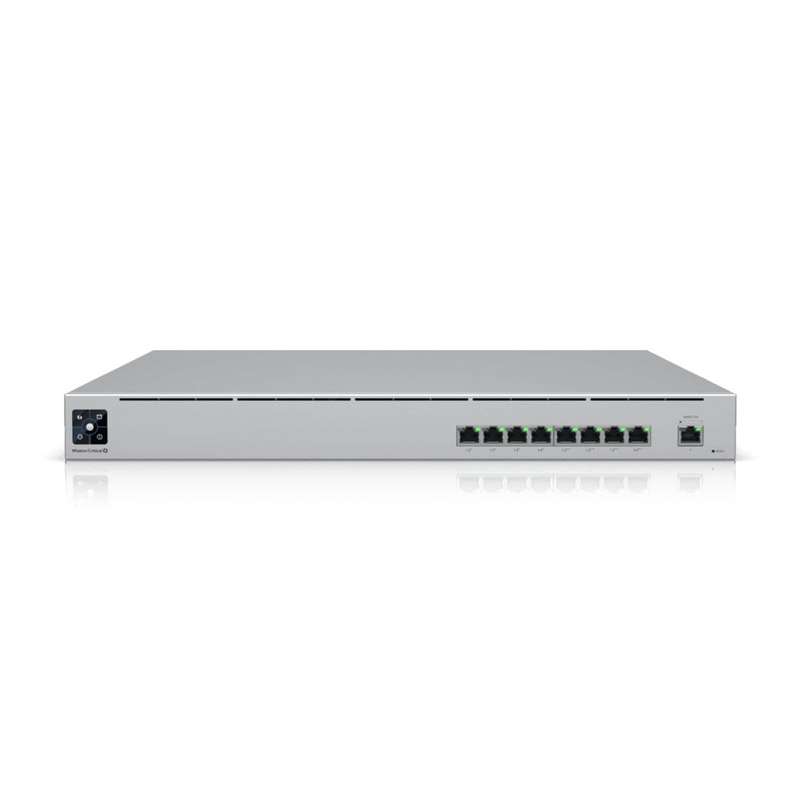

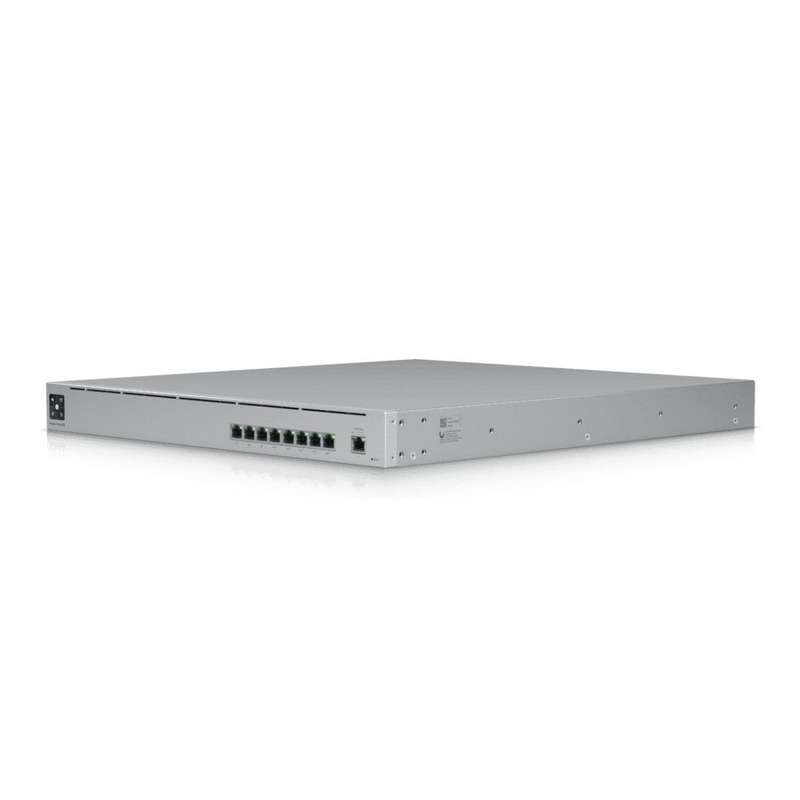

Ubiquiti 9-port GbE Mission Critical Managed Switch with 4x PoE+ and 4x PoE++ ports USW-MISSION-CRITICAL

A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.

Technical Specification

Port Layout

• 1x GbE RJ45
• 9x (4 PoE+; 4 PoE++) (1G/100M/10M)

Max. PoE Output: Up to PoE++

Total PoE Availability: 120W

Redundancy: Battery Power Backup

Layer 3: Yes

Form Factor: Rack mount (1U)

Switching Capacity: 18 Gbps

Total Non-Blocking Throughput: 9 Gbps

Forwarding Rate: 13 Mpps

Supported VLANs: 1000

MAC Address Table Size: 8000

Packet Buffer Size: 0.5 MB

PoE Ports

• PoE+: 4
• PoE++: 4

Max. PoE Wattage per Port by PSE

• PoE+: 32W
• PoE++: 64W

Max. Power Consumption

• 50W (Excluding PoE Output)
• 240W (Including PoE Output and AC Output)

Power Method

• Universal input, 100—240V AC, 50/60 Hz
• External battery input, 48V DC

Power Input Method: AC input, DC input (Backup)

Power Supply: AC/DC, internal, 240W

Supported Voltage Range: 100—240V AC

Management: Ethernet, AR

Supported Rack Depth

• 482.6 mm (19") four-post racks
• Posts depths ranging from 700 to 1,000 mm (27.6—39.4")

LCM Display: 1.3" touchscreen

Dimensions: 442 x 480 x 44 mm
