Ubiquiti Af-5Xhd 5Ghz Radio For High-Performance Wireless Networking

Explore the Ubiquiti AF-5XHD, a high-powered 5GHz radio engineered for exceptional wireless networking performance. Operating within the 5GHz frequency band, it offers channel bandwidths of up to 100MHz, GPS synchronization, and leverages airOS LTU technology. Easily manageable via UISP, this radio is designed to work seamlessly with Ubiquiti® airFiber X slant-polarized antennas, providing improved noise immunity and signal-to-noise ratio. While optimized for use with Ubiquiti antennas, it also offers compatibility with other dish antennas from the Ubiquiti range. Enhance your wireless network with the power of the AF-5XHD, all managed through the UISP mobile app and network management platform.

Key Features:

• High-Frequency Performance: Operating in the 5GHz frequency band, this radio offers exceptional wireless networking capabilities.
• Wide Channel Bandwidth: With support for channel bandwidths of up to 100MHz, achieve high data rates for demanding applications.
• GPS Synchronization: Ensure precise timing and synchronization of your wireless network for optimal performance.

Specifications:

• Antenna Gain: Antenna Dependent (2x RP SMA Female)
• Beam-width: Antenna Dependent
• Data Rate: 1.34 Gbps
• Ethernet Ports: Data - 1x 10/100/1000 ; Management 10/100/1000
• Hardware Button: Reset
• Max. Power Consumption: 6W-12W
• Mounting: Antenna or Pole-Mount
• Operating System: airOS F (airFiber)
• Operating Temperature: -40°C to 55°C
• PoE Input: 24V Passive PoE
• PoE Output: None
• Power Input: 24V; 1A Gigabit PoE Injector (Included)
• Serial Interface: Bluetooth V4.0
• SIM Slots: None
• Supported Voltage Range: 18V-54V
• USB Ports: None
• Dimensions: 224 x 82 x 48mm
• Weight: 0.35kg

Note: Antenna not included. The AF-5XHD operates exclusively in PtP (Point-to-Point) mode, making it ideal for master or slave configurations. It is not suitable for PtMP (Point-to-MultiPoint) installations and is not backward compatible with the AF5X.

Elevate your wireless networking with the Ubiquiti AF-5XHD 5GHz Radio. With high-frequency performance and advanced features, it's your gateway to seamless connectivity.

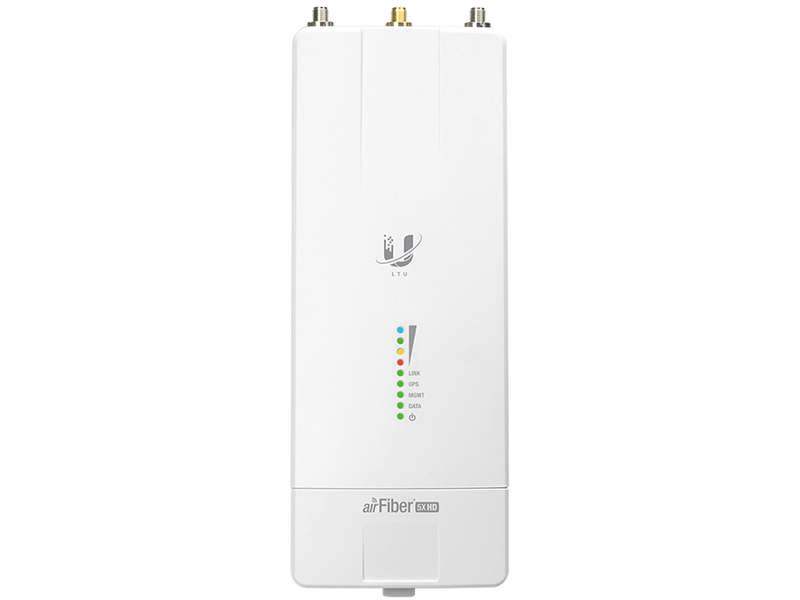

Note: The product image is for illustration purposes only. Actual products may vary.
