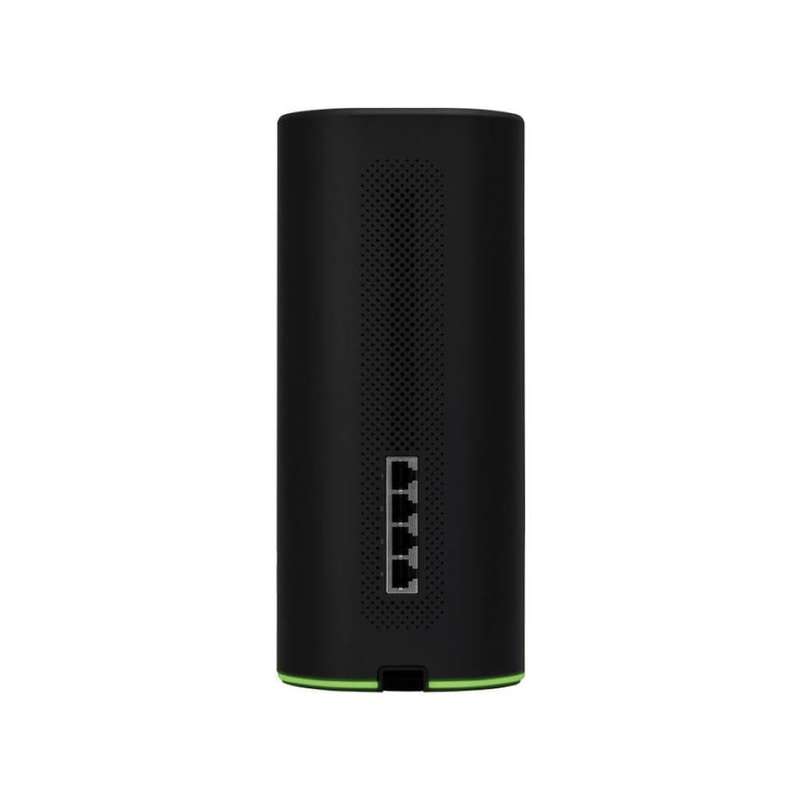

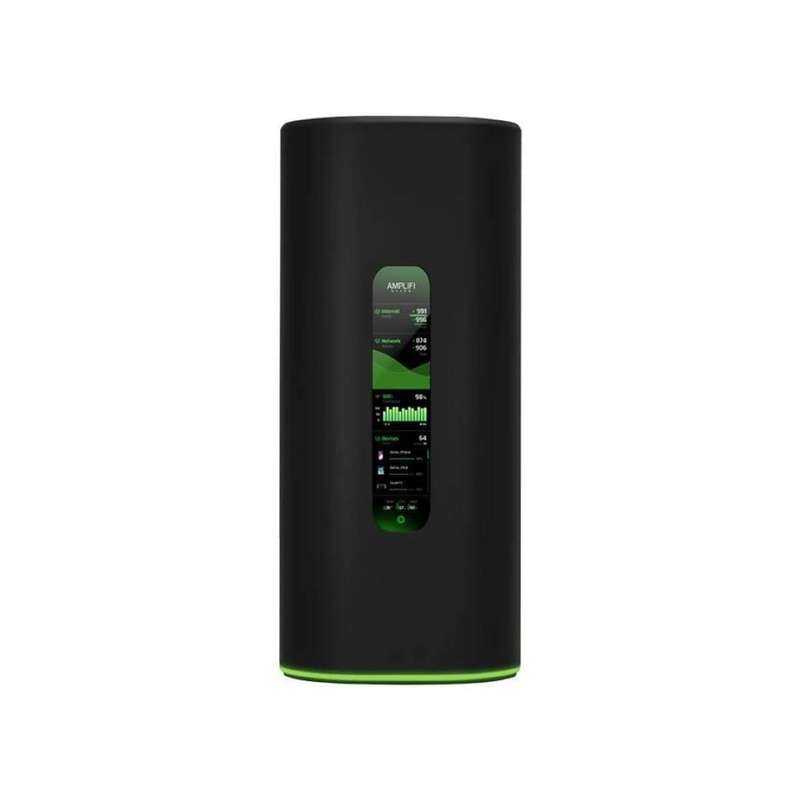

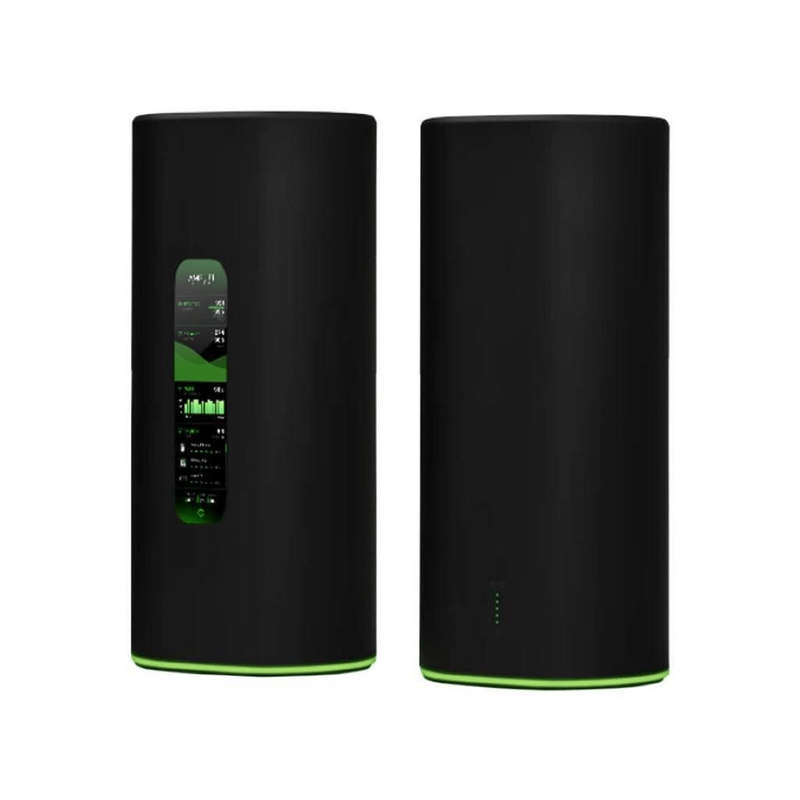

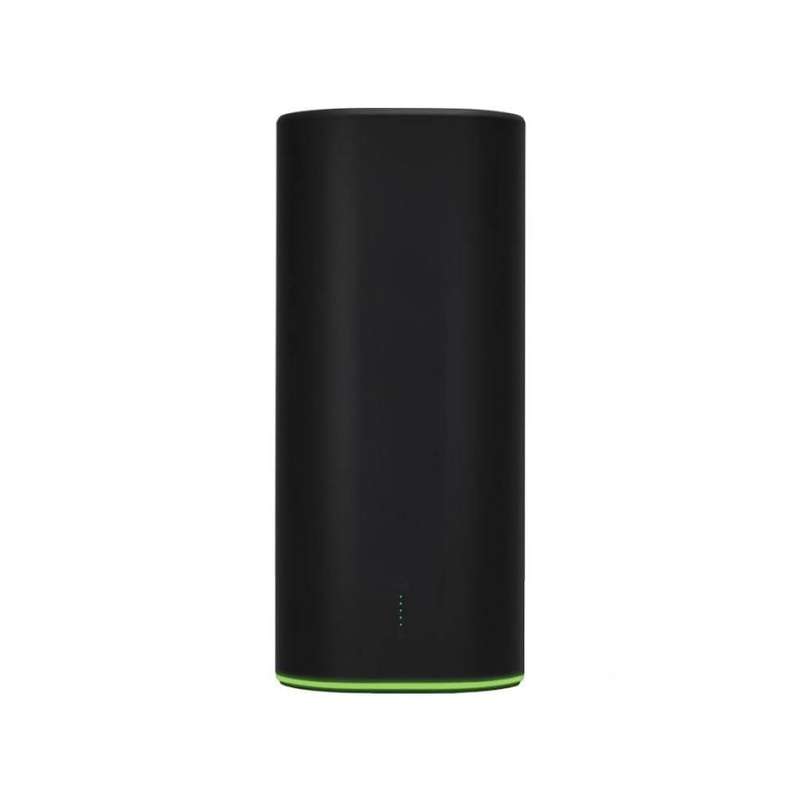

Ubiquiti AmpliFi Alien AX Router and MeshPoint Kit

Ubiquiti's AFI-ALNK includes both a Router and Mesh Point. The Router features a 4 Port Gigabit switch while the MeshPoint extends wireless coverage and includes a Gigabit Ethernet port for wired connectivity.

This kit features a tri-band radio with 4x4 2.4GHz and 8x8 5GHz 802.11ax (WiFi 6) radios optimised for Wi-Fi 6 performance. The third radio (4x4) can be enabled to enhance the performance of 5GHz 802.11ac (Wi-Fi 5) devices. These radios deliver 7685Mbps total capacity and 16 spatial streams from a single unit. For greater coverage, additional AmpliFi Alien Routers can be added to the mesh network.

Technical Specification

Antenna Gain: 2.4GHz: 3dBi ; 5.8GHz: 6dBi
Beam-width: 360°
Data Rate: 2.4GHz: 1148Mbps; 5.8GHz: 1733Mbps (low band) / 4804Mbps (high band)
Ethernet Ports: Router: 1x 10/100/1000 (WAN); 4x 10/100/1000 (LAN) Mesh Point: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: Router: 35W Mesh Point: 34W
Mounting: Desktop
Operating System: AmpliFi OS
Operating Temperature: -10°C to 45°C
PoE Input: None
PoE Output: None
Power Input: 2x Figure 8 Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100 to 240VAC
USB Ports: None
