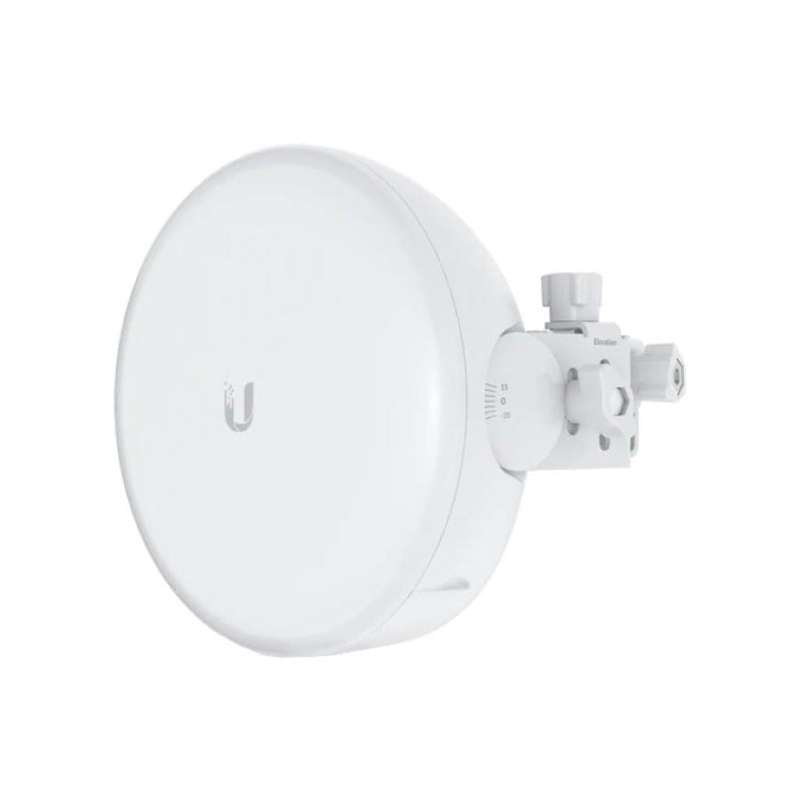

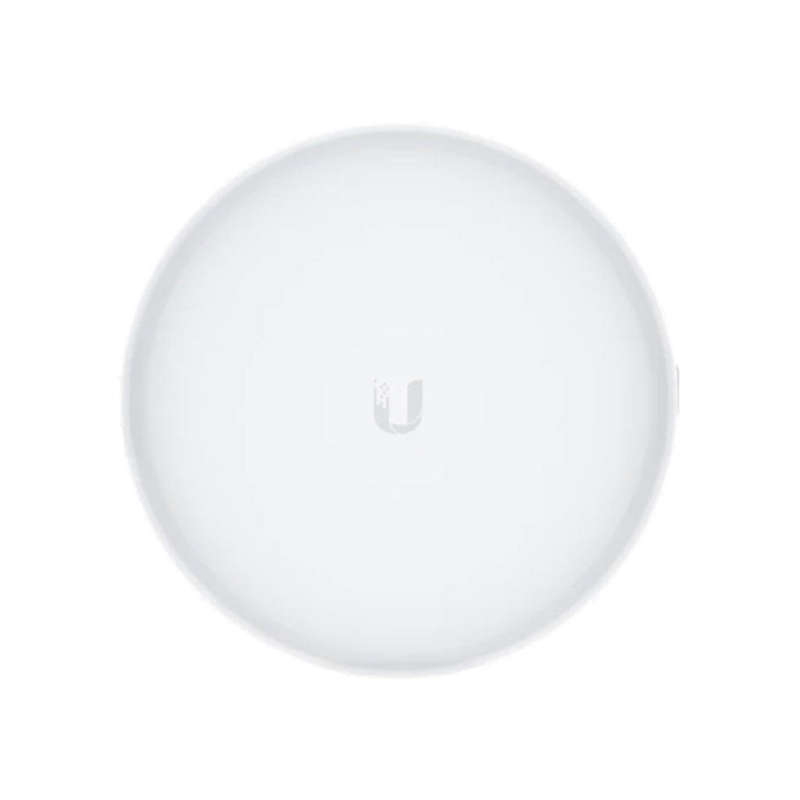

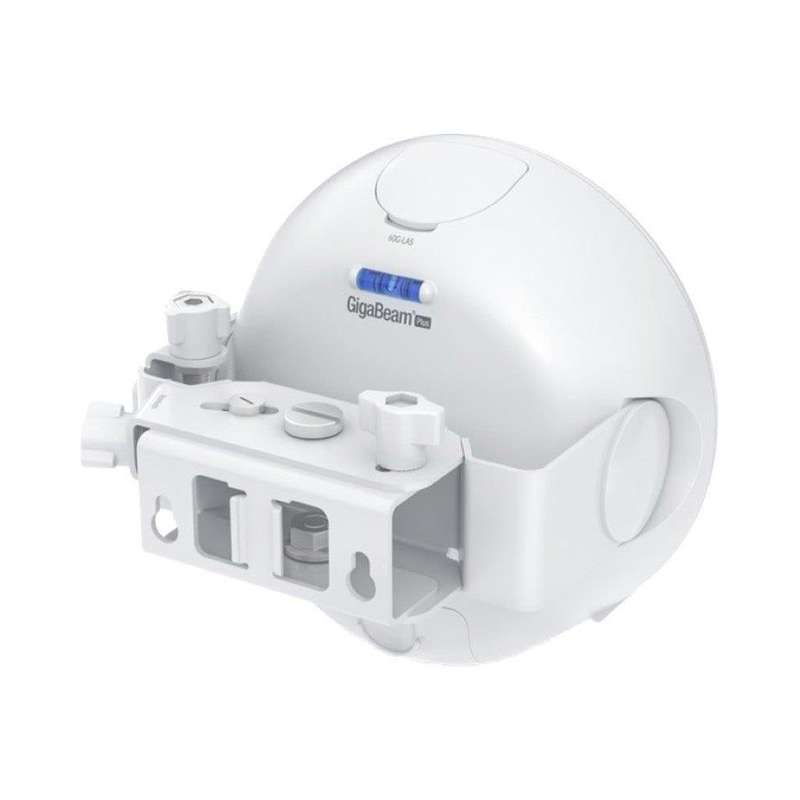

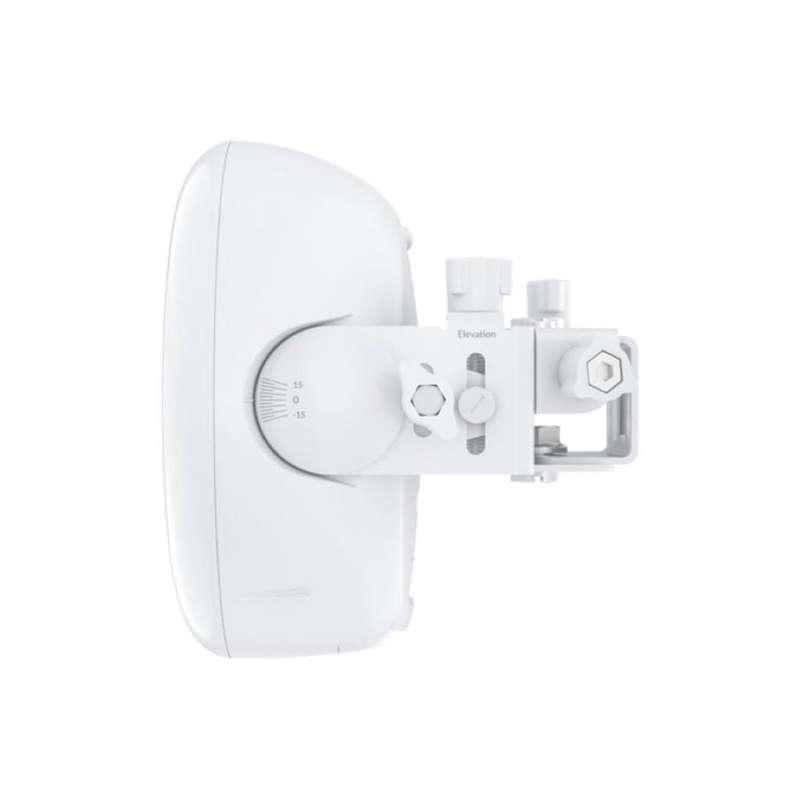

Ubiquiti GigaBeam Plus airMAX 35dBi 60GHz PtP
The GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. The GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in an outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easy to set-up, configure and manage through the UISP dashboard and UISP™ï¸ Mobile app via Bluetooth.
-
Low-interference 60 GHz spectrum
-
35 dBi antenna gain with integrated reflector
-
1.5+ Gbps bidirectional throughput with low latency
-
Long range, up to 1.5 km
-
link.ui.com Planning Support
-
Quick setup using the UISP™ï¸ app via Bluetooth
Key Features
airMAX AC 60 GHz Radio with 1.5 + Gbps Throughput, 35dBi Antenna for PtP links
Technical Specification
Processor: Quad-Core ARM® Cortex® A7
Memory: 256 MB DDR3
Networking interface: 10/100/1,000 Mbps RJ45 port
Management interfaces: Ethernet, Bluetooth
RF connections: Internal
Max. power consumption: 11W
Power method: Passive PoE (Pairs 4, 5+; 7, 8-)

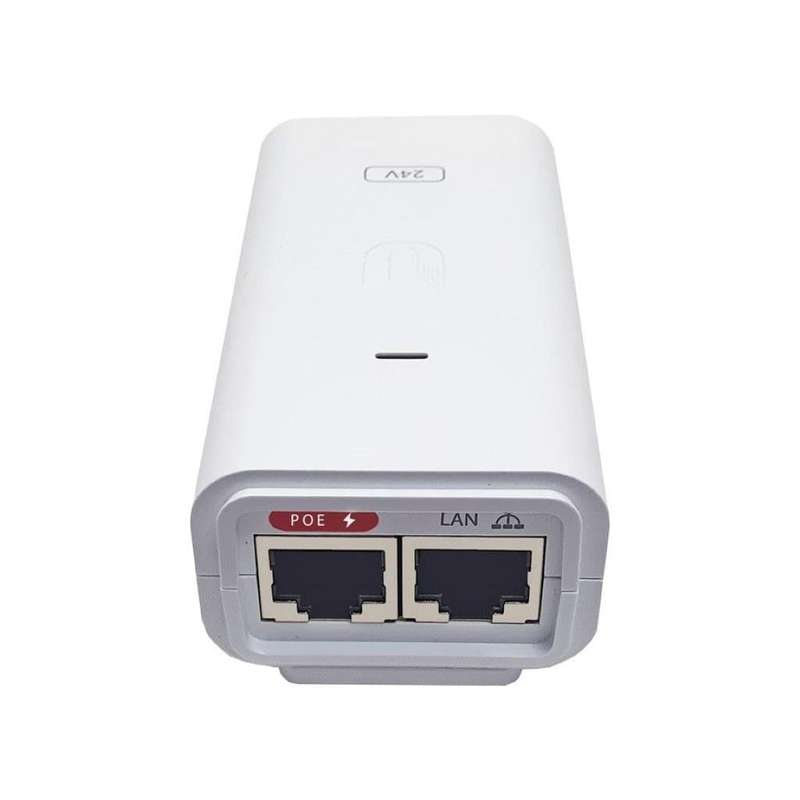

Power supply: 24VDC, 0.5A Gigabit PoE adapter
Supported voltage range: 22 to 26VDC
ESD/EMP protection: Air/Contact: ± 24kV
Wind loading: 50 N at 200 km/h (11.24 lbf at 125 mph)
Power
Ethernet: Flashing blue: Ethernet traffic detected
60GHz: Blue: Connected
OS: airOS®
Operating modes: PtP master or station
Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol
Security: WPA2 AES only
