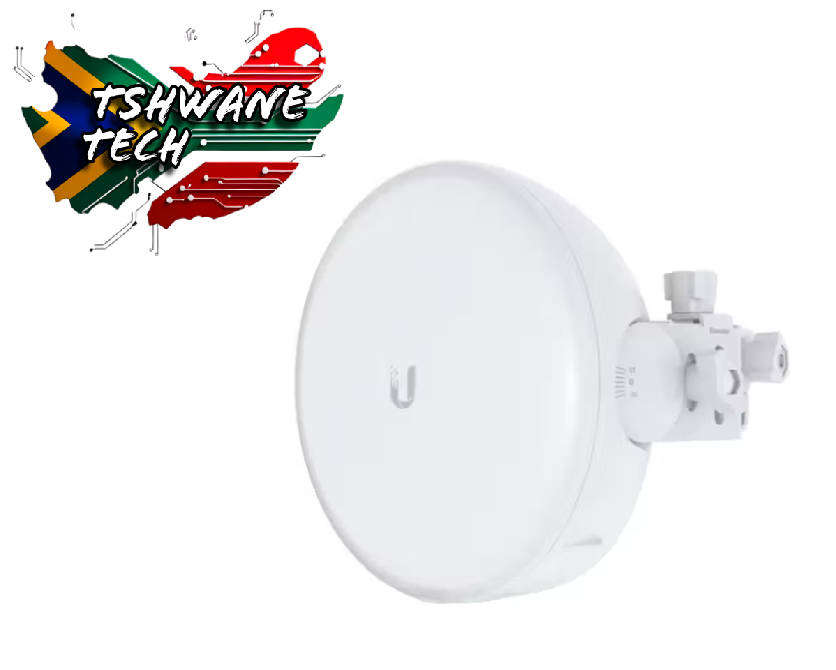

Ubiquiti GigaBeam Plus airMAX 35dBi 60GHz PtP GBE-PLUS

The GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. The GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in an outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easy to set-up, configure and manage through the UISP dashboard and UISP️ Mobile app via Bluetooth.

• Low-interference 60 GHz spectrum
• 35 dBi antenna gain with integrated reflector
• 1.5+ Gbps bidirectional throughput with low latency
• Long range, up to 1.5 km
• link.ui.com Planning Support
• Quick setup using the UISP️ app via Bluetooth

Key Features

airMAX AC 60 GHz Radio with 1.5 + Gbps Throughput, 35dBi Antenna for PtP links

Technical Specification

Processor: Quad-Core ARM® Cortex® A7
Memory: 256 MB DDR3
Networking interface: 10/100/1,000 Mbps RJ45 port
Management interfaces: Ethernet, Bluetooth
RF connections: Internal
Max. power consumption: 11W
Power method: Passive PoE (Pairs 4, 5+; 7, 8-)
Power supply: 24VDC, 0.5A Gigabit PoE adapter
Supported voltage range: 22 to 26VDC
ESD/EMP protection: Air/Contact: ± 24kV

Wind loading: 50 N at 200 km/h (11.24 lbf at 125 mph)

Power

• Flashing white: Booting up
• White: Not connected to UISP
• Blue: Connected to UISP

Ethernet: Flashing blue: Ethernet traffic detected
60GHz: Blue: Connected

OS: airOS®
Operating modes: PtP master or station
Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol
Security: WPA2 AES only
