Ubiquiti Long-Range PoE Repeater with Surge Protector UACC-LRE

Features

• Extend PoE connections up to 1 km*
• 1x GbE RJ45 port for PoE/PoE+ input**
• 1x GbE RJ45 port for passthrough PoE output
• 10kA+ surge protection
• Works reliably in extreme temperatures (-40 to 80° C)
• Please Note: *Repeaters must be placed in 100 m increments.
• Please Note: **Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.

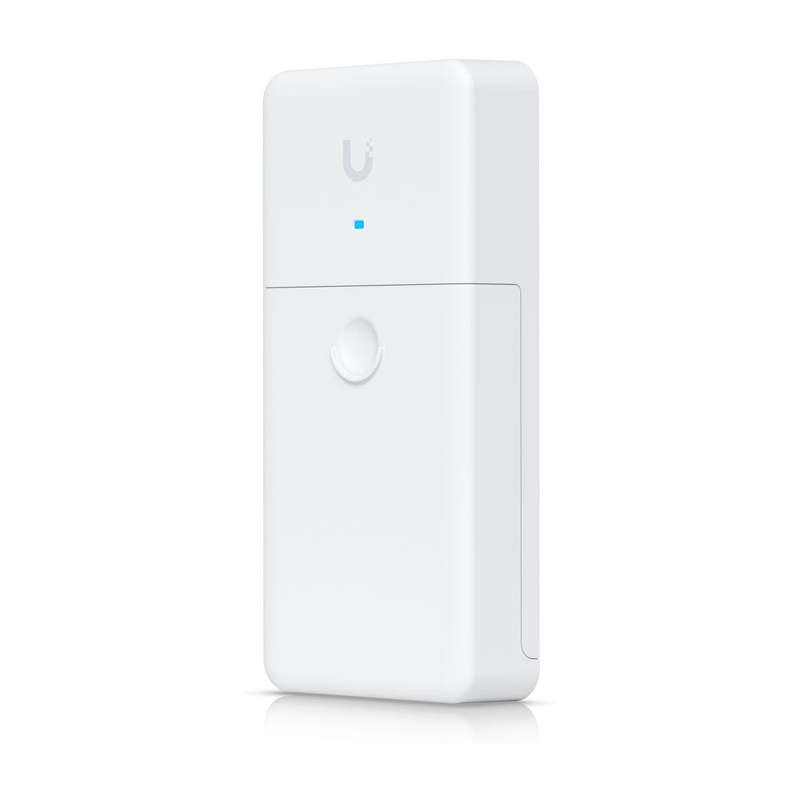

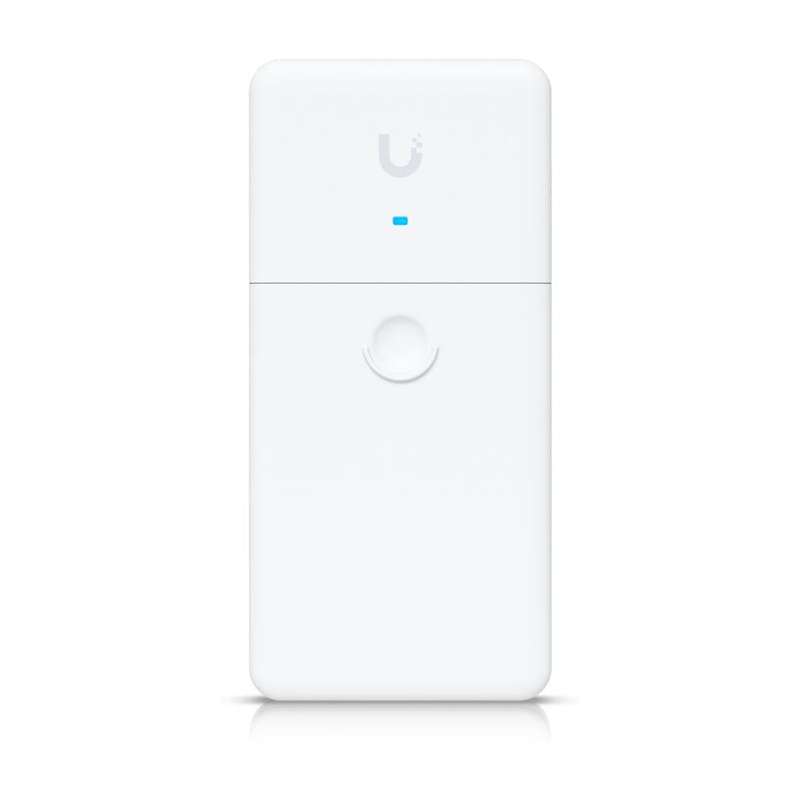

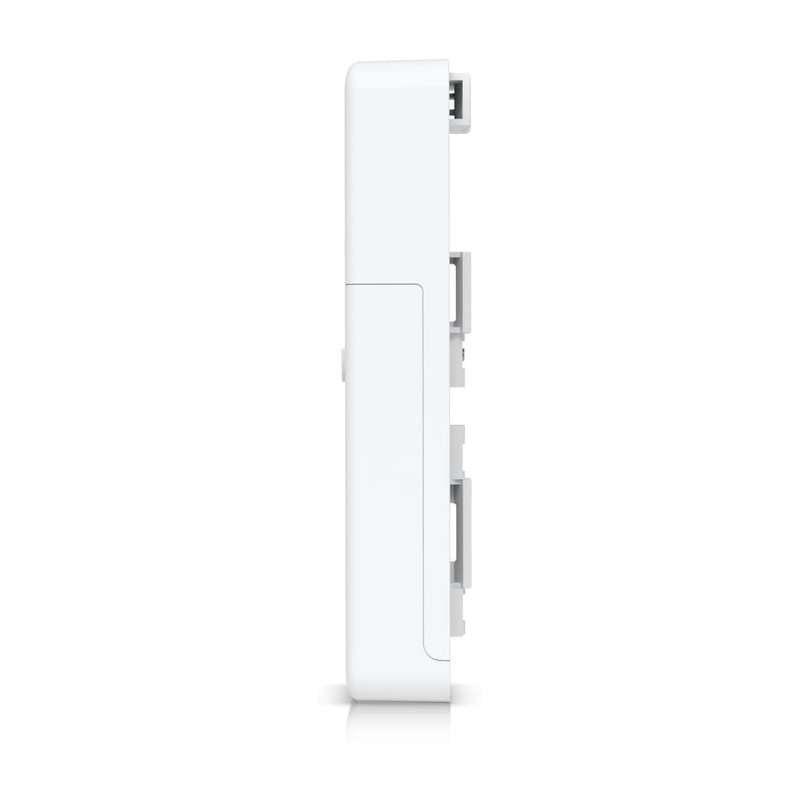

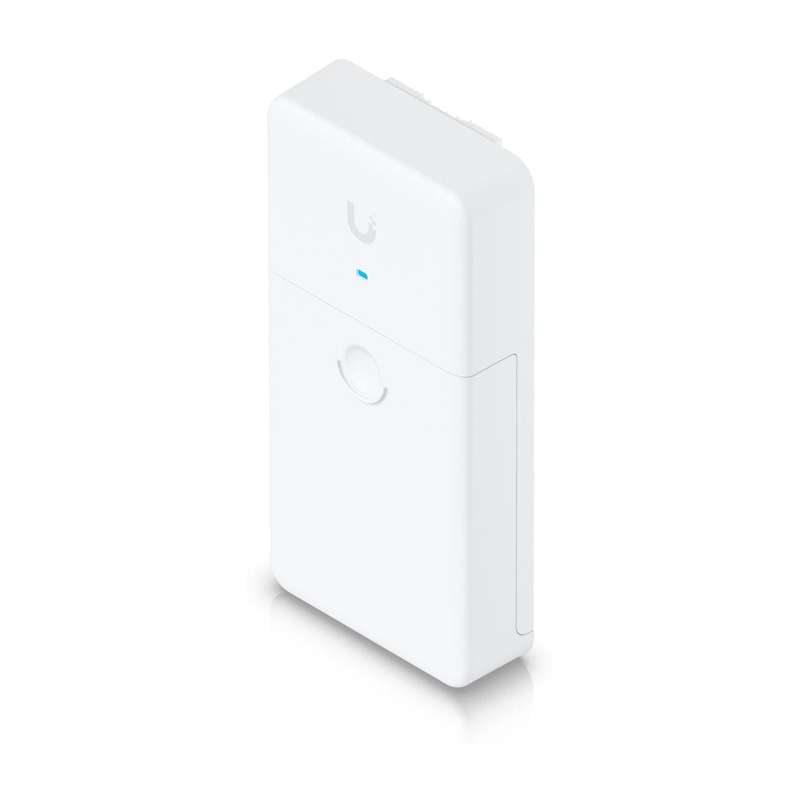

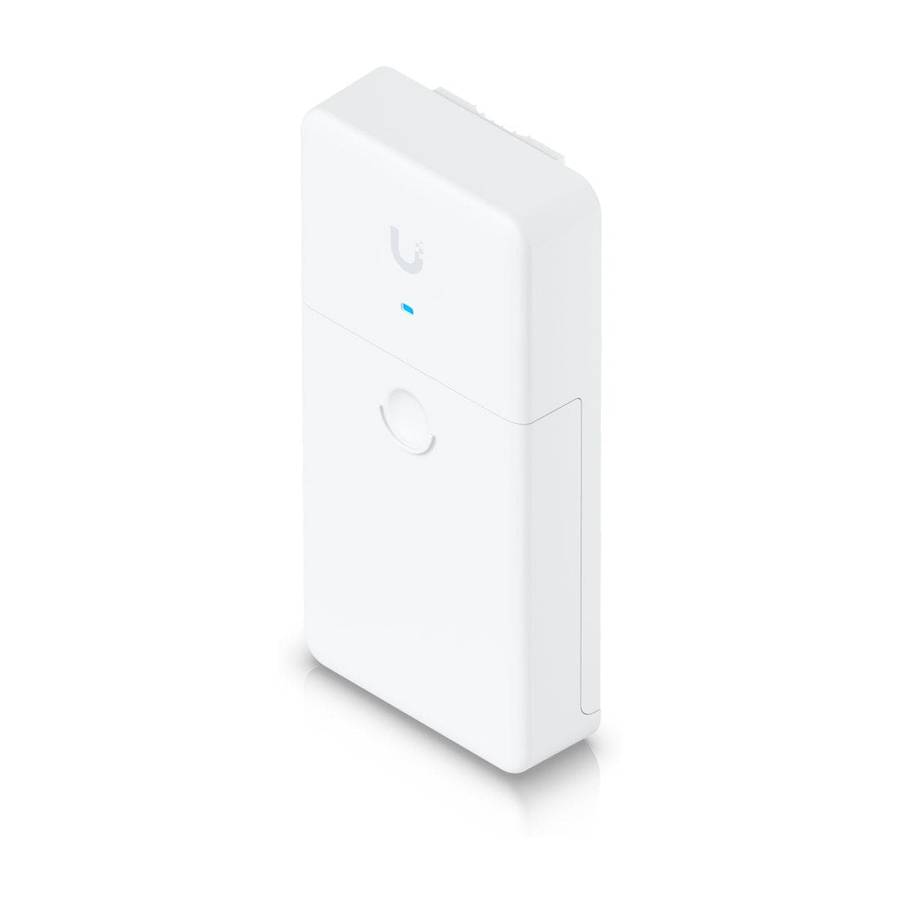

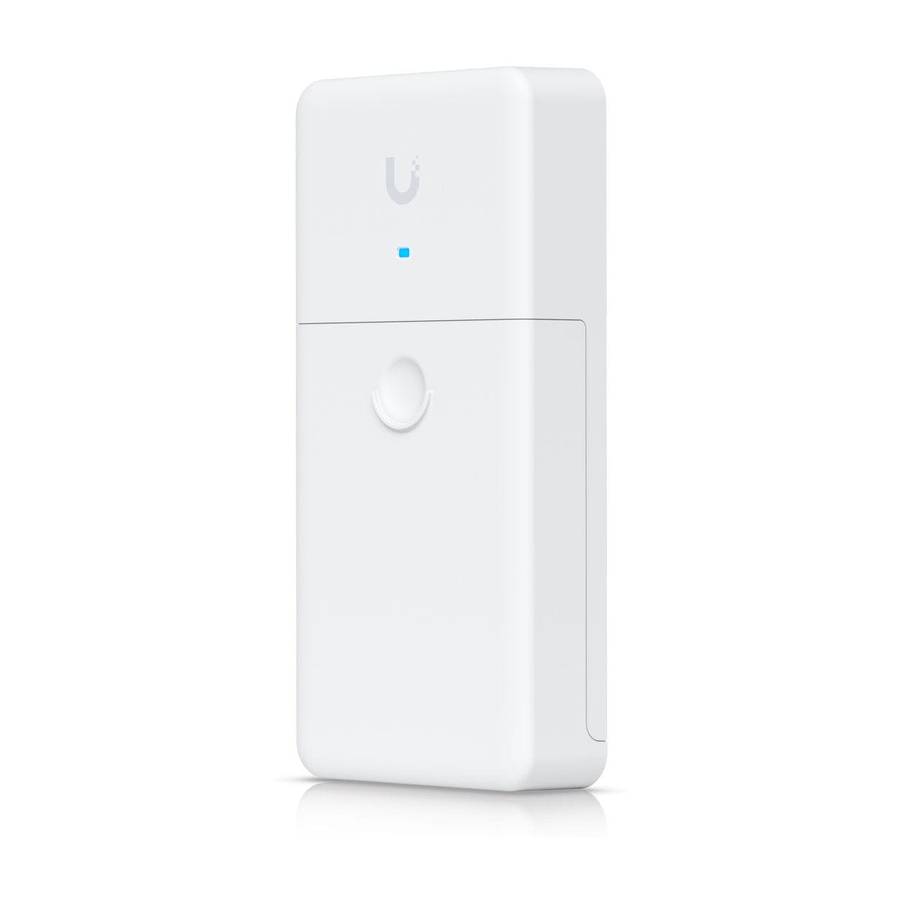

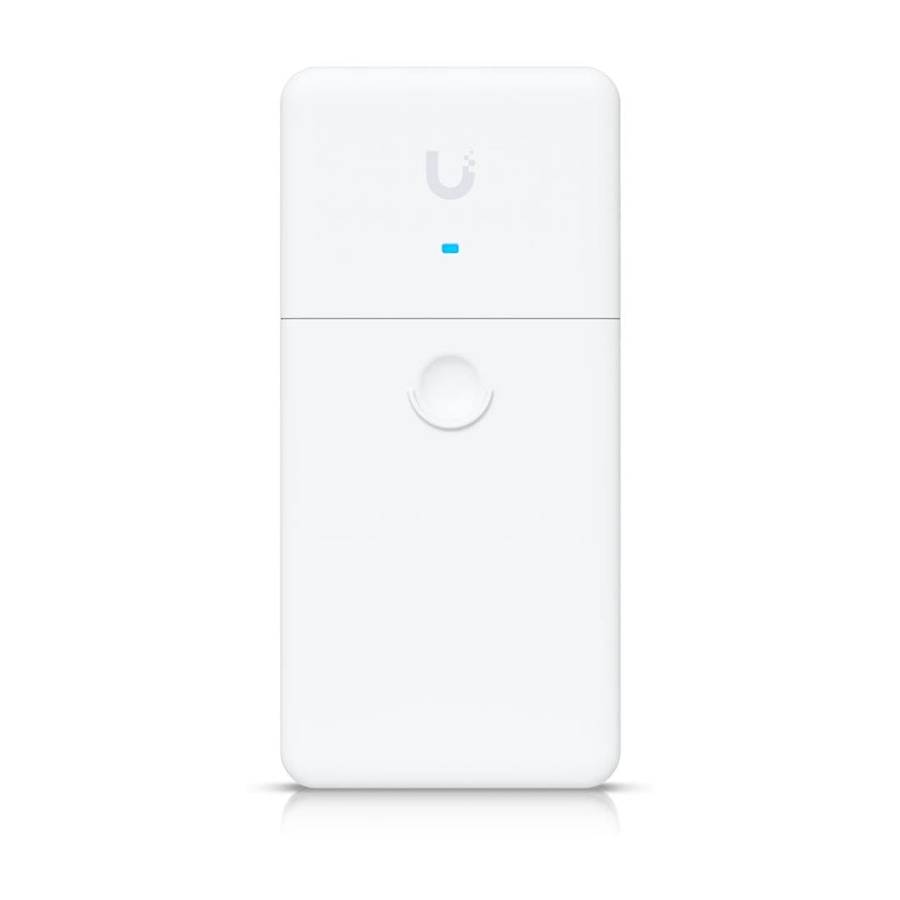

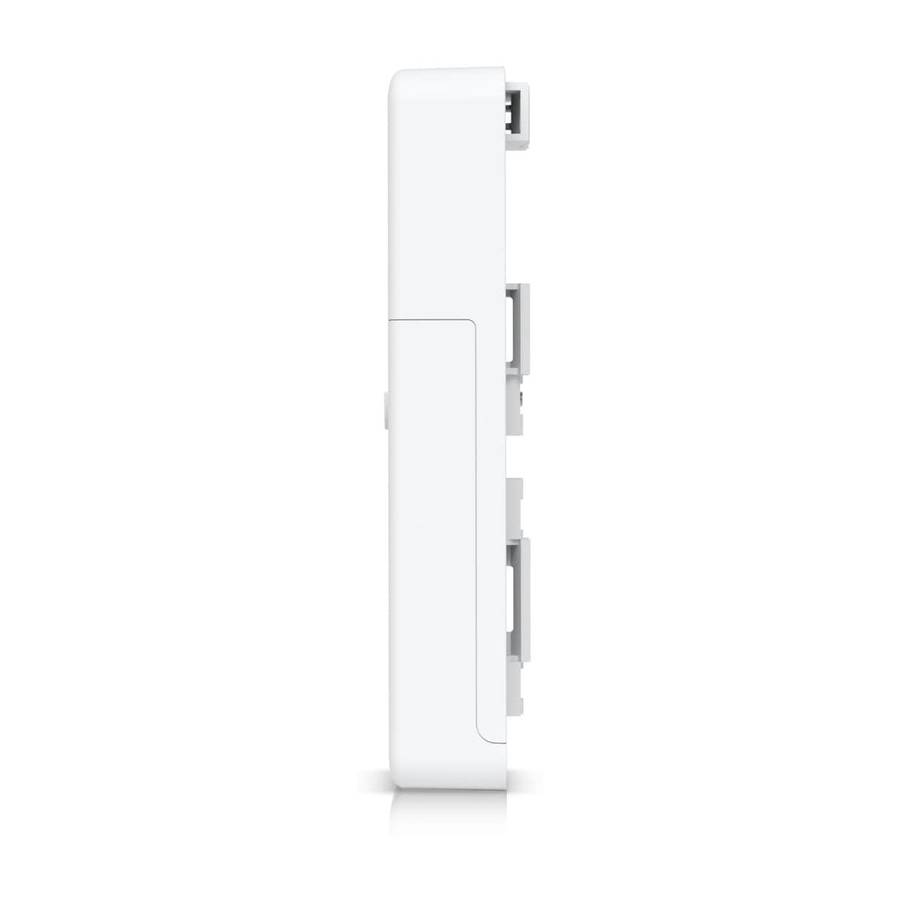

Ubiquiti's UACC-LRE is an outdoor Gigabit Ethernet adapter which establishes long-range connections between PoE switches and devices. The unit features 2x Gigabit Ethernet ports. Port one receives 802.3af/at PoE input while port two provides PoE passthrough for distances up to 1km when making use of multiple adapters. The unit also offers 10kA+ surge protection and works reliably in extreme temperatures to protect your deployment from weather and electrical damage.

• Note: This device does not support MTU's larger than 1500. If making use of jumbo frames across the device, it will not work.

Technical Specification

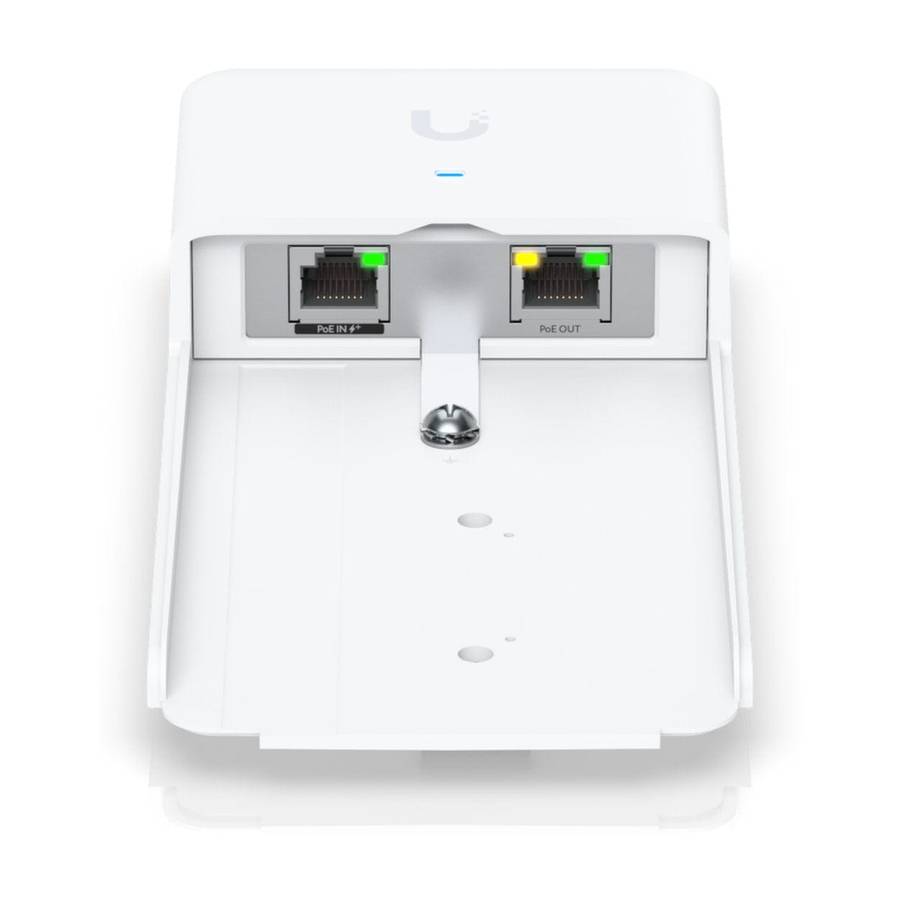

Networking interface: 2x GbE RJ45 ports

PoE interface: 1x Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)

Total non-blocking line rate: 2 Gbps

Switching capacity: 4 Gbps

Forwarding rate: 1.488 Mpps

Power method: PoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)

Power supply: UniFi PoE switch

Max. power consumption: 1.5W (Excluding PoE output)

Total available PoE: 22.5W

Voltage range PoE mode: 37—57V DC

ESD/EMP protection Air/contact: ± 30kV

DC sparkover voltage: 90V at 100V/s

Max. impulse sparkover voltage: 700V at 1kV/s

Discharge current: 10kA+

Max. MTU: 1,500 bytes

Enclosure material: UV stabilized polycarbonate

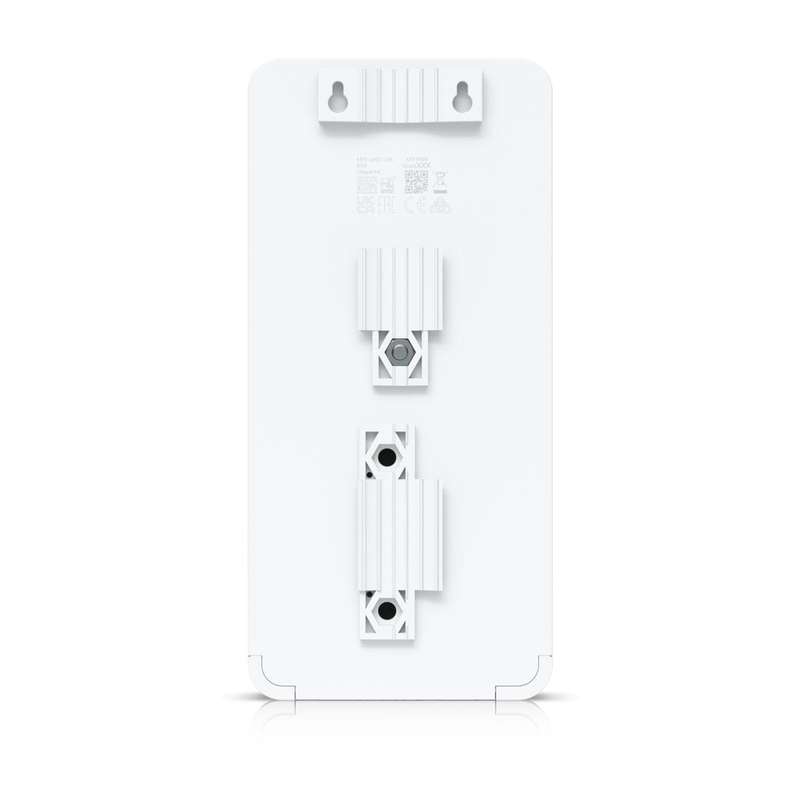

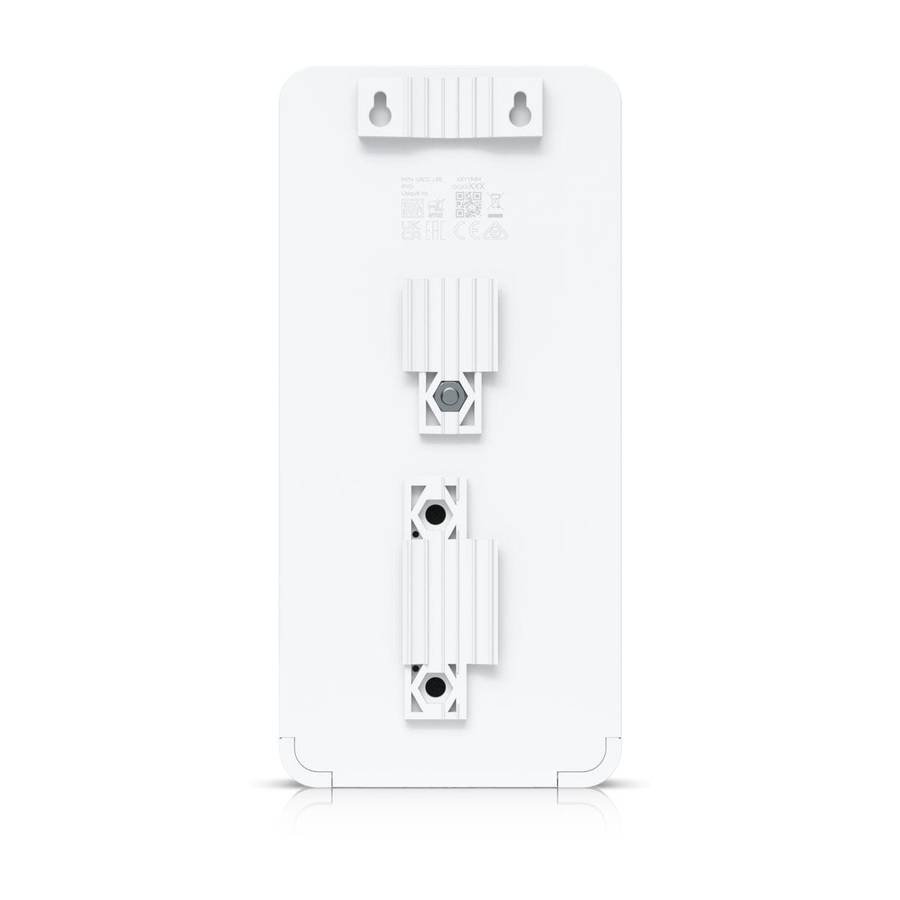

Mounting material: Stainless steel

Weatherproofing: IPX5

Weight: 350 g
