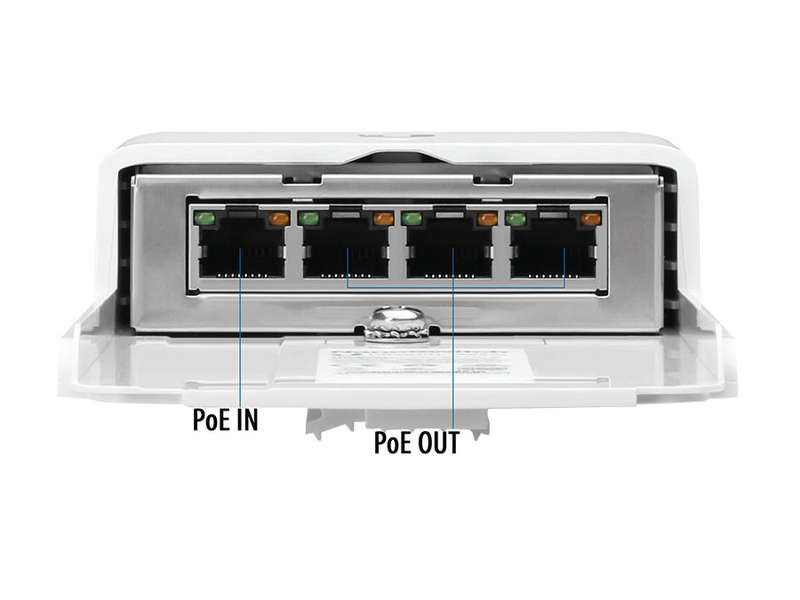

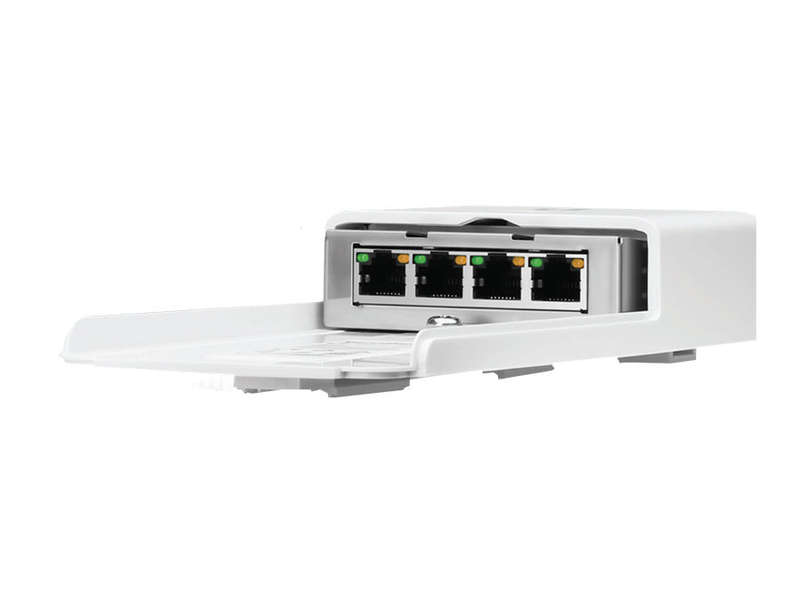

Ubiquiti's NanoSwitch is an unmanaged, outdoor, 4-port Gigabit switch with PoE passthrough. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.
IMPORTANT: The NS4 does not ship with a PSU; we recommend powering the unit up with our POE-24G PoE injector
Specifications
Enclosure Characteristics: White Polycarbonate
Processor: RTL8367N-VB
On-Board Flash Storage: 4Kbits
Total Non-Blocking Line Rate: 4Gbps
TYP. Power Consumption: 1.5W
Power Method: Passive 24V PoE-in
Supported Voltage Range: Passive 24V PoE-in
Networking Interfaces: (4) 10/100/1000 Mbps Ethernet RJ45
PoE Interfaces: Passive 24V PoE-in
Max PoE+ Wattage per Port by PSE: 24V@1A per port / Total 24V@1.5A for three ports
Passive PoE Max wattage per port: 24W per port / Total 36W for three ports
Operating Temperature: -30C ~ 70C
Operating Humidity: 5 to 95% Non-Condensing
Dimensions: 196.4 x 93.5 x 32.4mm
Weight: 269g
