UBIQUITI Networking - Cloud Keys & Gateways - Cloud Key Enterprise UDM-SE

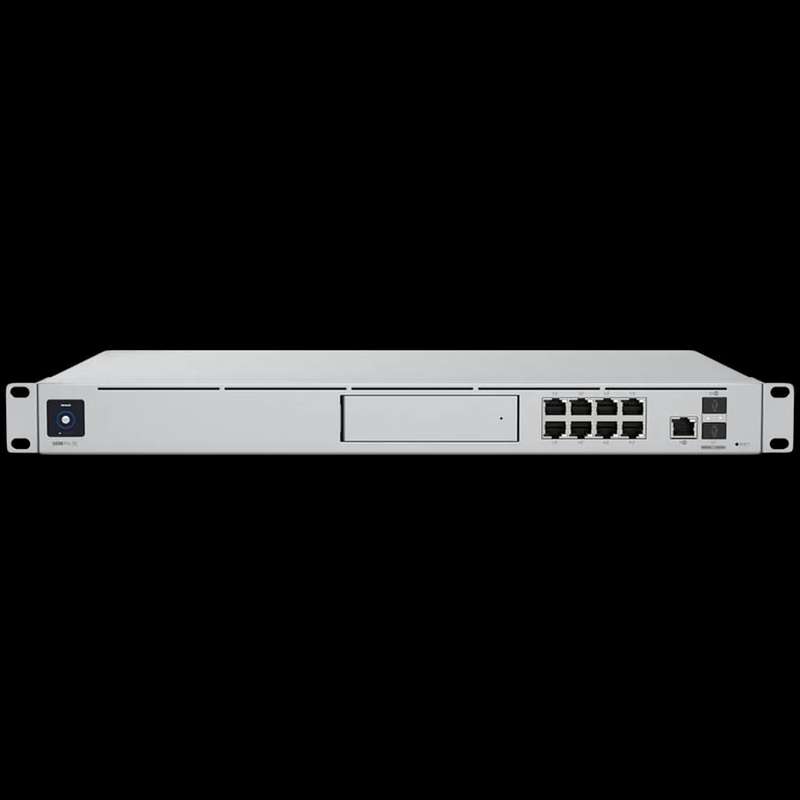

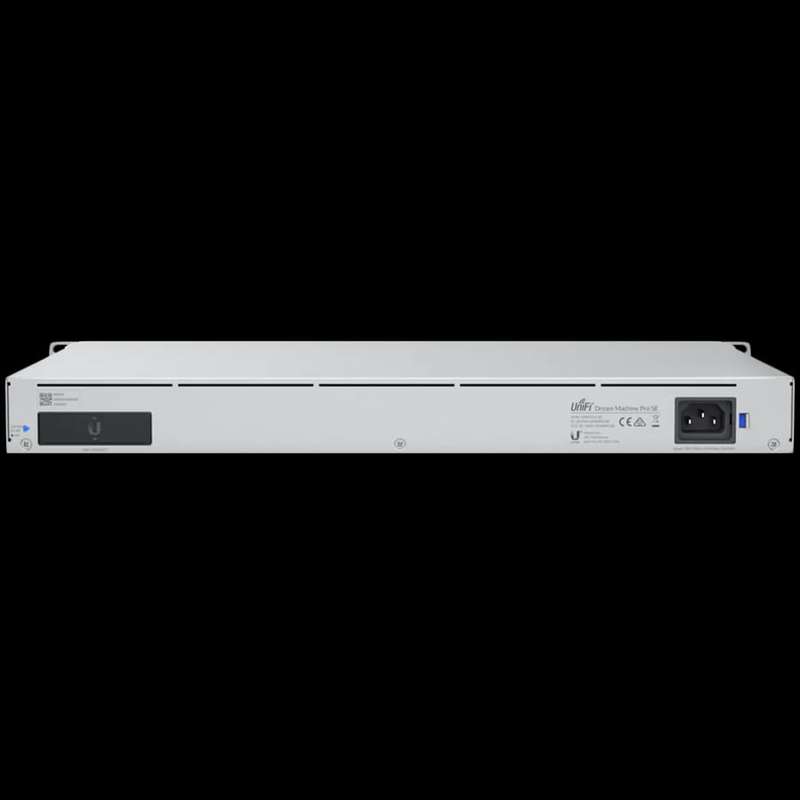

The Dream Machine Special Edition 1U Rackmount 10Gbps UniFi Multi-Application System with 3.5" HDD Expansion and 8Port PoE Switch

Router

Data Link Protocol Supports (New)  LAN + Bluetooth

CPU  ARM Cortex-A57

CPU Core Quantity  4

Internal Clock Rate  1.7 GHz

Installed Flash Memory Storage Capacity  16 GB

Storage  SSD 128 GB

LAN  8 x 10Base-T/100Base-TX/1000Base-T up to 1 Gbps

Supported Networking Compliant Standards  IEEE 802.3af
IEEE 802.3at

Router Features  Power over Ethernet (PoE)

Device Location  External

Status LED Indicators  Activity Status

Certifications  CE, FCC, IC

Built-in Devices  LCD Touchscreen Display

Included Accessories  Quick Start Guide

LAN  8 (RJ-45)

WAN  1 (RJ-45)

SFP+  2

Power Device Location  Plug-in-module

Maximum Input Frequency  60 Hz

Minimum Input Frequency  50 Hz

Maximum Input Voltage  240 V

Minimum Input Voltage  100 V

Maximum Power Consumption  240 W

Width (mm)  285.6 mm

Height (mm)  43.7 mm

Depth (mm)  442 mm

Nominal Weight  4.95 kg

External Color  Gray

Maximum Operating Ambient Temperature  40 °C

Maximum Operating Humidity  95 %

Minimum Operating Ambient Temperature  -10 °C

Minimum Operating Humidity  5 %

Warranty Products Returnable  Yes

Warranty Term (month)  12 month(s)

Warranty Validation Criteria  Serial Number

Warranty Term Notes  24 months - for EU

Pack Weight Brutto (kg)  40 °C

Pack Weight Netto (kg)  5 kg

Pieces in pack  1

Box Weight Brutto (kg)  1 kg

Retail Packaging Net Weight Carton  0 kg

Retail Packaging Net Weight Plastic  0 kg

Packs in Box  1

Package Type  Box
