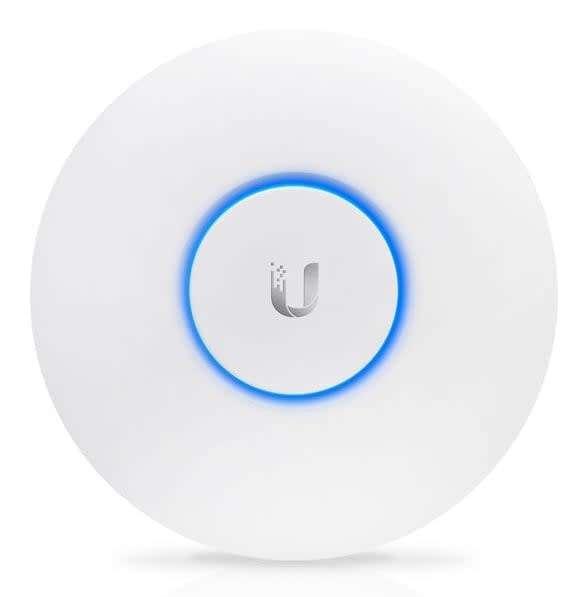

Ubiquiti Networks UAP-AC-LR access point
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Hardware
Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
Power supply UniFi PoE switch
24V, 0.5A Gigabit PoE adapter*
*5-packs do not come with PoE adapters.
Max. power consumption 6.5W
Max.TX power
2 GHz
5 GHz
6 GHz
24 dBm
22 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
3 x 3
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz
450 Mbps
867 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz
3 dBi
3 dBi
Button Factory reset

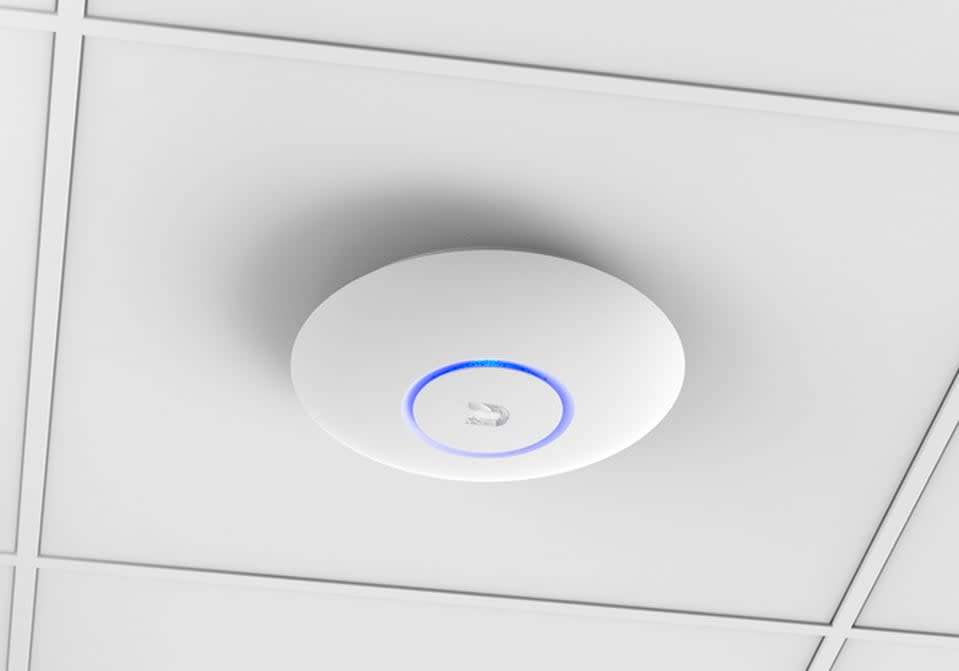

Mounting Wall, ceiling (Included)
Operating temperature -10 to 70° C (14 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11 a/b/g/n/r/k/v/ac
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
WMM Voice, video, best effort, and background
Concurrent clients 250+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
