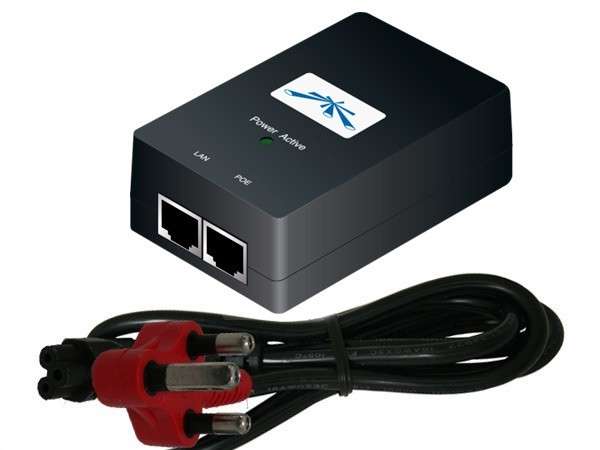

Ubiquiti PoE Fast Ethernet 24V SA Plug - Ubiquiti

In Stock at supplier. DISPATCHED OR COLLECTION available Same Day if ordered before 12PM

Features:

The POE-24F by Ubiquiti is designed for BaseStation Equipment and features earth grounding/ESD protection.

The POE-24F has a LAN activity indicator and a remote reset capability that supports AirMax Bullet, Rocket, Nano and Pico

IMPORTANT:
POE-24F does not work with the AIRGW products (Ubiquiti AirGateways)

Specifications:

- Output Voltage: 24VDC @ 0.5A
- Input Voltage: 90-260VAC @ 47-63Hz
- Input Current: 0.3A @ 120VAC, 0.2A @230VAC
- Inrush Current: <15A peak @120VAC, <30A peak
- AC Connector: IEC-320 C6
- 80% Current Indicator: Power LED will change colour
- Surge Protection: Common Mode
- Data IN / POE: RJ45 Shielded Socket
- Clamping Protection: 11V Data, 77.5V Power
- Max. Surge Discharge: 1200A (8/20uS) Power
- Peak Pulse Current: 36A (10/1000uS Data)
- Shunt Capacitance: <5pf data
- Response Time <1nS
- Efficiency: 70+%
- Output Ripple: 1% Max
- Switching Frequency: 200kHz
- Line Regulation: +/- 0.5%
- Load Regulation: +/- 1%
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C

- Size (LxWxH): 85 x 55 x 33 mm

- Weight: 4 oz
