Brand New & Sealed with Manufacturer Warranty

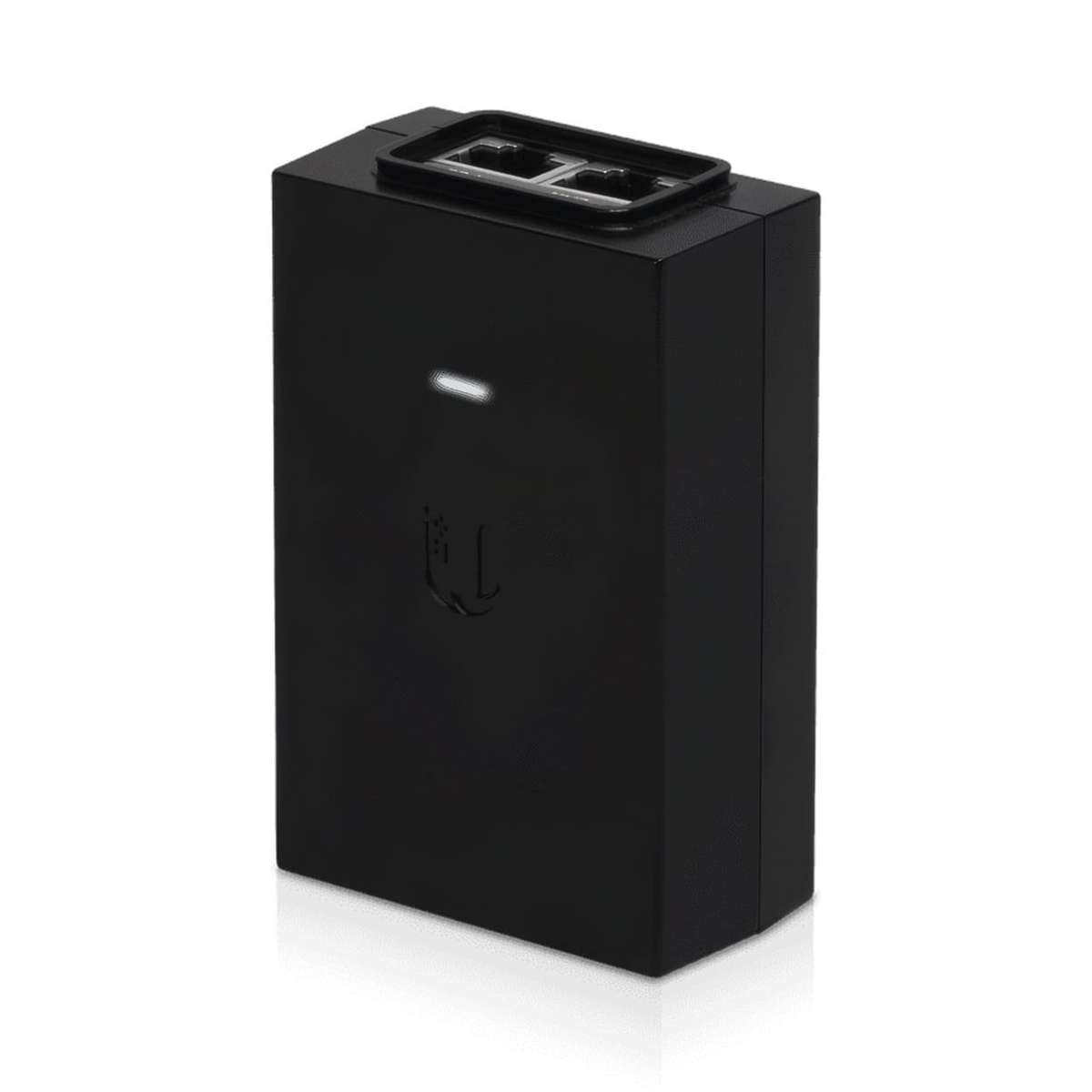

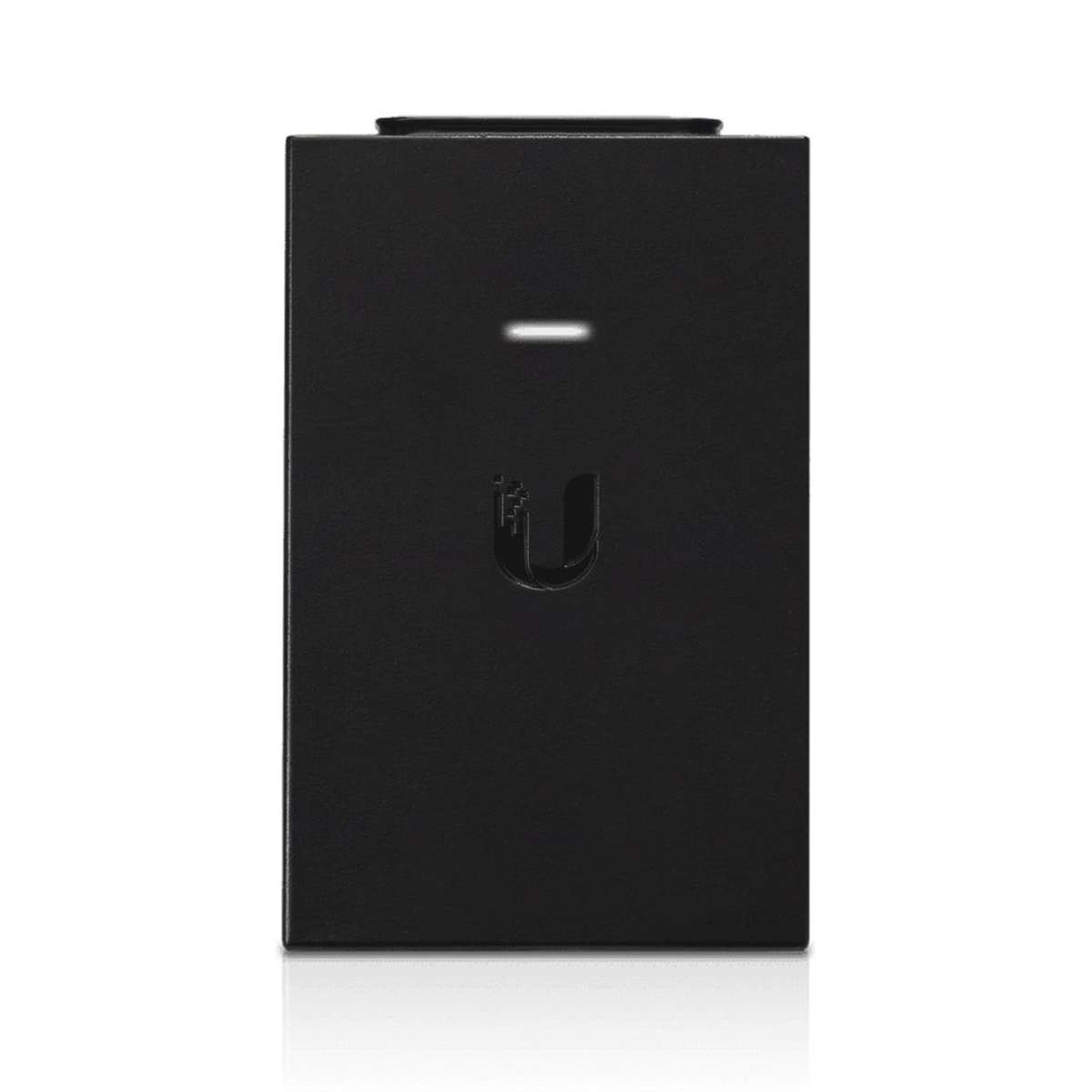

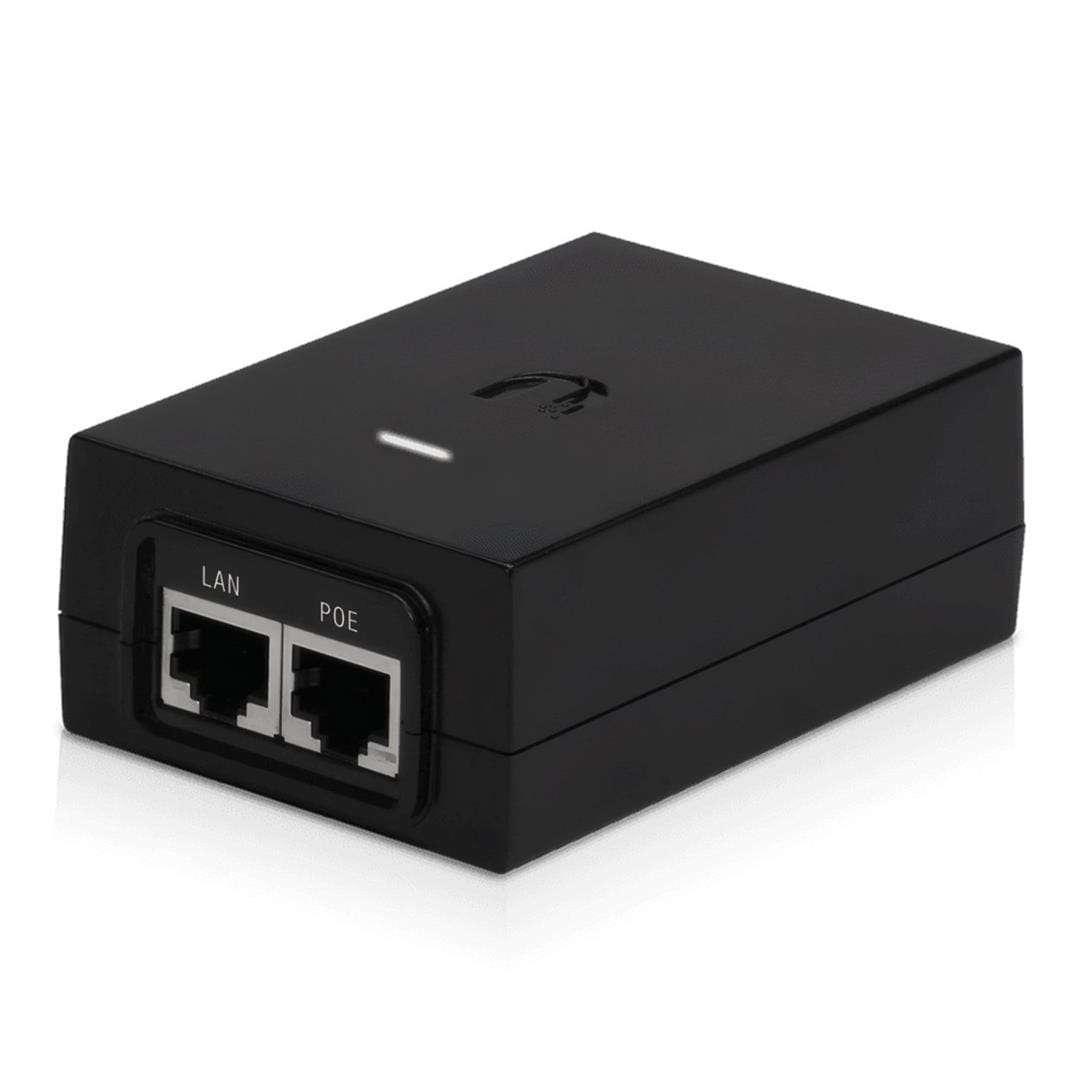

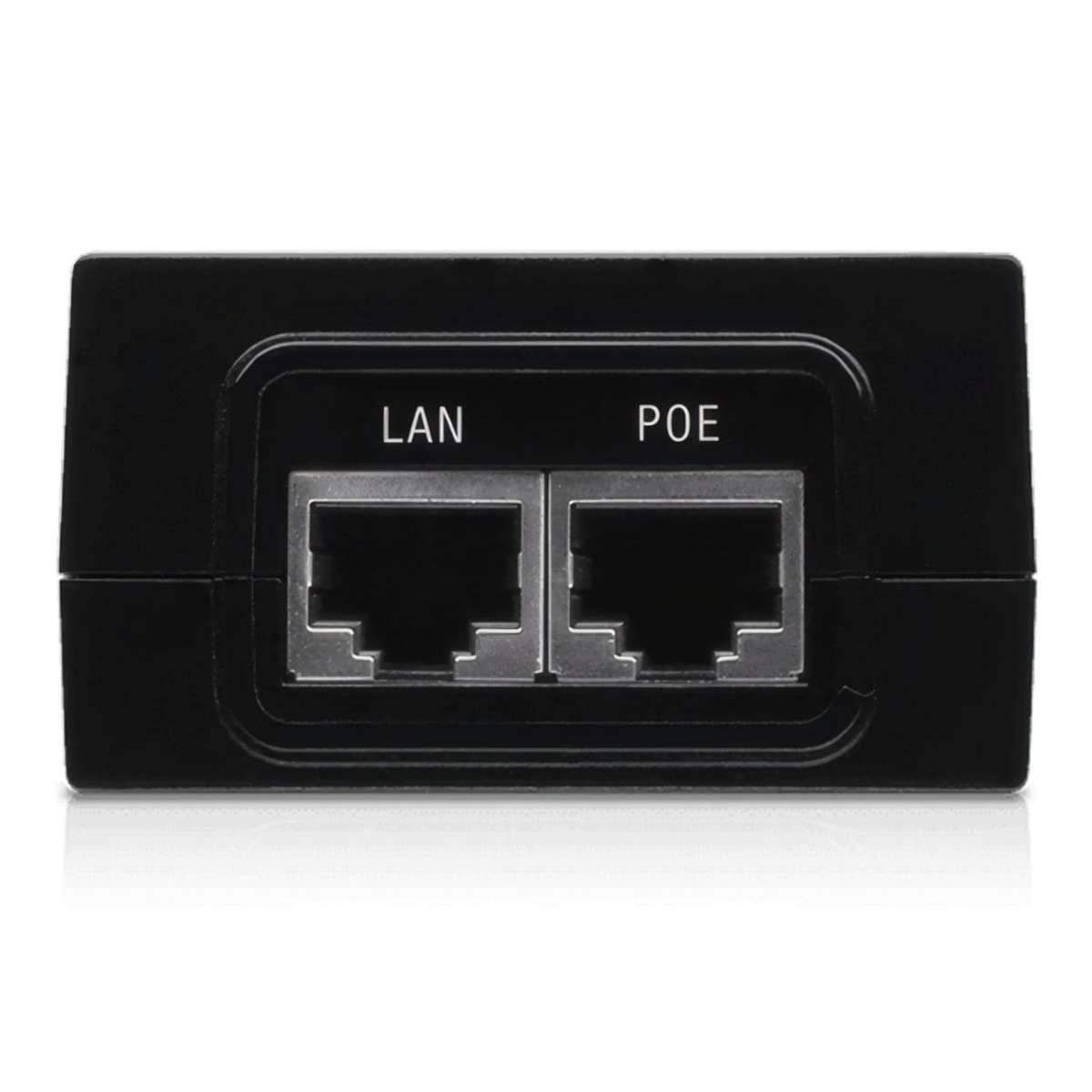

Ubiquiti PoE Injector 50V 60W airFiber
Features
Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
Seamless airGateway Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.
Specifications
| Specification | Details |
|---|---|
| Model | POE-50-60W |
| Dimensions | 101 x 60 x 33 mm (3.98 x 2.36 x 1.30") |
| Weight | 192 g (6.77 oz) |
| Output Voltage | 50V DC - 1.2A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100—240V AC - 50/60Hz |
| Input Current | 1.3A - 120V AC, 0.75A - 230V AC |
| Inrush Current | <100A peak - 120V AC, <200A peak - 230V AC |
| Efficiency | 85+% |
| Output Ripple | 1% max. |
| Switching Frequency | 65 kHz |
| Line Regulation | 3% |
| Load Regulation | 5% |
| 2-Pair Powering | No |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max. Surge Discharge | 1500A (8/20 µs) power |
| Peak Pulse Current | 36A (10/1000 µs) data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Ambient Operating Humidity | 35 to 90% noncondensing |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
