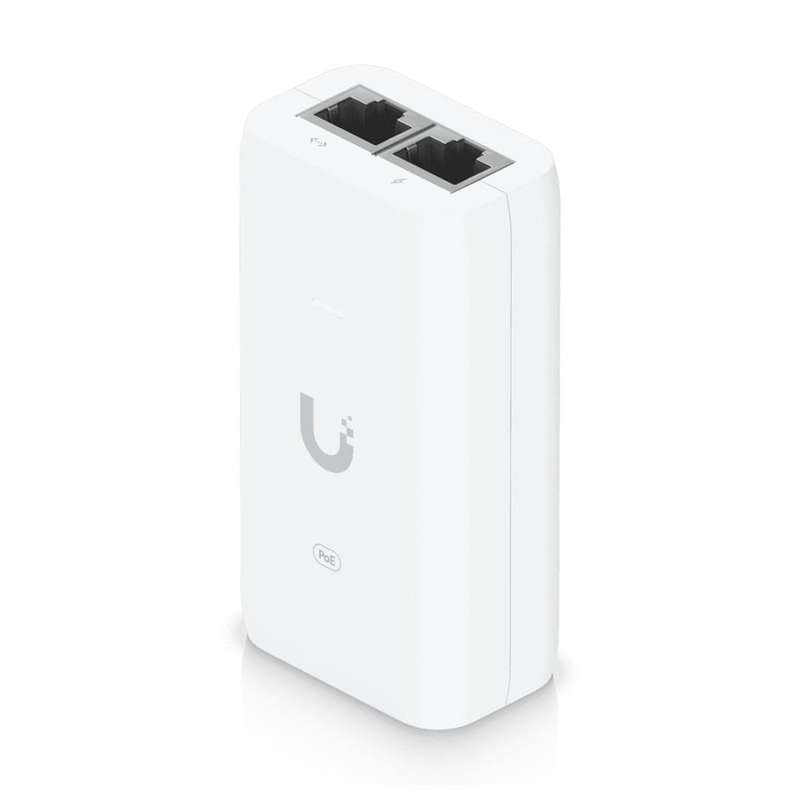

Ubiquiti U-POE 48V 15W Gigabit PoE Adapter with No Cable

An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Features

• Delivers up to 15W of PoE
• Surge, peak pulse, and overcurrent protection
• Contains RJ45 data input, AC cable with earth ground, and PoE output

Technical Specification

LAN activity indicator: No

Gigabit LAN port: Yes

Remote reset capability: No

Reset button: No

Rated voltage: 100—240V AC - 50/60Hz

Output voltage: 48V DC - 0.32A

Input current: 500mA max.

Inrush current: <100A peak at 25°C

Efficiency: 84.25+%

Output ripple: 200mV p-p

Switching frequency: 65 kHz

Line regulation: 3%

Load regulation: 5%

2-pair powering: Pins 4, 5 (+) and 7, 8 (-)

4-pair powering: No

AC connector: IEC-320 C6 (Please note: Power cable not included)

Data In / PoE: RJ45 shielded socket

Surge protection: Difference and common mode

Clamping protection: 11V data, 60V power

Max. surge discharge: 1500A (8/20 s) power

Peak pulse current: 36A (10/1000 s) data

Shunt capacitance: <5 pF data

Response time: <1 ns

Dimensions: 86 x 46 x 33 mm

Weight: 100 g

Compatibility

• U6-PLUS
• U6-IW
• U6-Mesh
• U6-Pro
• U6-Lite
• UAP-AC-IW
• UTP-Touch
• UVC-G5-Dome-Ultra
• UVC-G5-Turret-Ultra
• UVC-G5-Pro
• UVC-G5-Flex
• UVC-G5-Bullet
• UVC-G5-Dome
• UVC-AI-Pro
• UVC-AI-DSLR
• UVC-AI-Bullet
• UVC-AI-360
• UVC-AI-Theta-Pro
• UVC-AI-Theta
• UVC-AI-Theta-Hub
• UVC-G4 Doorbell Pro PoE Kit
• UVC-G4-DOME
• UVC-G4-Bullet
• UVC-G4-Pro
• UVC-G3-FLEX
