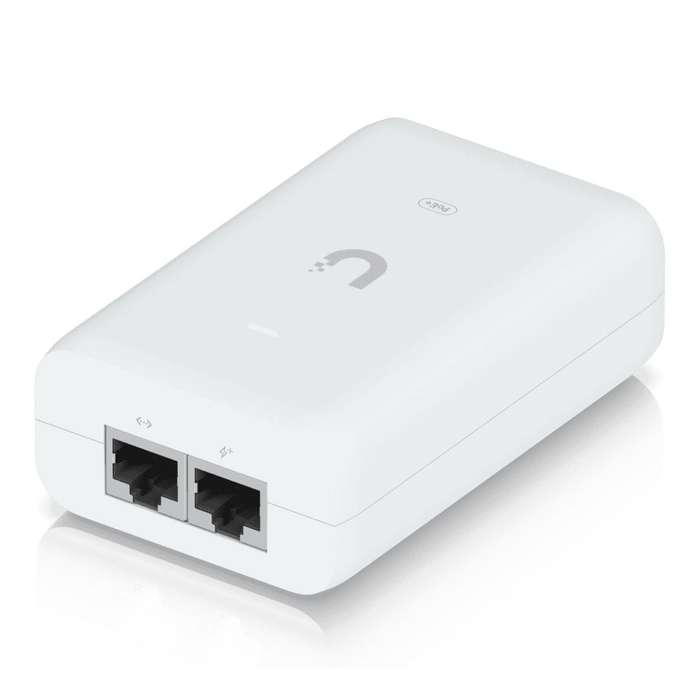

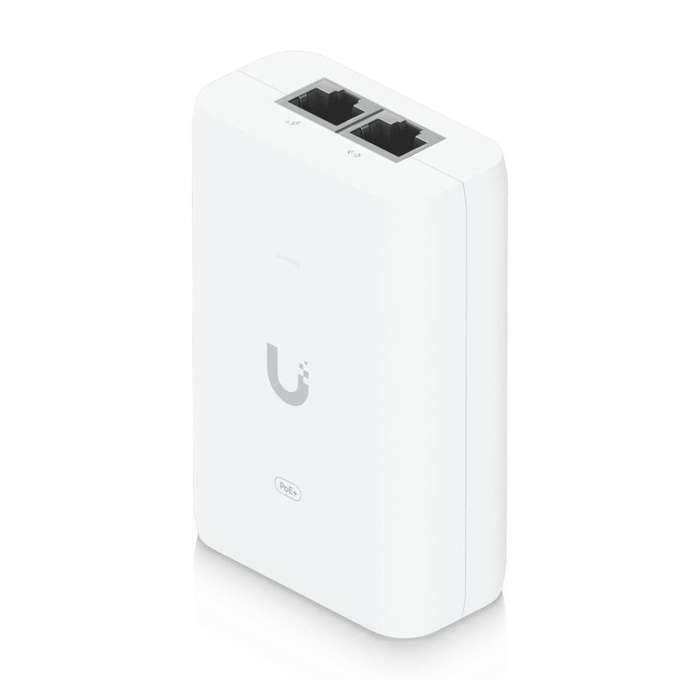

Ubiquiti U-POE+ 48V 30W Gigabit PoE Adapter with No Cable

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.

Features

• Delivers up to 30W of PoE+
• Surge, peak pulse, and overcurrent protection
• Contains RJ45 data input, AC cable with earth ground, and PoE+ output

Technical Specification

LAN activity indicator: No

Gigabit LAN port: Yes

Remote reset capability: No

Reset button: No

Rated voltage: 100—240V AC - 50/60Hz

Output voltage: 48V DC - 0.65A

Input current: 0.75A max.

Inrush current: <100A peak at 26°C

Efficiency: 87%

Output ripple: 1% max.

Switching frequency: 70 kHz max.

Line regulation: 3%

Load regulation: 5%

2-pair powering: Pins 4, 5 (+) and 7, 8 (-)

4-pair powering: No

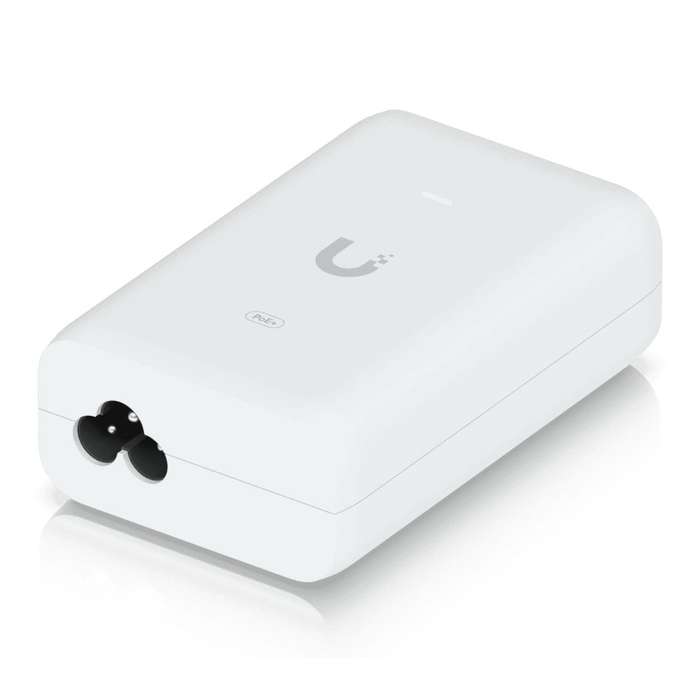

AC connector: IEC-320 C6 (Please note: Power cable not included)

Data In / PoE: RJ45 shielded socket

Surge protection: Difference and common mode

Clamping protection: 11V data, 60V power

Max. surge discharge: 1500A (8/20 s) power

Peak pulse current: 36A (10/1000 s) data

Shunt capacitance: <5 pF data

Response time: <1 ns

Dimensions: 93 x 62 x 35 mm

Weight: 156 g

Compatibility

• U6-LR
• UVC-G5-PTZ
• U6-IW
• UVC-AI-DSLR
• UVC-AI-Pro
• UDB-Pro
• UTP-G3-Touch-Wall
• UTP-TouchMax
• UA-Ultra
