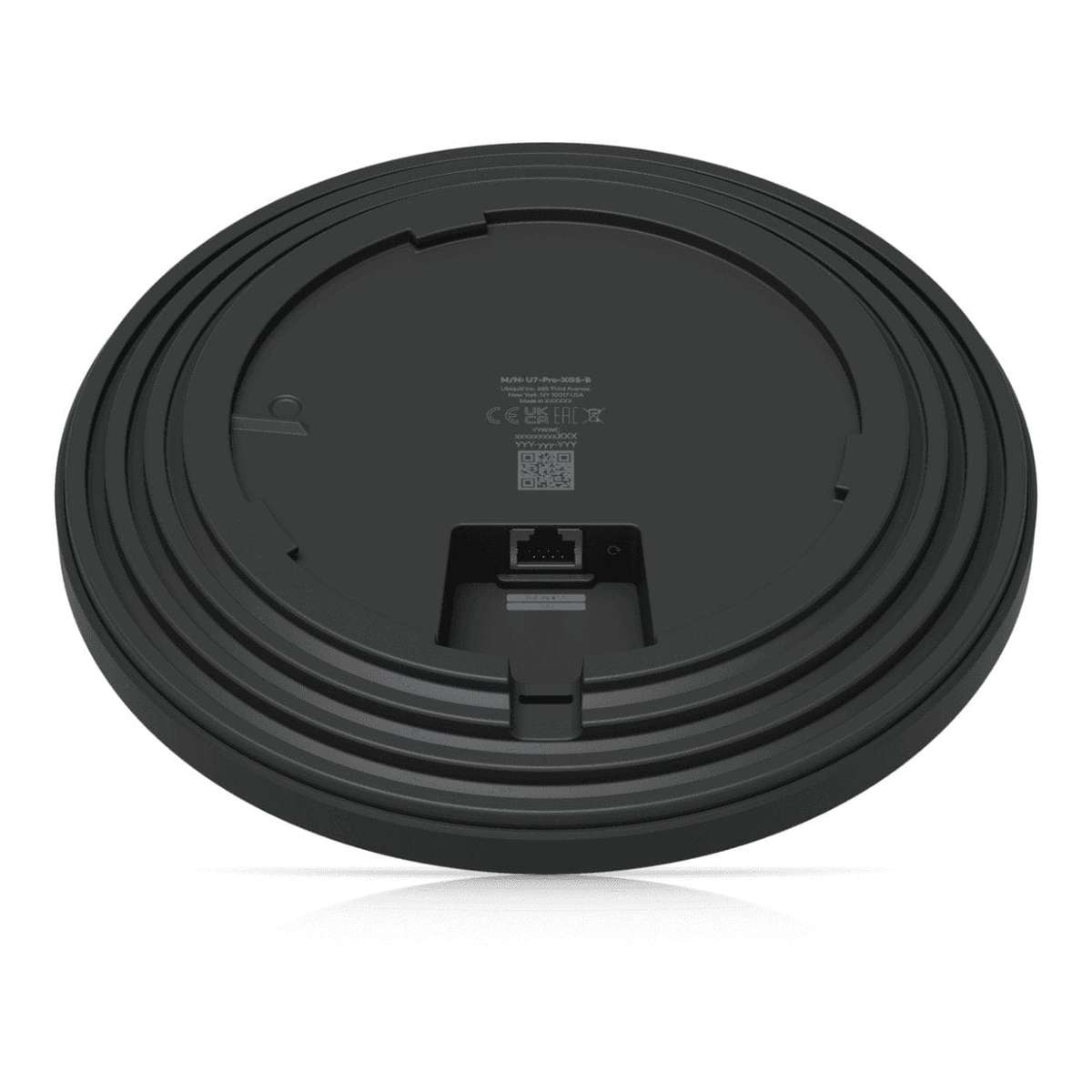

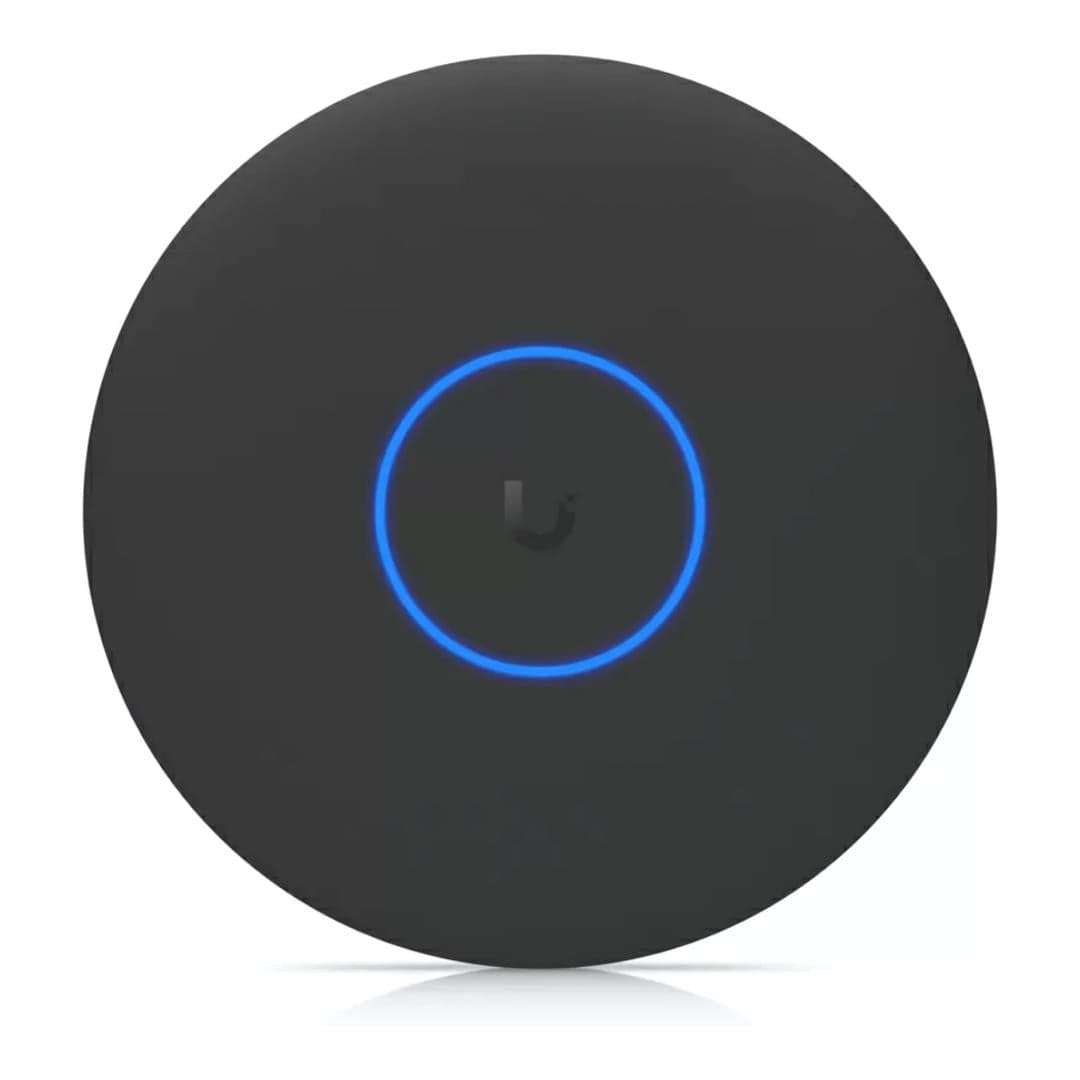

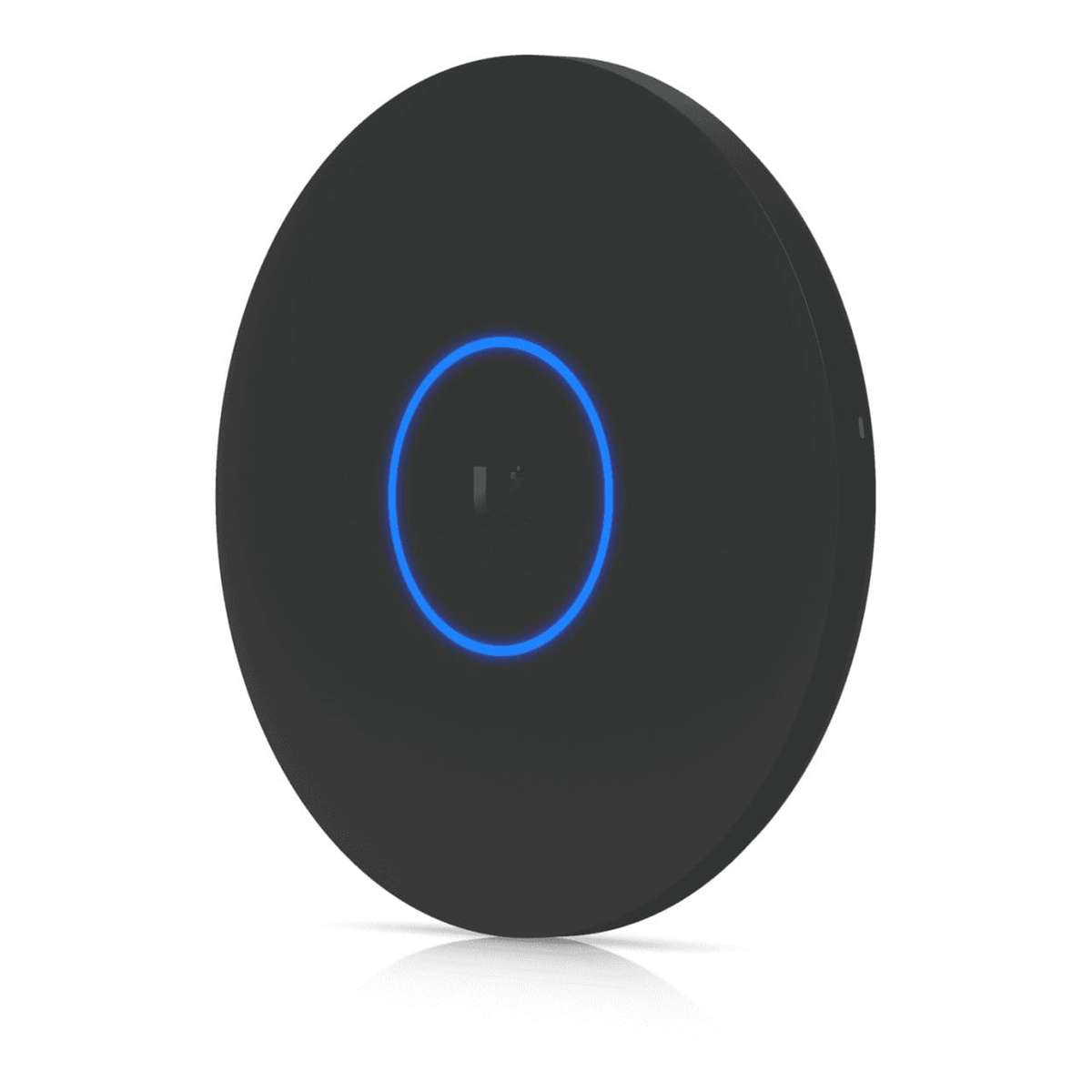

Ubiquiti U7 Pro XGS PoE Wireless Access Point U7-Pro-XGS-B

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.

Features:

• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management (RRM)
• Zero-Wait DFS
• Advanced Radio Management
• Real-Time Spectral Analysis
• Passpoint (Hotspot 2.0)
• Captive Hotspot Portal
• Custom Branding Landing Page
• Voucher Authentication
• Payment-Based Authentication
• External Portal Server Support
• Password Authentication
• Guest Network Isolation
• Private Pre-Shared Key (PPSK)
• WiFi Speed Limiting
• Client Device Isolation
• WiFi Schedules
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-assigned VLAN

Technical Specifications:

Dimensions
Ø215 x 32.5 mm (Ø8.5 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
8

Coverage Area
160 m² (1,750 ft²)

Max. Client Count
500+

Uplink
10 GbE

Mounting
Ceiling, Wall (Lite Mount Included)

Power Method
PoE++

Performance

MIMO Configuration
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain
6 GHz: 6 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi

Max. TX Power
6 GHz: 24 dBm
5 GHz: 29 dBm
2.4 GHz: 23 dBm

Max. BSSIDs
8 per radio

Supported Data Rates

• 802.11be (WiFi 7):
• 6 GHz: 7.3 Mbps — 5.8 Gbps (MCS0—MCS13, NSS1/2, EHT 20/40/80/160/320)
• 5 GHz: 7.3 Mbps — 8.6 Gbps (MCS0—MCS13, NSS1—4, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6):
• 7.3 Mbps — 4.8 Gbps (MCS0—MCS11, NSS1—4, HE 20/40/80/160)
• 802.11ac (WiFi 5):
• 6.5 Mbps — 3.4 Gbps (MCS0—MCS9, NSS1—4, VHT 20/40/80/160)
• 802.11n:
• 6.5 Mbps — 600 Mbps (MCS0—MCS31, HT 20/40)

Hardware

Max. Power Consumption: 29W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 10 GbE RJ45 port
Weight: 800 g (1.8 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
LEDs: System (White/Blue)
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
NDAA Compliant: Yes
Certifications: CE, FCC, IC

Operating Frequency

• US/CA:
  2400—2472 MHz
  U-NII-1: 5150—5250 MHz
  U-NII-2A: 5250—5350 MHz
  U-NII-2C: 5470—5725 MHz
  U-NII-3: 5725—5850 MHz
  U-NII-5—8: 5925—7125 MHz

• Worldwide:
  2400—2483.5 MHz
  5150—5725 MHz
  5925—7125 MHz

Environmental Ratings
Operating Temperature: -30 to 40°C (-22 to 104°F)
Operating Humidity: 5—95% noncondensing

Software

Application Requirements
UniFi Network Version 9.0.114 and later (U7 Pro XGS - White)
UniFi Network Version 9.1.120 and later (U7 Pro XGS - Black)
